SKYSCAN 1275
Ultimate Ease-of-Use
Highlights
SKYSCAN 1275 – 3D XRM for Everyone

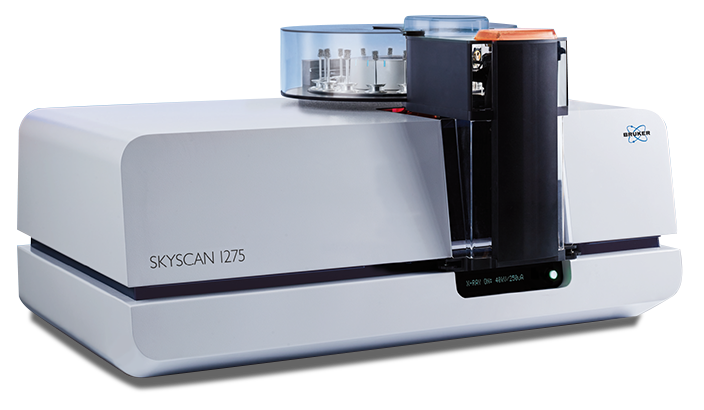

The desktop SKYSCAN 1275 is a real 3D X-ray microscopy power pack, designed for fast scanning of a wide range of samples. Thanks to the compact geometry and fast flat-panel detector the time to result can be as short as a few minutes. Just ideal for QC and production monitoring.

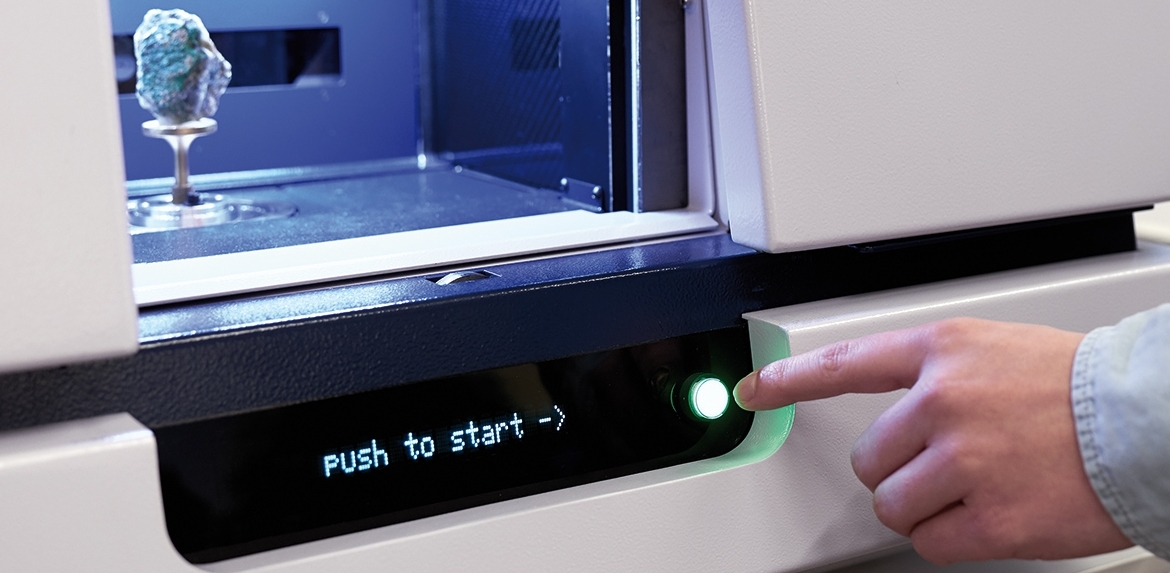

SKYSCAN 1275 comes furthermore with a high level of automation thus providing superior ease-of-use. Simply pushing the button at the control panel starts an auto-sequence of a fast scan, followed by reconstruction and volume rendering. All executed while the next sample is already being scanned.
The optional 16-position sample changer even allows for unattended high throughput scanning.
SKYSCAN 1275 is complemented by 3D.SUITE. This extensive software suite covers GPU-accelerated reconstruction, 2D/ 3D morphological analysis, as well as surface and volume rendering visualization.
Market Gallery
Additive Manufacturing
Medical Devices
Energy Storage / Batteries
Geological/ Petrochemical

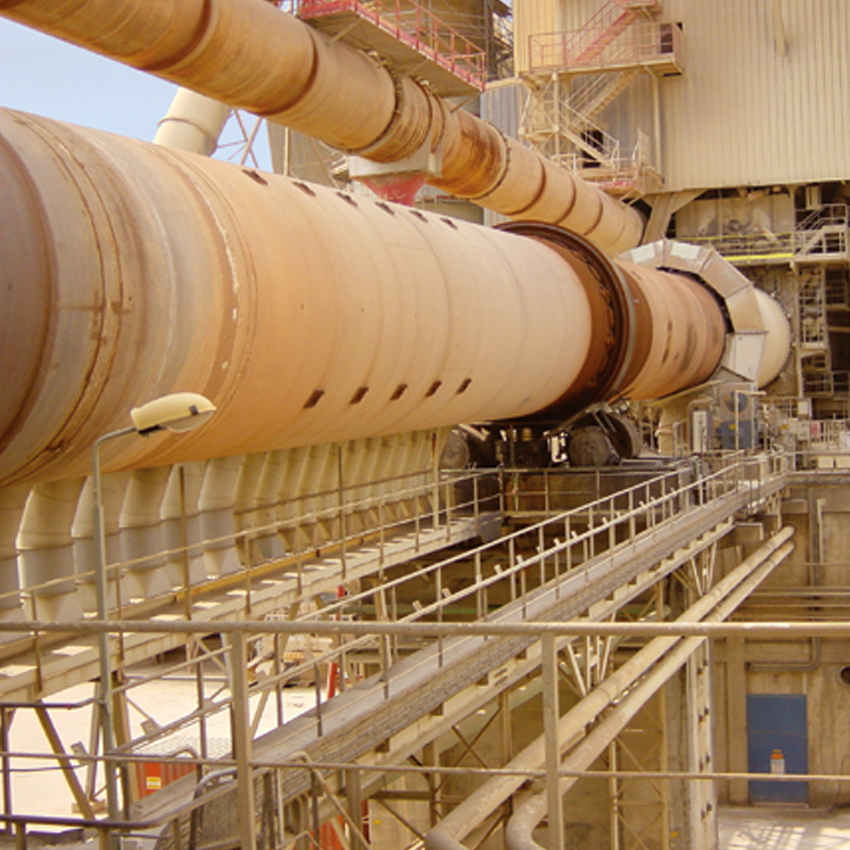

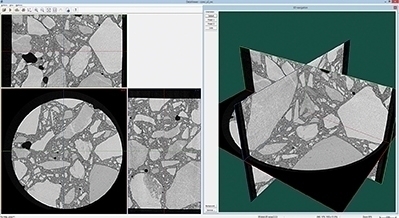

Building Materials

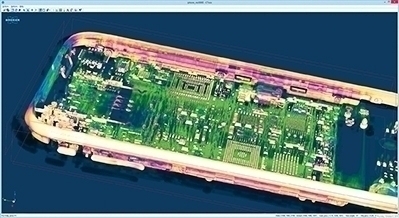

Electronic Components/Devices
Key Features
Push-Button XRM
Just insert a sample, manually or automatically, and get a complete 3D volume without any further interaction.
Push-Button XRM includes everything: automatic sample size detection, sample scanning, 3D reconstruction, and 3D volume rendering. Ideal for routine tasks, or operation by non-expert users!
You need full control? No problem, SKYSCAN 1275 offers all features.
Combined with a sample changer SKYSCAN 1275 even works 24/7.
Sample changer

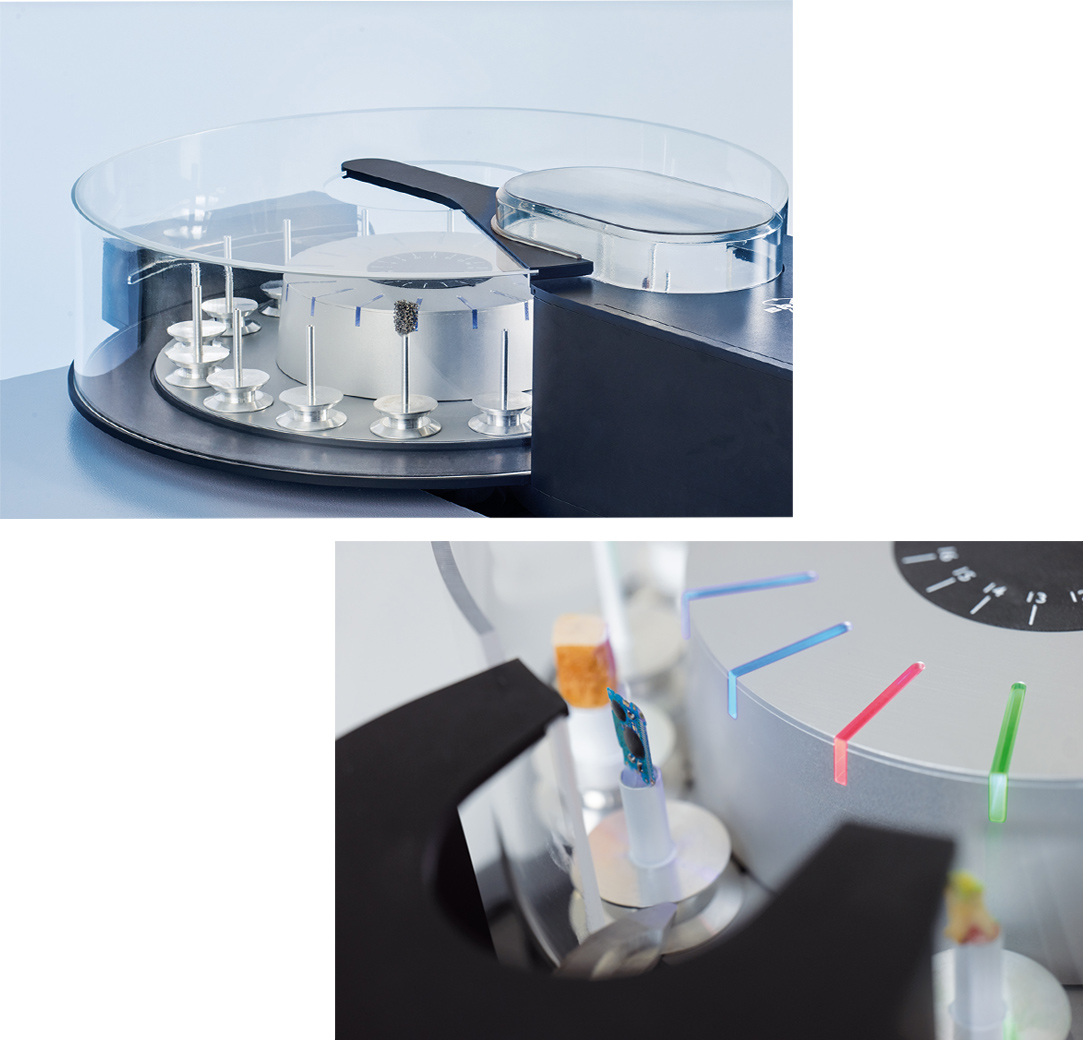

SKYSCAN 1275 can optionally be equipped with an external 16-position sample changer to increase throughput for QC and routine analysis.
The sample changer accepts a variety of sample sizes, up to a diameter of 96 mm.
Samples can be can be easily replaced at any time without interrupting an ongoing scanning process. New samples are automatically detected, and LED‘s indicate the status for every scan: ready, scanning, done.
In-situ stages
The Bruker material testing stages are designed to perform compression experiments up to 4400 N and tensile experiments up to 440 N. All stages automatically communicate through the system’s rotation stage, without the need of any cable connections. Using the supplied software, scheduled scanning experiments can be set up.
Bruker's heating and cooling stages can reach temperatures of up to +80ºC, or 30ºC below ambient temperature. Just like the other stages, no extra connections are needed, and there is an automatic recognition of the stage. Using the heating & cooling stages, samples can be examined under non-ambient conditions, to evaluate the effect of temperature on the sample’s microstructure.
SKYSCAN 1275
No external cooling water or special power with no compromise in performance: Designed for the ecological and economical needs of today
Helical Scanning

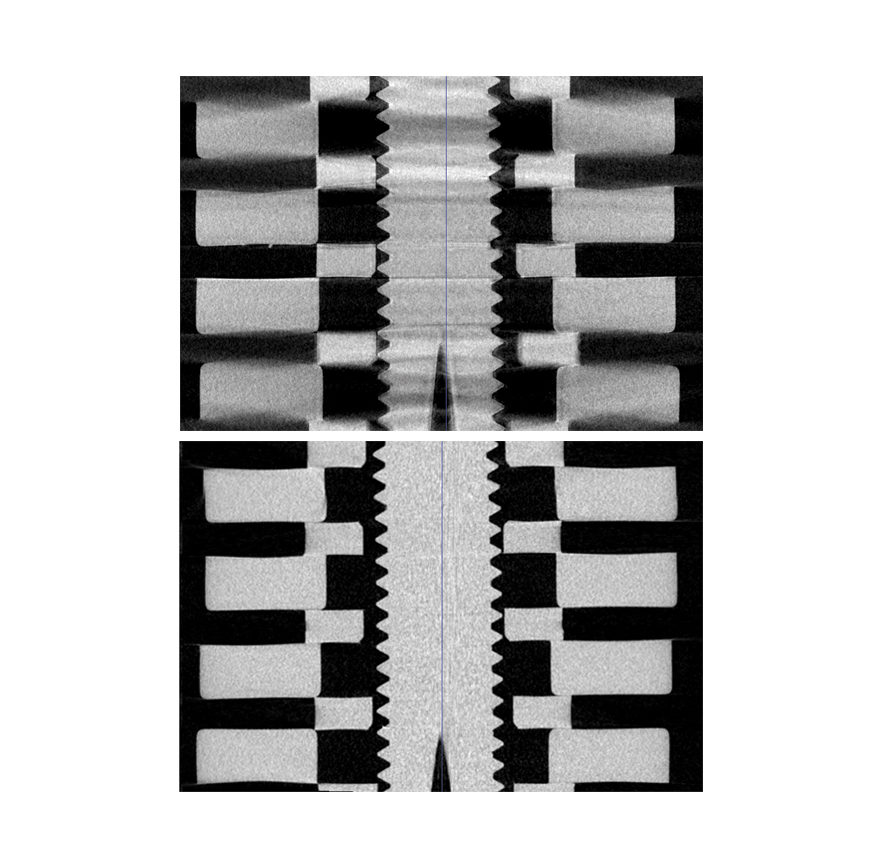

Cone-beam geometry (top) can cause artefacts when reconstructing horizontal structures in a sample. Helical scanning (bottom) prevents such artefacts with a spiral trajectory during the acquisition phase.
Highlighted Applications
Additive Manufacturing
Additive manufacturing, also commonly called 3D printing, allows the creation of components with complex external and internal structure. Unlike classic techniques which require special molding or tooling, additive manufacturing allows the economical production of both one piece prototypes and large batch production parts. Once completed, confirmation of both the internal and exterior structure is important in ensuring that the component will perform as intended. XRM allows this inspection in a non-destructive manner, giving confidence that a component will meet or exceed specifications.
- Inspection of internal voids for trapped powder
- Validation of external and internal dimensions

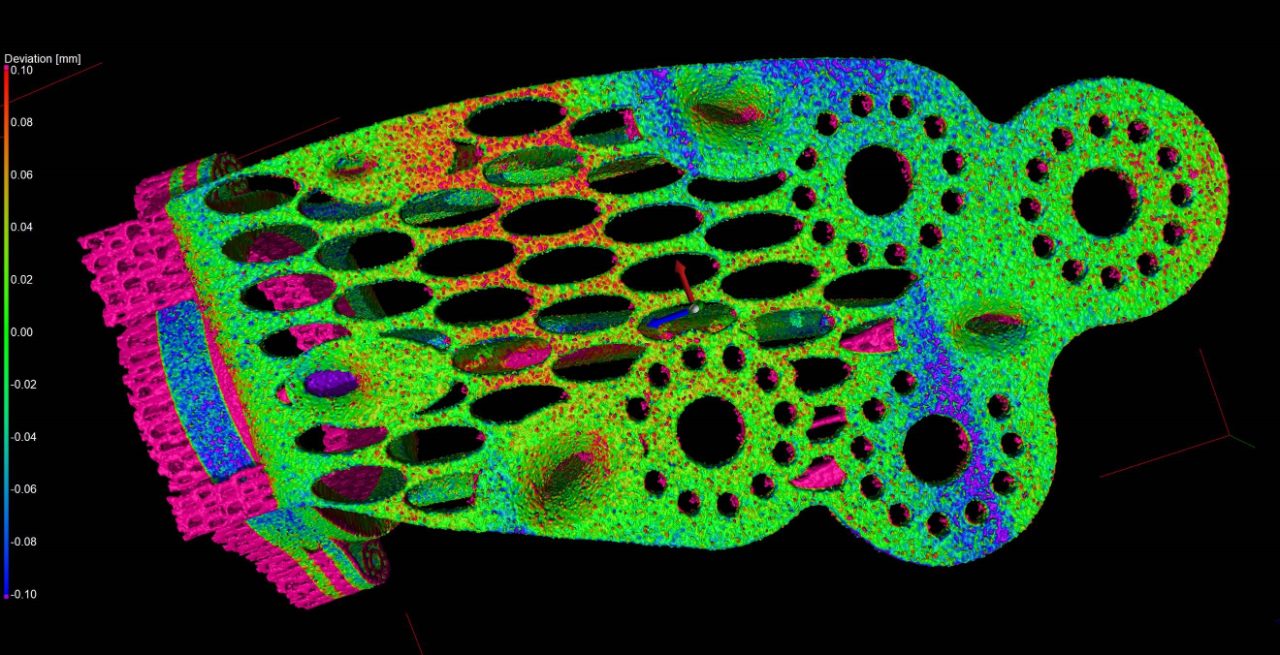

- Direct comparison with CAD models
- Analysis of single and multi-material components
Medical Devices and Pharmaceutical Packaging
Designing and testing packaging assemblies is a critical task to ensure medicine can be delivered in a proper and safe way to the patient. XRM allows fast inspection for QC in a non-destructive way, giving confidence in the production process and the resulting product’s performance.
- High-throughput scanning of medical devices for QC

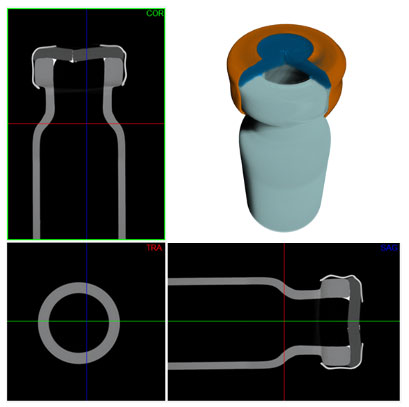

- Investigate the integrity of pharmaceutical packaging up to a size of 10 cm x 10 cm x 10 cm
- Monitor and control the quality and alignment of internal metal and plastic components
- Measure external and internal dimensions, and detect defects

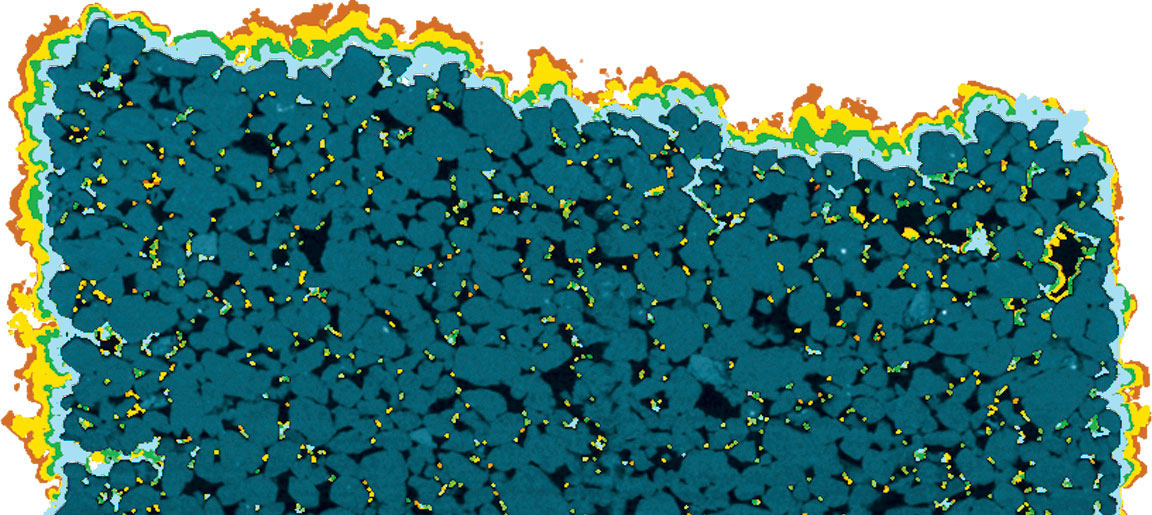

Geology

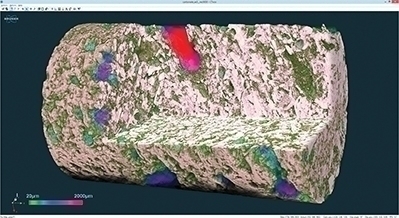

XRM enables non-destructive characterization of a wide variety of geomaterials, from small mineral samples up to large drill cores at full-core size.
- Quantitative analysis of structural parameters, such as grain size, open/closed porosity and connectivity
- Calculate the distribution of mineral phases in 3D
- Correlate the sample structure with mechanical properties by apply in-situ mechanical tests
- Visualize fluid flow, crystallization, dissolution and other processes in porous media
Application Gallery
SKYSCAN 1275 Specifications
Feature |
Specification |
Benefit |
X-ray source |
20 – 100 kV 10 W < 5 µm spot size at 4 W |
Maintenance-free sealed X-ray source Fast scans for QC, or 4D XRM |
X-ray detector |
Active pixel CMOS flat-panel 3 MP (1944 x 1536) 75 µm pixel size |
Excellent signal-to-noise Large Field-of-View |
Object size |
96 mm diameter 120 mm height |
Capable to scan a large range of sample sizes |
Sample changer (optional) |
16 samples up to 50 mm diameter 8 samples up to 96 mm diameter External access |
Unattended high throughput Any combination of large and small samples Add/remove samples at any time without interrupting the actual scan |
Dimensions |
W 1040 mm x D 665 mm x H 400 mm Weight 170 kg |
Space-saving desktop system that fits in every lab |
Power supply |
100-240V AC, 50-60Hz, 3A max. |
Minimum installation requirements, a standard power supply suffices |
POSITION, SCAN, RECONSTRUCT and ANALYZE
Bruker XRM solutions include all software needed to collect and analyze data. An intuitive graphical user interface with user guided parameter optimization support both expert and novice users. By using the latest GPU powered algorithms, reconstruction time is substantially reduced. CTVOX, CTAN and CTVOL combine to form a powerful suite of software for both qualitative and quantitative analysis of models.
Measurement Software:
SKYSCAN 1275 – Instrument control, measurement planning and collection
Reconstruction Software:
NRECON – Transforms the 2D projection images into 3D volumes
Analysis Software:

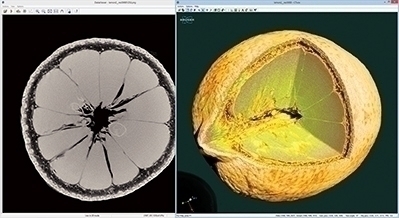

DATAVIEWER – Slice-by-slice inspection of 3D volumes and 2D/3D image registration

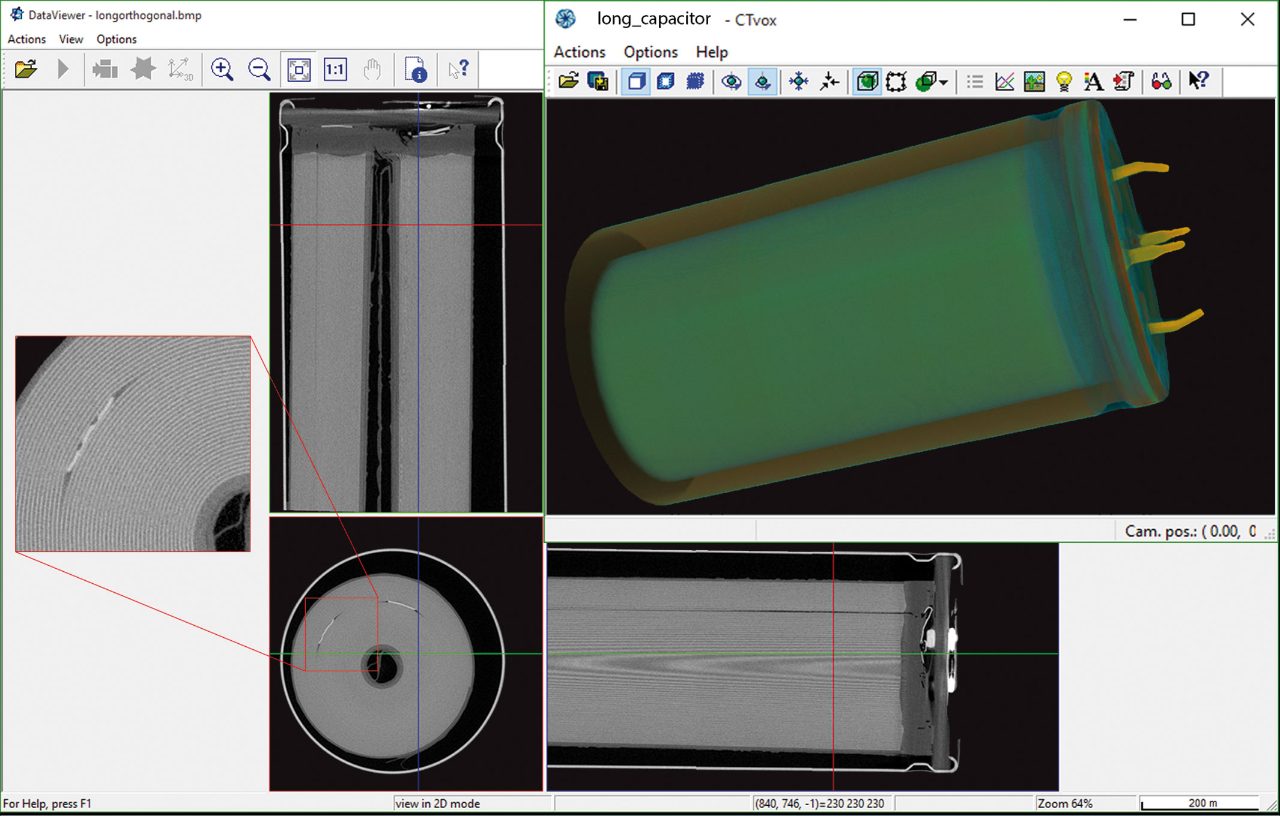

CTVOX – Realistic visualization by volume rendering
CTAN – 2D/3D image analysis & processing
CTVOL – Visualization of surface models to export for CAD or 3D printing
Webinars
Service & Support
- Helpdesk for technical issues with hardware, software, and applications support using web based and advanced remote service tools.
- LabScape Maintenance Service Agreements
- On-site, on-demand support
- Installation and operational qualification as well as performance verification
- Site planning, relocation, and consultation
- Replacement and spare parts, consumables, and in-person and online training
- Software updates, manuals, and LabScape MSA management (↗brukersupport.com)
