QUANTAX 75-60

EDS system with large-area SDD for Hitachi´s Benchtop SEM, the TM4000

QUANTAX 75-60 is an EDS system specially designed to work with the Hitachi TM4000, a benchtop scanning electron microscope (SEM).

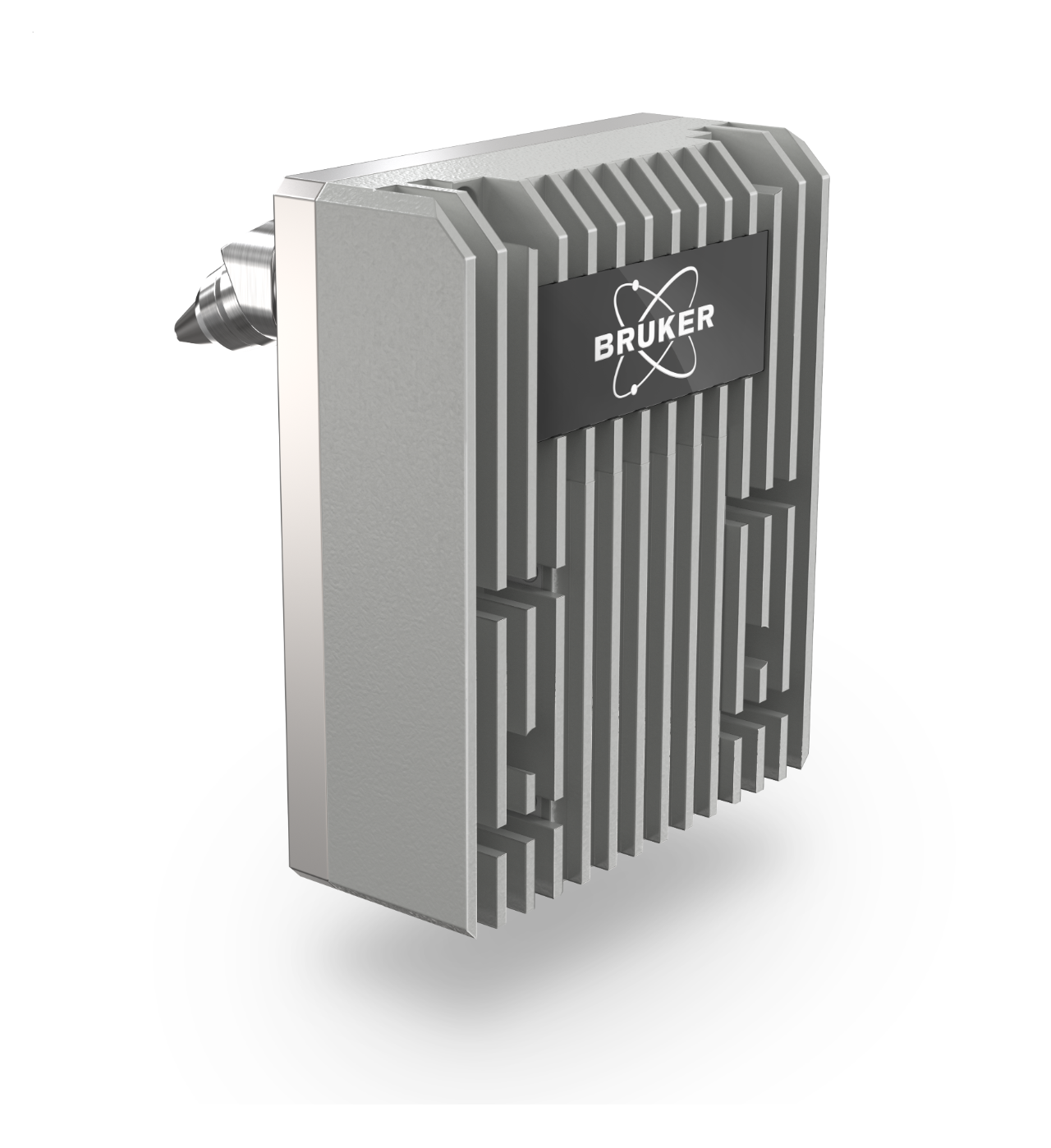

This is a complete EDS solution to provide the benefits of elemental analysis to Hitachi's benchtop SEM. The large-area 60 mm2 silicon drift detector (SDD) enhances routine EDS analysis by capturing more data at a faster rate than smaller-area standard detectors. The system includes the SDD detector, a small electronics unit and intuitive ESPRIT Compact analysis software.

This solution for tabletop electron microscopes provide the ability to measure the elements, from boron (Z = 5) to californium (Z = 98), in samples for both qualitative and quantitative analyses, as well as elemental mapping at a high-energy resolution of 129 eV.

The QUANTAX 75-60 is a complete EDS solution that fits within Hitachi electron microscopes

60 mm2 SDD for Increased X-ray Collection: Fast, High-Resolution, Versatile

Analyse Samples at a High-Throughput

The large SDD size in QUANTAX 75-60 means that, compared to a conventional 30 mm2 SDD, less time is required to collect the volume of X-ray signals required to create a high-quality elemental map. Higher volume X-ray collection alongside high-speed processing results in a faster analysis and greater throughput.

Image Samples with Excellent Spatial Resolution

QUANTAX 75-60 maps elements at an excellent spatial resolution. The system's large SDD surface can collect a high number of X-rays allowing measurements to be taken at low beam currents, and therefore with a lower spot size and higher spatial resolution.

Map a Wide Range of Samples

QUANTAX 75-60's 60 mm SDD works well at lower beam intensities. The detector's large active area directly translates into a high collection angle. This means that, even at low beam energies, enough X-rays can be collected to produce a high-quality elemental map. The ability to work at a lower beam current allows for the analysis of a wide range of samples, such as beam-sensitive samples that are usually difficult to analyze using conventional EDS on a tabletop SEM.
