In this webinar, Bruker tribology expert Dr. Farokhzadeh explains the purpose, benefits, and applications of the TriboLab CMP benchtop system, which simulates a full-scale CMP process.
She discusses:
Chemical mechanical polishing (CMP) is an essential technology in the development of cutting-edge microelectronics. CMP is used for global planarization of dielectric interlayers and polishing of copper damascene architectures, tungsten vias, and low-k dielectric films. The ever-increasing list of semiconductor devices and scaling demands necessitates efficient polishing of a wide range of materials concurrently or sequentially. This increases the complexity of CMP and drives a continual need to optimize process design and control.

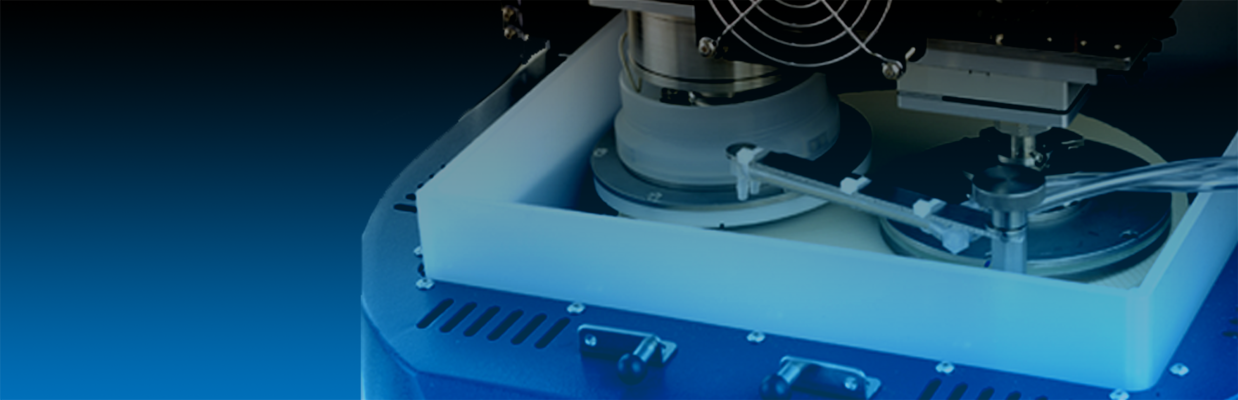

Tribolab CMP is a benchtop CMP system that simulates a full-scale CMP process, providing:
Several variables can be changed and controlled independently in the experiments, including but not limited to:
Each of these parameters have different effects on the wafer-slurry-pad interactions and the experimental results are used in characterizing wafer/slurry/pad interactions, understanding material removal mechanisms, correlating contact conditions to the process parameters in a systematic way, and establishing models that relate material removal rate and friction coefficient to the process parameters.
Tribolab CMP is an effective tool for resolving challenges in the development of consumables such as pad, slurry, and cleaning solutions. It can also provide insight into applications for development and future potential directions.
Find out more about the technology featured in this webinar or our other solutions for Chemical Mechanical Planarization:
Kora Farokhzadeh, Ph.D.
Application Scientist, Bruker
