3D X-ray Microscopy Software
3D.SUITE & VGSTUDIO MAX
3D.SUITE Software
Bruker XRM solutions include our comprehensive, in-house developed 3D.SUITE software for reconstruction, inspection, visualization, and analysis of the internal object structure.
3D Inspection with DATAVIEWER

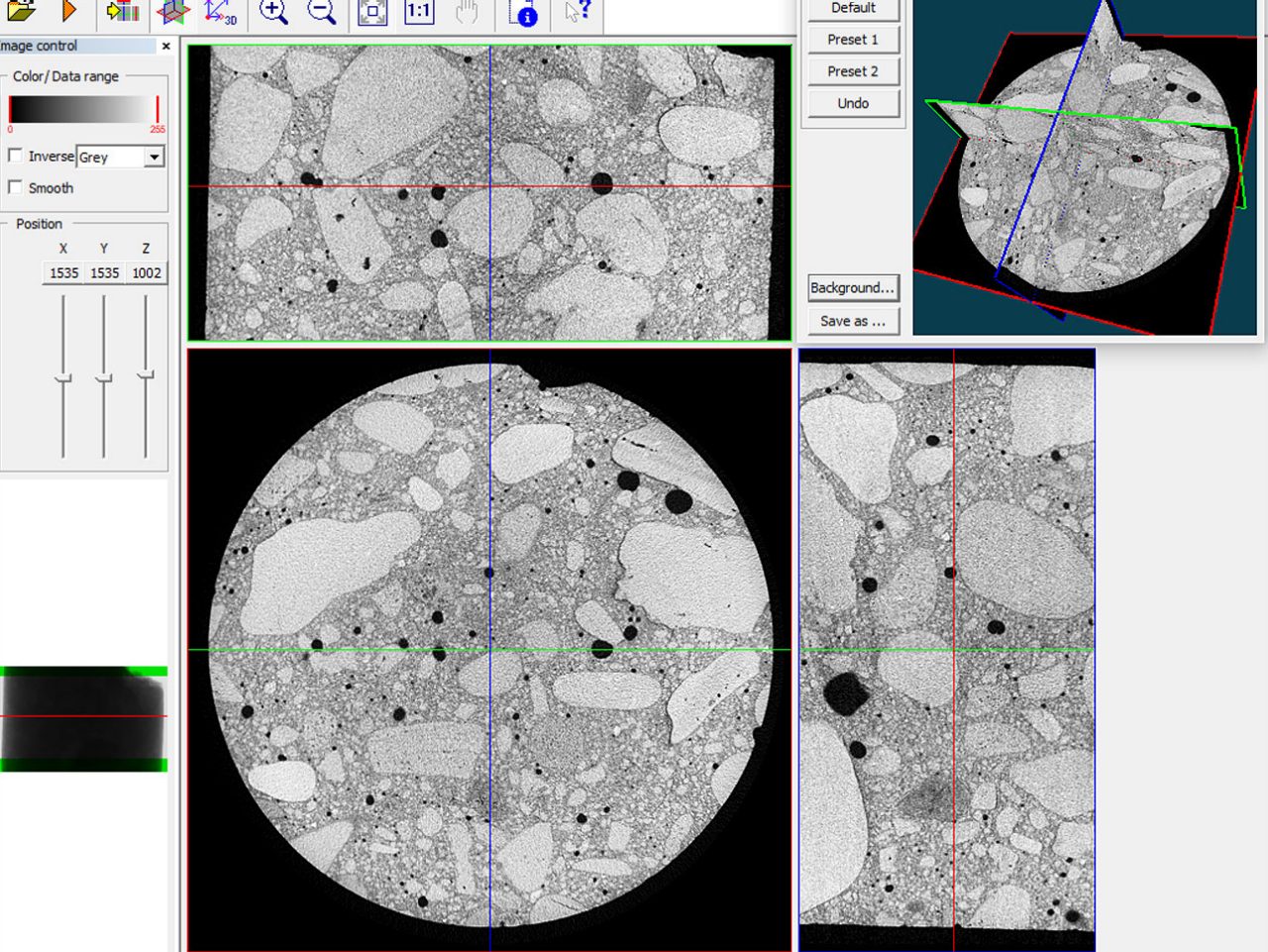

3 orthogonal projections through a concrete sample
- Display reconstructed results as slice-by-slice movies or three orthogonal projections
- Smoothing, linear and non-linear grey scale transformations, color coding
- Differential image analysis between samples
3D Visualization with CTVOX and CTVOL

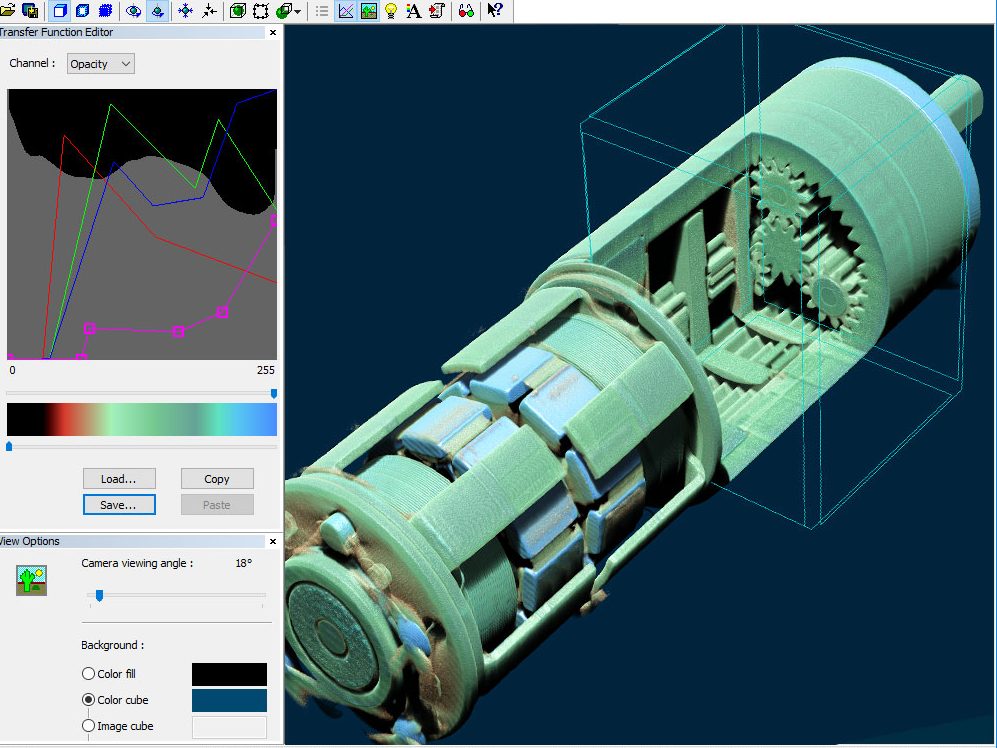

3D rendered volume of a small stepper motor
- Volume rendering to display reconstructed results as a realistic 3D object
- Create animated movies flying around or through the object
- Produce cut-away views
- Adjust coloring and transparency
- Export surface rendered models in STL format to 3D printers, or to 3D CAD software
- Modelling using mobile devices
3D Image analysis with CTAN

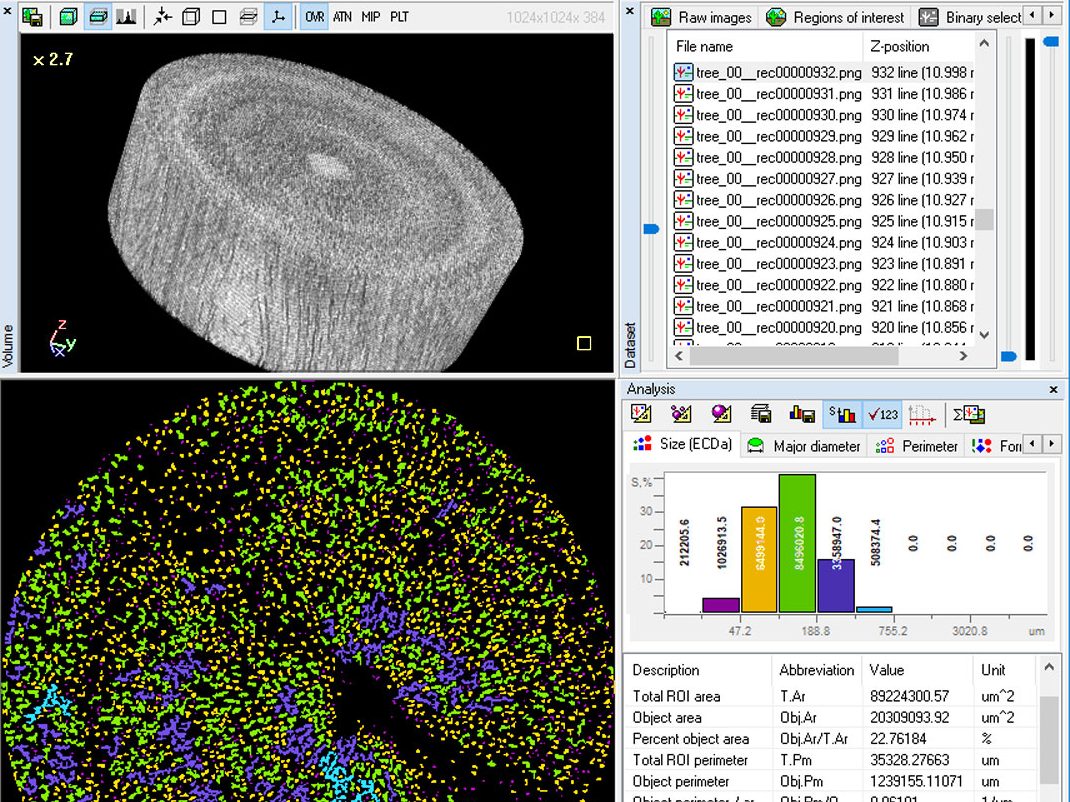

Porosity analysis of a tree slice
- Handles large data sets with ease
- Density analysis
- Open/closed porosity
- 3D distances and angles
- Thickness and separation
- Extensive tool set for region-of-interest selection
- Various thresholding methods, morphological operations, and filtering algorithms
- Color coding of local orientation, thickness and separation
- Automated batch analysis
VGSTUDIO MAX Software
Bruker is a certified reseller of VGSTUDIO MAX, a software created by Volume Graphics for the visualization and analysis of CT data.
VGSTUDIO MAX offers different modules that cover a wide range of industrial applications
- Measurements on even the most difficult-to-access surfaces of a component (Coordinate Measurement Module)
- Non-destructive defect discovery in castings, including prediction of pore cuts (Porosity/Inclusion Analysis Module)
- Defect analysis according to specifications P 201 and P 202
(Enhanced Porosity/Inclusion Analysis Module) - Comparison of manufactured parts with CAD data, mesh data (.stl), or other voxel data (Nominal/ Actual Comparison Module)
- Wall thickness analysis: localization of areas with an insufficient or excessive wall thickness or gap width (Wall Thickness Analysis Module)
- Automation through the modular use of macros in different contexts
- Determination of cell structures in porous foams and filter materials
(Foam Structure Analysis Module) - Calculation of fiber orientations and other relevant parameters in composite materials (Fiber Composite Material Analysis Module)
- Virtual stress tests for the non-destructive simulation of mechanical stress directly on CT data (Structural Mechanics Simulation Module)
- Flow and diffusion experiments, e.g., on CT scans of porous materials or composite materials (Transport Phenomena Module)

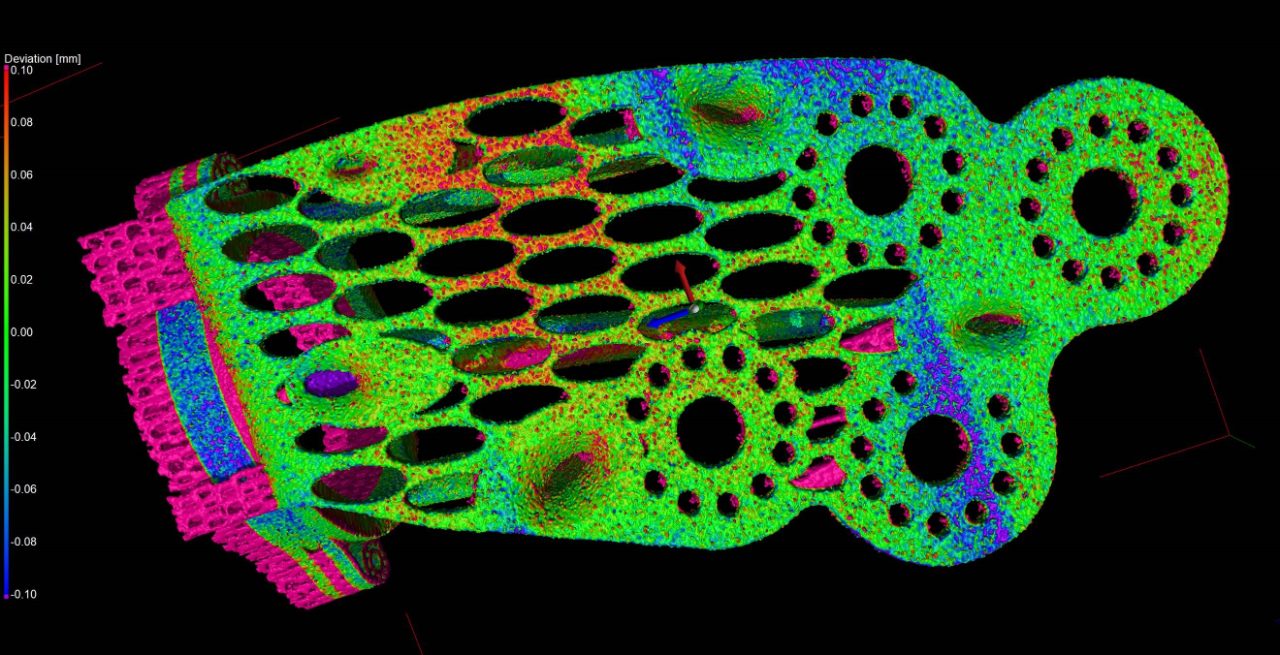

Nominal-Actual CAD comparison of an additive manufactured part
Service & Support
- Helpdesk for technical issues with hardware, software, and applications support using web based and advanced remote service tools.
- LabScape Maintenance Service Agreements
- On-site, on-demand support
- Installation and operational qualification as well as performance verification
- Site planning, relocation, and consultation
- Replacement and spare parts, consumables, and in-person and online training
- Software updates, manuals, and LabScape MSA management (↗brukersupport.com)
