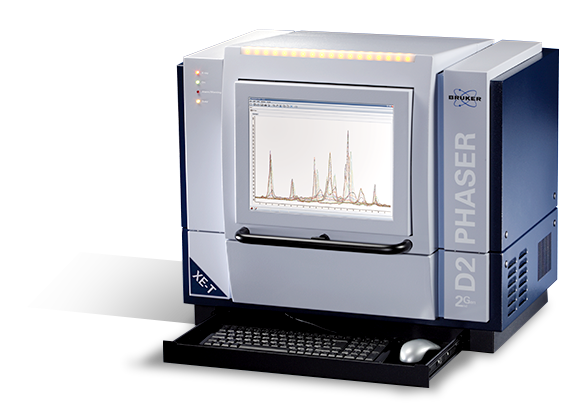

D2 PHASER

The D2 PHASER delivers data quality and collection speed that, up to recently, was thought impossible with a benchtop XRD system.

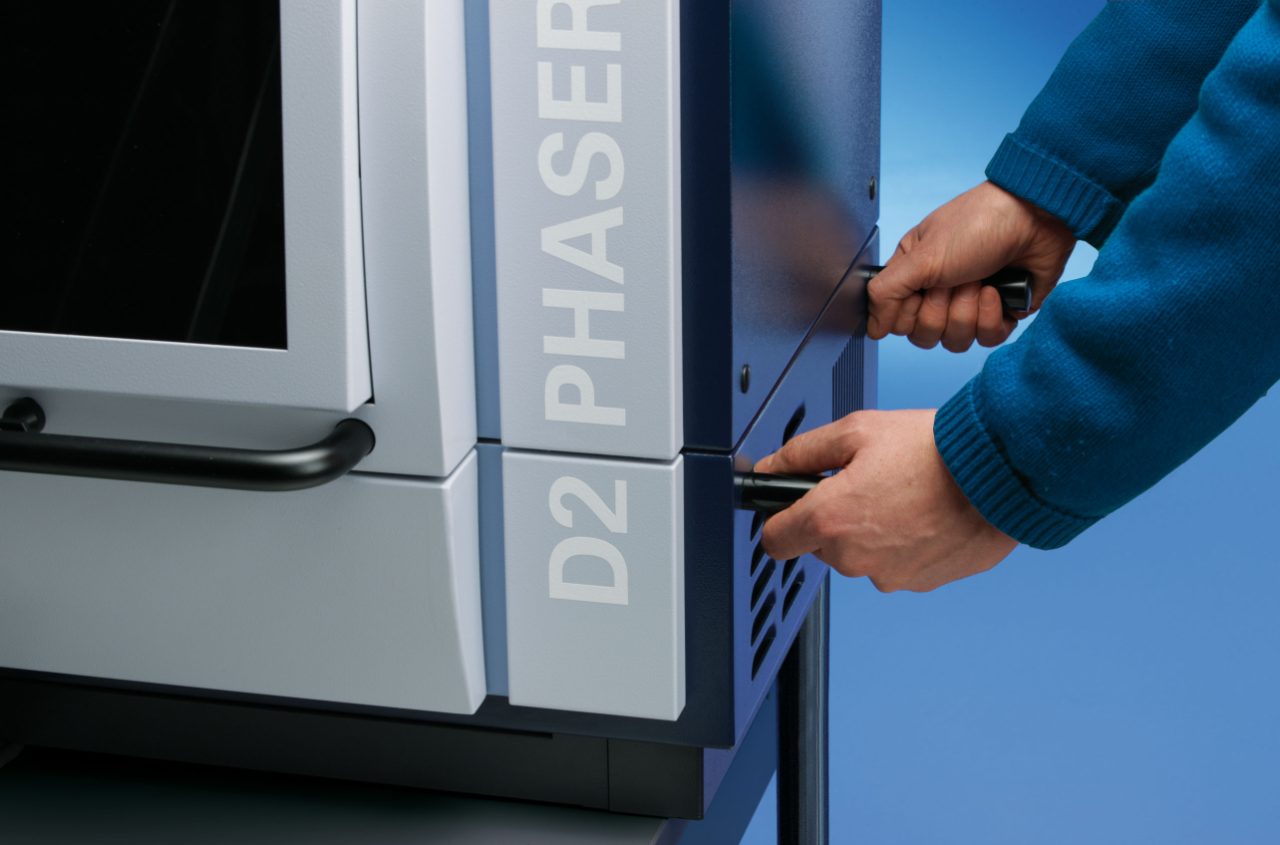

Due to its compact size, low weight, and ease-of-use design, the system is conveniently mobile, without the need for complicated infrastructure, large, heavy-load work benches, or vendor installation and alignment. A standard power outlet and a few minutes are all that is required to take they system from fully packaged to outstanding results.

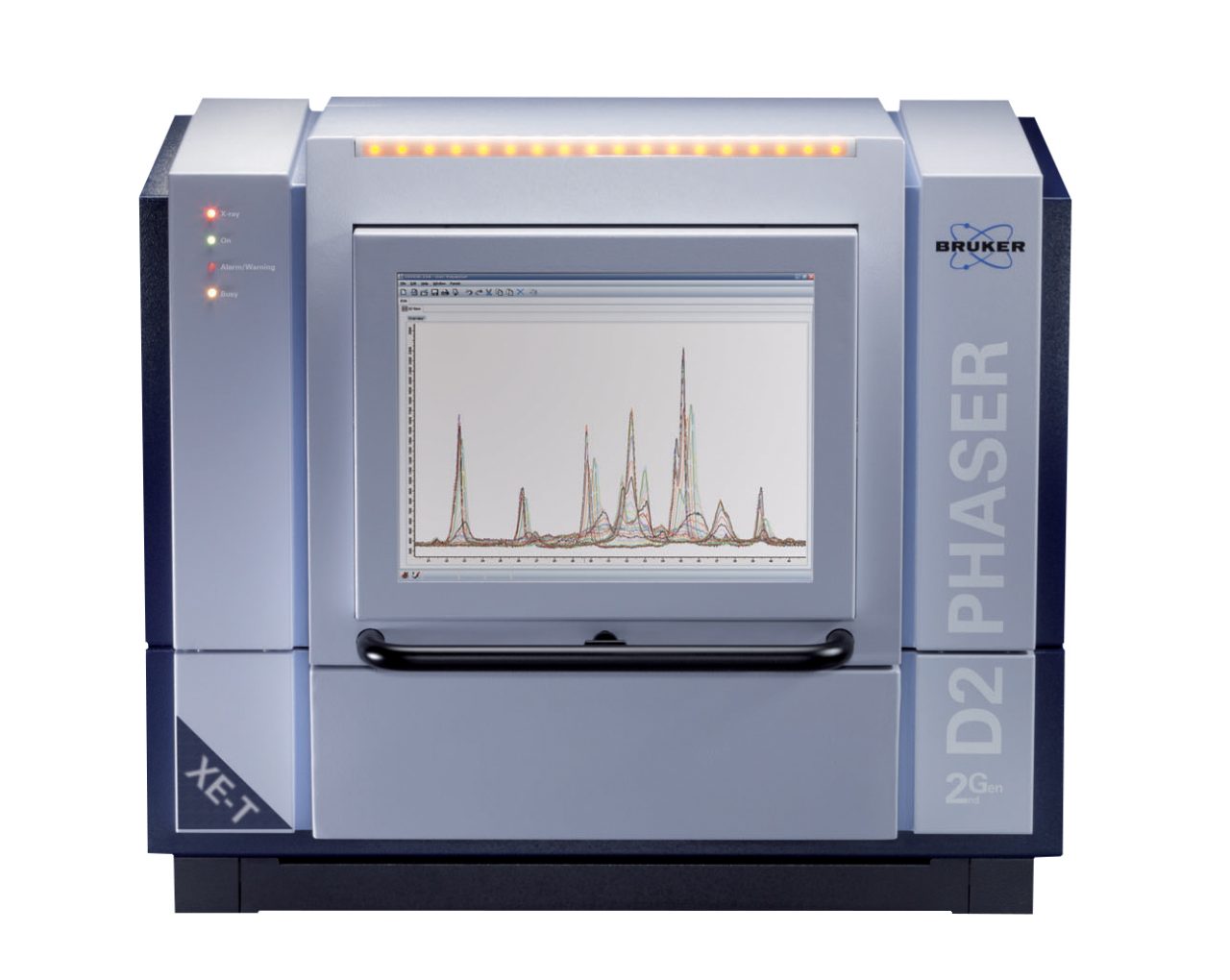

D2 PHASER XE-T edition

Equipped with the unique LYNXEYE XE-T detector, the D2 PHASER plays in a league of its own! The energy resolution of <380 eV allows a unique, digital monochromator mode to efficiently remove - unwanted radiation, such as sample fluorescence, - K - beta radiation, and Bremsstrahlung - background scattering, without meaningful losses in detection speed.

• Unique All in One design

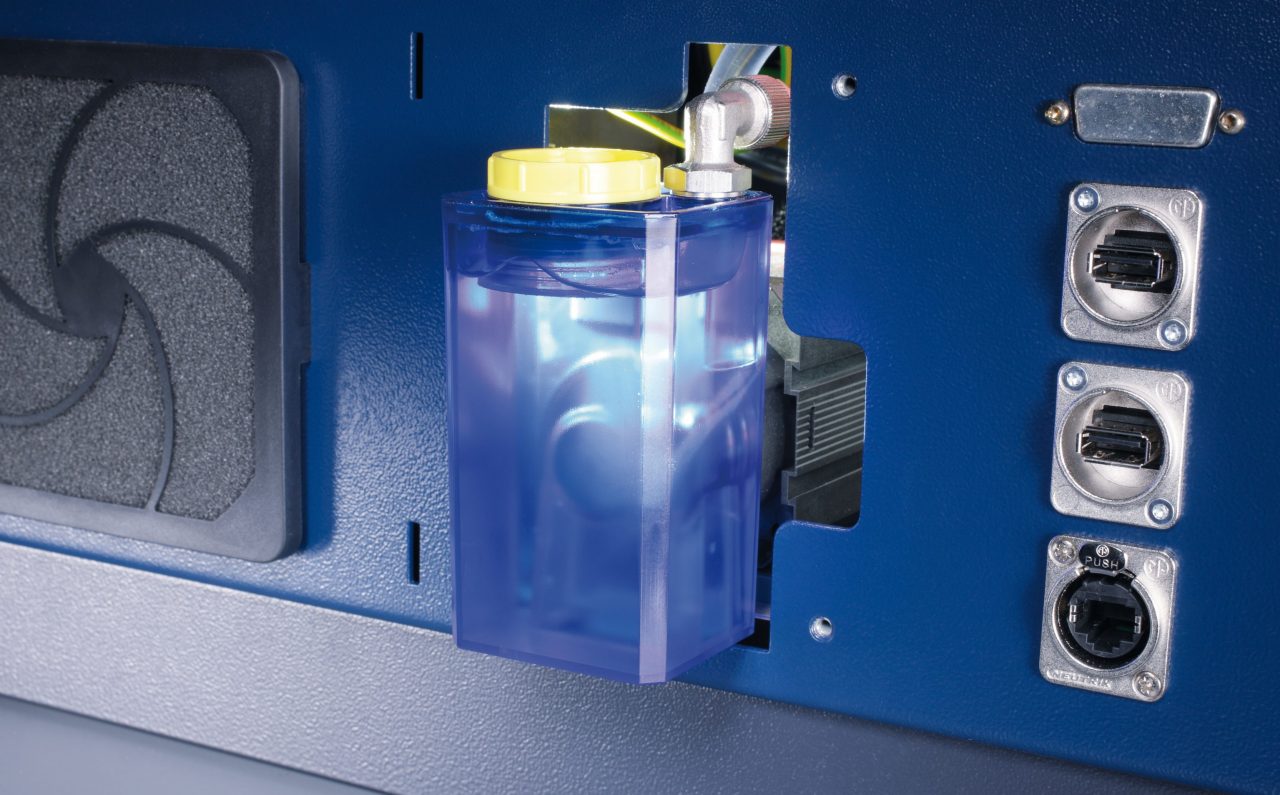

• No special utility requirements
• No installation or alignment required

The D2 PHASER delivers data quality and collection speed that, up to recently, was thought impossible with a benchtop XRD system.

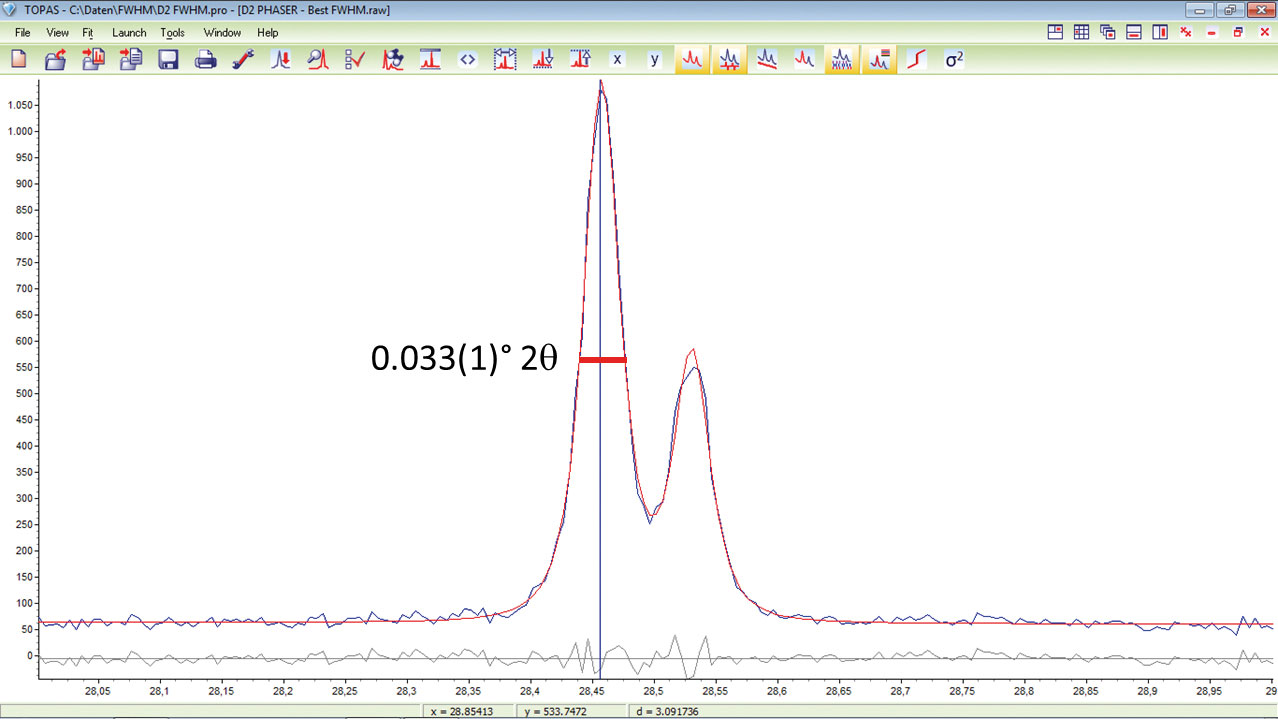

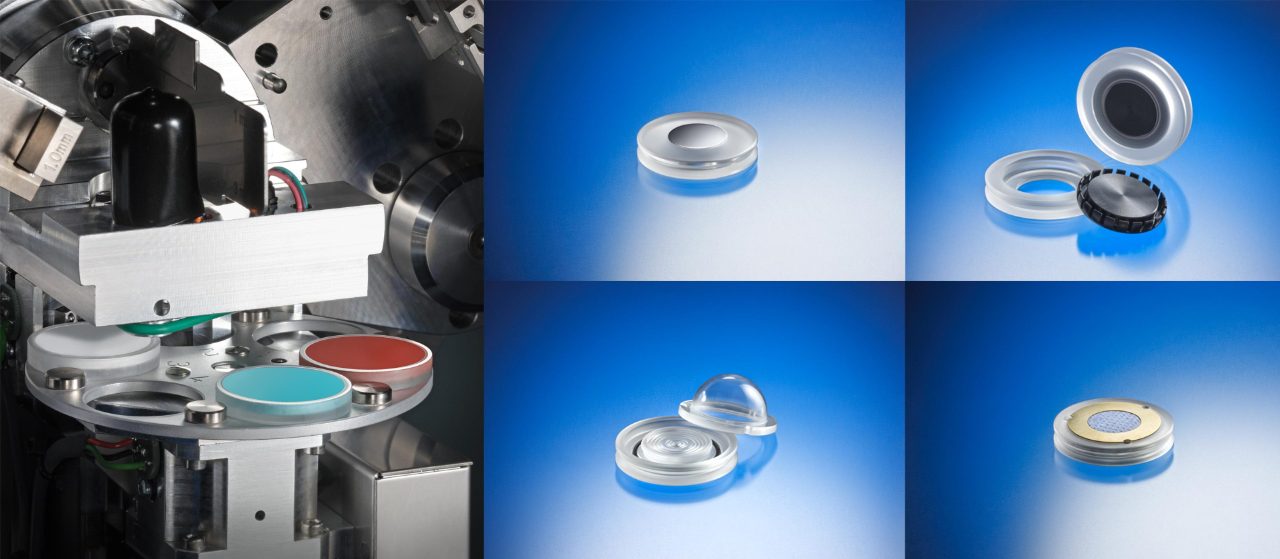

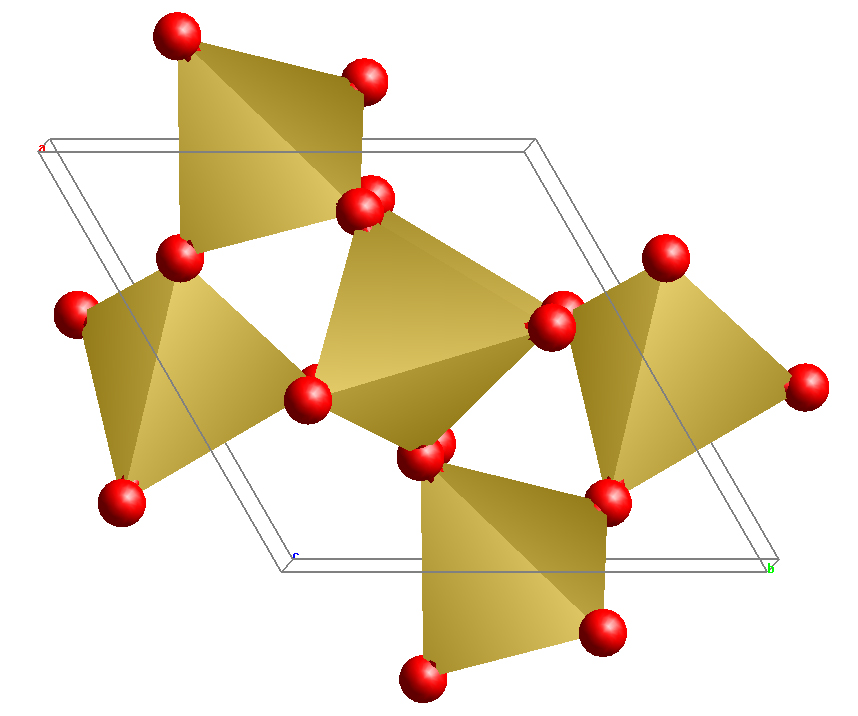

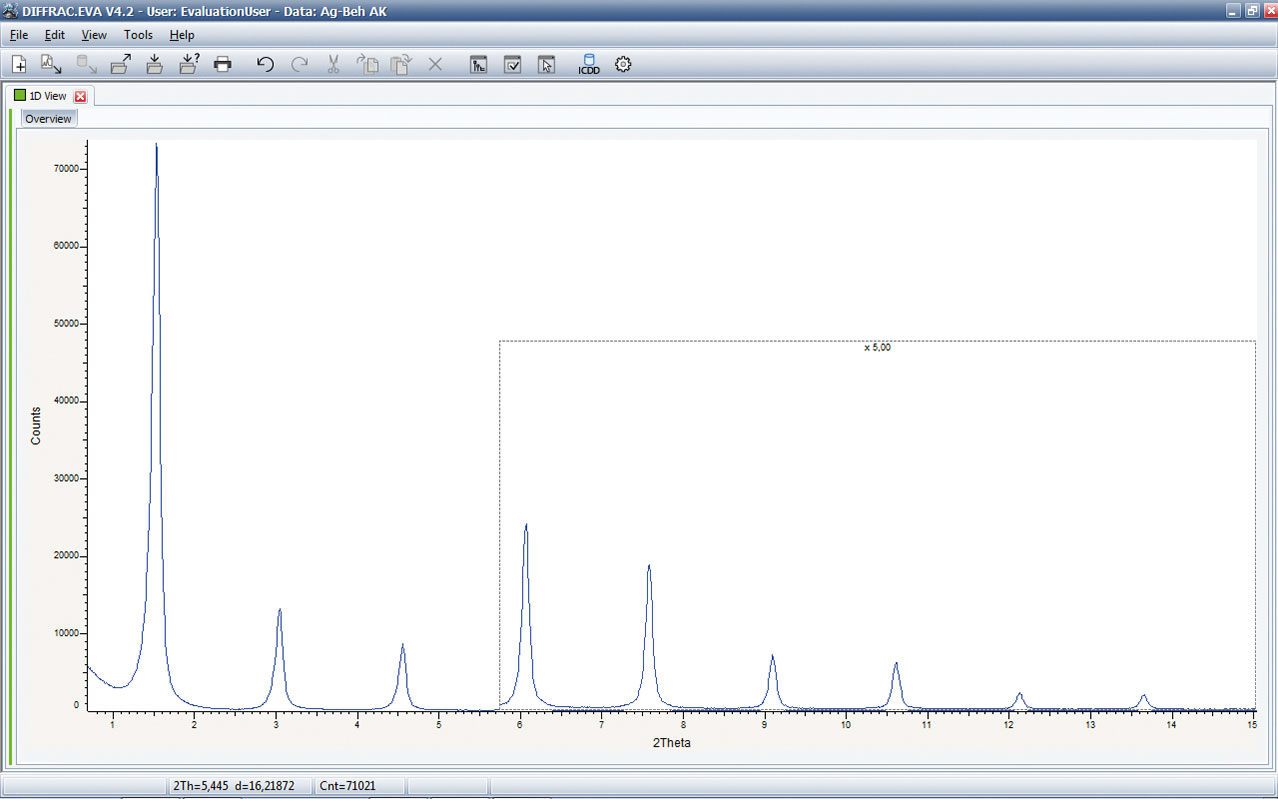

Thanks to its superior resolution as well as low-angle and low-background, the instrument is the perfect solution for all powder diffraction applications from phase identification, quantitative phase analysis, up to crystal structure analysis.

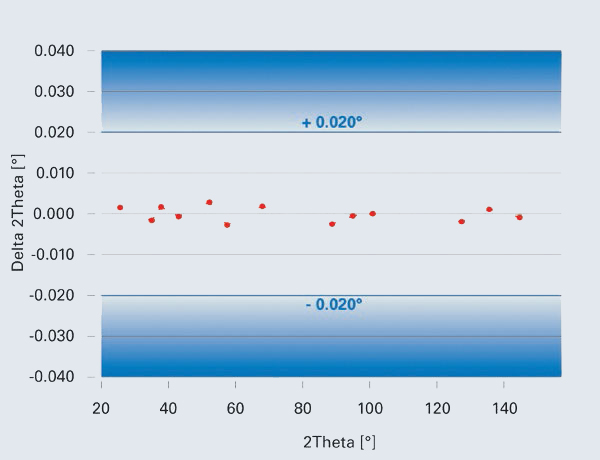

Even more - only Bruker AXS additionally guarantees an unparalleled instrument alignment equal or better than ±0.02° 2θ over the entire angular range. Accurate and precise data for all applications thanks to a rigorous instrument verification protocol.

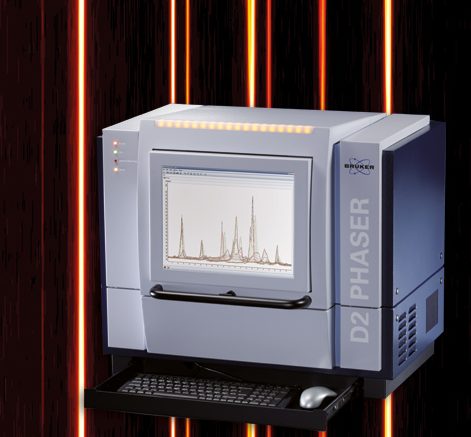

BRAGG2D - Monitoring the quality of sample preparation

• Systematic errors in sample preparation are a big source of analytical error.
• 2D diffraction images in Bragg Brentano geometry are used to visualize sample preparation issues like particle size or preferential orientation
• Avoid statistically unrepresentative measurement results.

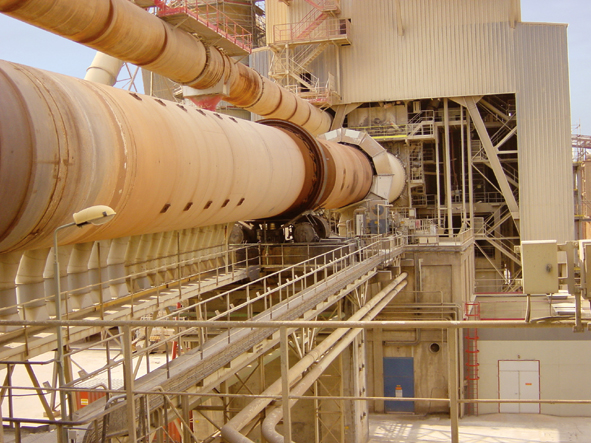

In close partnership with the cement industry Bruker is continuously pushing the performance of its analytical solutions.

For the D2 PHASER we provide a cement package that contains factory installed measurement and data evaluation methods for more than 10 raw materials, clinker and different cement types. This allows efficient production control of the kiln as well as the mill mineralogy. The D2 PHASER with the cement package is oerfectly suited for smaller operations.For larger factories that measure many samples a day also see the D8 ENDEAVOR.

• Quantitative phase analysis of OPC Clinkers (PDF)

Bruker offers advanced solutions to reliably support geologists and mining prospectors on locating and analyzing deposits anytime and anywhere.

• Phase Identification of Geological Material (PDF)

• Quantitative phase analysis of Gypsum/Anhydrite samples (PDF)

• Silica Dust Analysis (PDF)

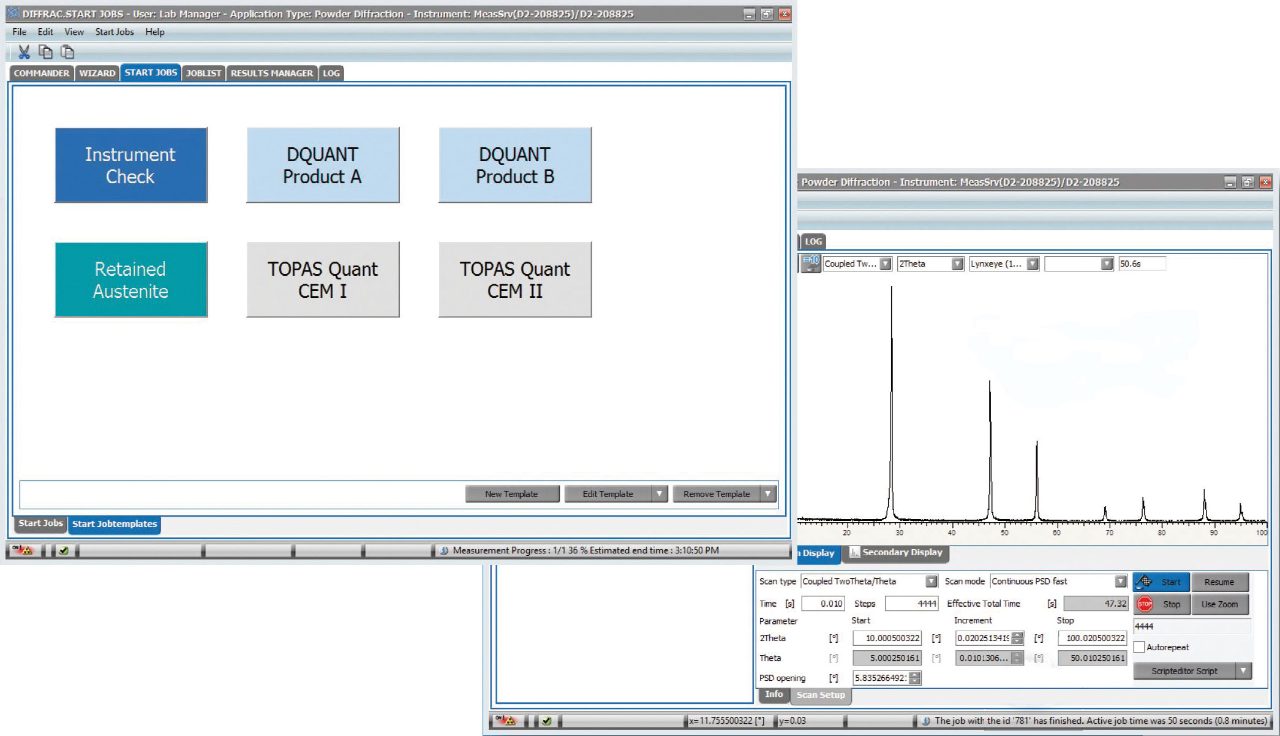

The full-featured, and no compromise DIFFRAC.SUITE software package provides the easiest measurement method creation and most powerful and accurate analysis results. All covered with 21CFR Part11 compliance, if required.

The DIFFRAC.SUITE MEASUREMENT CENTER, DIFFRAC.EVA for general data evaluation and the COD database for phase identification are always included with two licenses for industrial labs and 10 licenses for academic users.

For industrial process and quality control the D2 PHASER can be equipped with TOPAS BBQ and the Bruker turn-key package for the analysis of construction materials.
