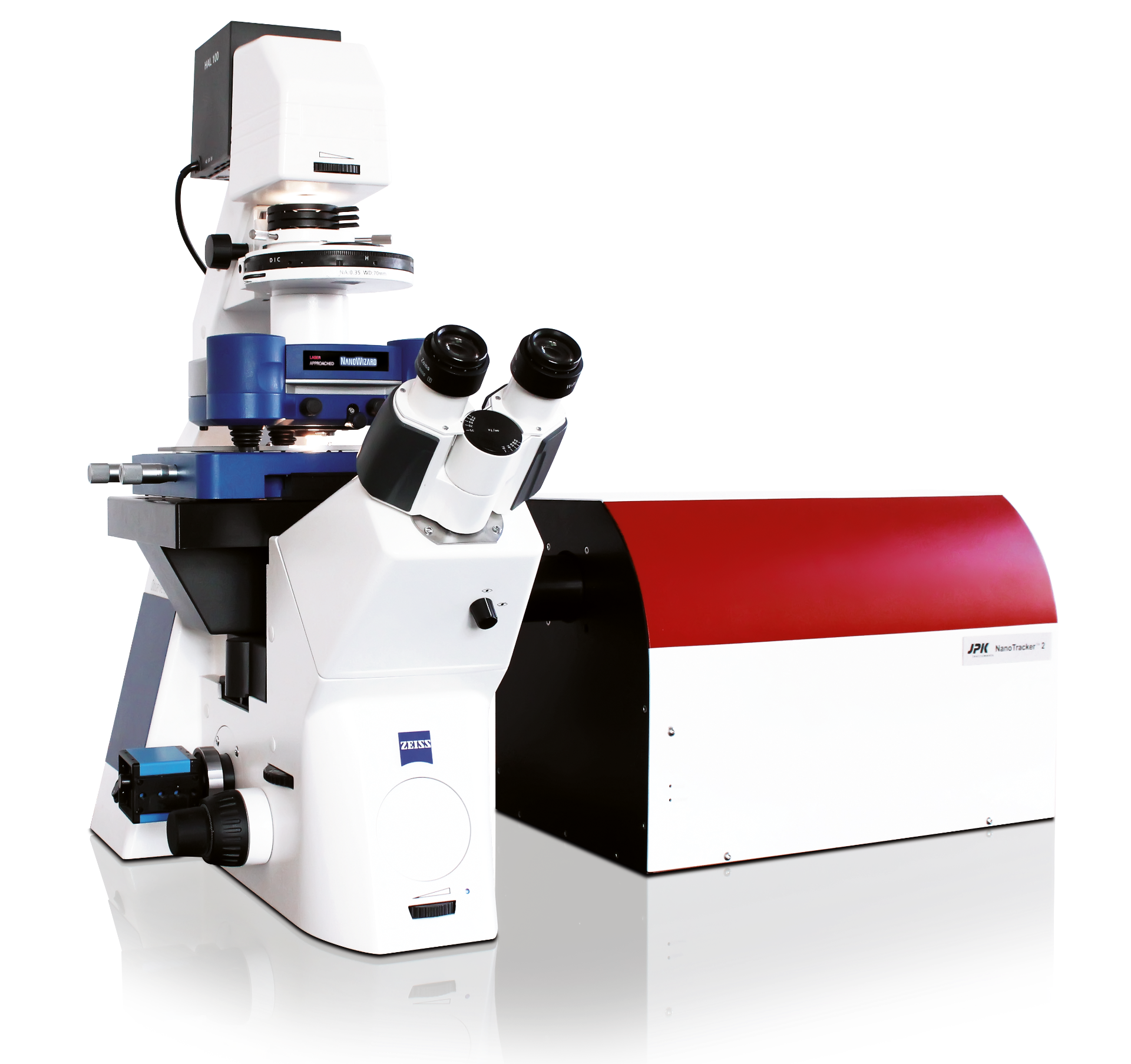

The OT-AFM Combi-System pairs the exceptional surface force measurement and imaging capabilities of AFM with the ability of optical tweezers to apply and measure smallest forces in 3D.
NanoWizard and NanoTracker team up – the perfect toolbox for imaging and force applications

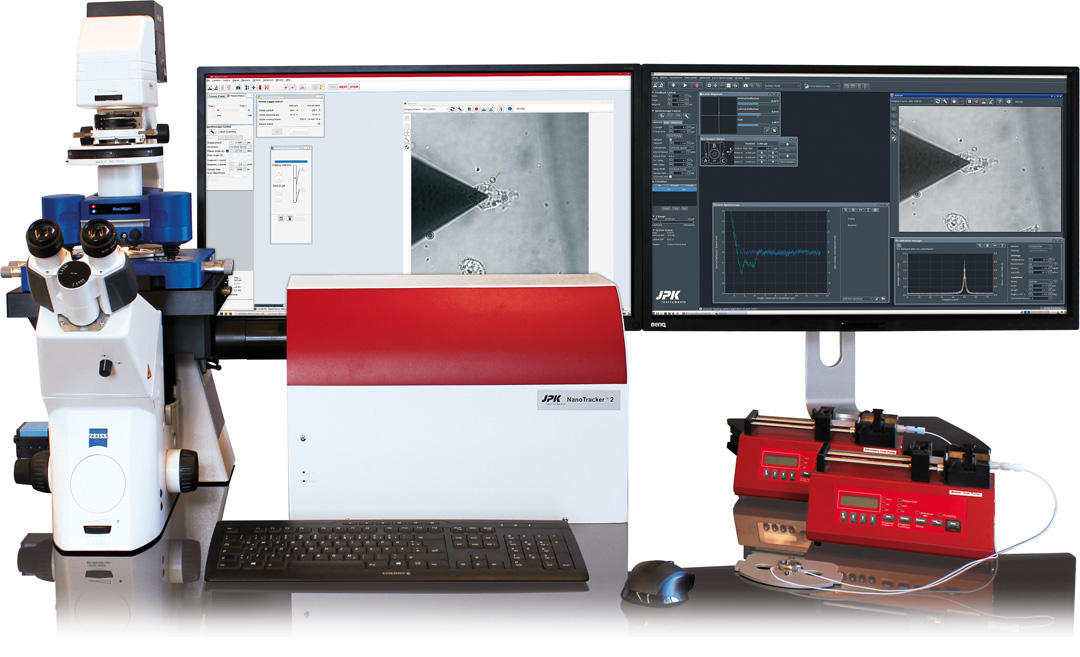

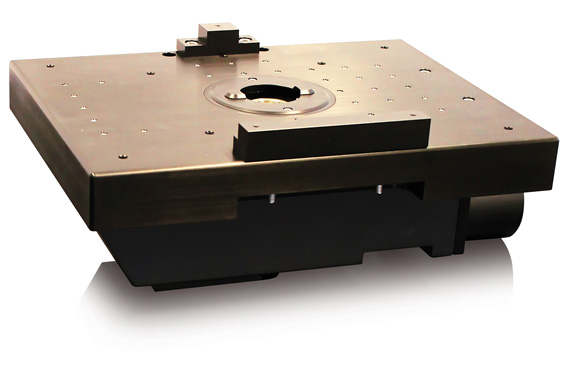

The OT-AFM Combi-System pairs the exceptional surface force measurement and imaging capabilities of AFM with the ability of optical tweezers to apply and measure smallest forces in 3D. The combined setup fulfills the highest demands on mechanical stability, flexibility, and modularity. A specially designed OT-AFM ConnectorStage is the key to combining any AFM of the NanoWizard or CellHesion family with the NanoTracker optical tweezers on a research-grade inverted optical microscope.
The unique combination of 3D positioning, detection, and manipulation provided by OT and the high-resolution imaging and surface property characterization of AFM opens up a whole new spectrum of applications, such as cellular response, cell-cell or cell matrix interactions, immune response, infection or bacterial/virus/nanoparticle uptake processes, and more.
Single-molecule applications with up to 14 degrees of freedom
With a multitude of available handles, interaction, and detection sites, OT-AFM significantly extends the range of single-molecule applications.

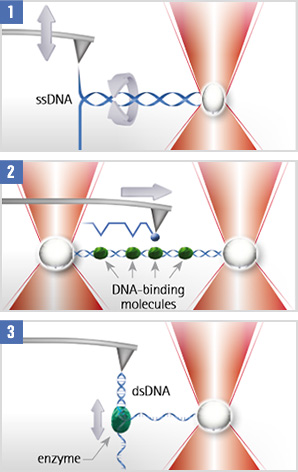

1. DNA hairpin unzipping (AFM) while the optical trap can be used to suppress (high laser power) or to quantify rotation (low laser power).
2. Scanning of a decorated DNA molecule. The molecule with DNA binding proteins (green) is spanned between two optically trapped beads. A functionalized AFM tip (blue) scans along the molecule and whenever interactions between the DNA-attached proteins and the tip occur, these can be detected in the AFM and OT signals.
3. Monitoring of DNA-enzyme (e.g. polymerase, helicase) dynamics. With onestrand attached to an optically trapped particle, the step-wise motion can be tracked. Closed-loop force clamping allows maintaining a constant force on the single strand.
Spectacular live cell applications with the OT-AFM system
Cellular response, cell-cell or cell matrix interactions, immune response, infection or bacterial/virus/nanoparticle uptake processes are just a few of the examples that can be investigated with JPK’s new state of the art OT-AFM platform. JPKs proven AFM and OT core technologies, combined with fluorescence microscopy, have set the ultimate benchmark for live cell applications.

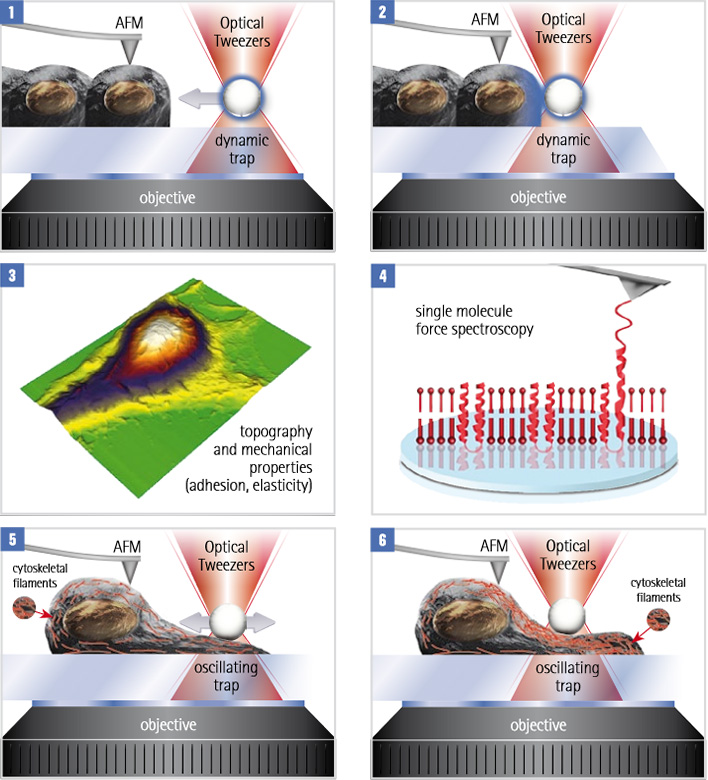

[1] + [2]: Activation of cells with functionalized beads, parallel AFM measurement. Signaling molecules on the surface of a microparticle are brought in contact with the cell at defined positions and time points.
[5] + [6]: A mechano-sensitive cell is stimulated by a periodic force, exerted by an optically trapped particle. Internal rearrangements of the cytoskeleton alter the mechanical properties of the cell. These properties are easily accessed with AFM methods like force mapping or JPK’s Quantitative Imaging Advanced (QI-Advanced).
[3] + [4]: AFM can be used in parallel to monitor changes in the cell structure, e.g. by monitoring mechanical properties throughout the process or by molecular recognition force spectroscopy that investigates the distribution and mechanical behavior of membrane proteins.
Triggering immune signaling that affects cell adhesion
Trigger cellular responses by using functionalized particles or modified microorganisms is a common method. The resulting changes in cellular structure, dynamics, and mechanical properties can be investigated using AFM-based methods. Delivering objects to specific regions of interest on the cell, however, is very difficult to achieve. OT provides the perfect tool for manipulating the sample and triggering cellular response, at a precise time and location. This significantly improves the throughput, flexibility, and reproducibility of these studies. In this application, the influence of signaling between dendritic cells (DCs) and regulatory T-cells (T reg) on the adhesion of conventional T-cells (Tconv) to the same DC is quantified by OT-AFM.

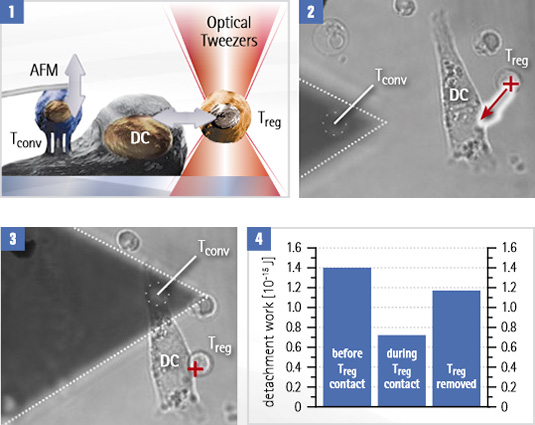

[1] Adhesion experiment with dendritic cells (DC) and conventional T-cells (Tconv). The Tconv is attached to a tipless cantilever, then approached to the surface-bound DC. The cantilever is pulled up and the adhesion forces are measured. A regulatory T-cell (Treg) is attached to and removed from the DC with optical tweezers to test its influence on the binding strength. [2]+[3] Measurement setup. The optical trap (red cross) moves the Treg while adhesion measurements are performed with a cantilever-attached Tconv. [4] Detachment work measured for the three situations. Treg attachment reduces DC-T conv interactions. After the Treg is removed, the adhesion level is almost restored. Sample courtesy of Yan Shi, University of Calgary/Tsinghua University, Beijing. The original experiment was designed by Yan Shi et al. (publication in print).
Key Features
- Imaging, positioning, and manipulation experiments from single molecules to living cells
- Measure forces in 2D and 3D, from 500fN to 10nN, on the same sample
- Fully flexible and modular design, with the widest range of modes & accessories
- Comprehensive integration with optical microscopy techniques such as TIRF or confocal
- All NanoTracker, NanoWizard /CellHesion 200 systems can be combined to become a complete OT-AFM-platform
- The ConnectorStage combines the AFM with the tweezers hardware on all major inverted optical microscopes from Zeiss, Nikon, Olympus, and Leica
Specifications
- All NanoTracker, NanoWizard/CellHesion 200 systems can be combined to become a complete OT-AFM-platform
- The ConnectorStage can combine the AFM with the tweezers hardware on all major inverted optical microscopes from Zeiss, Olympus, Nikon, Leica
- Two separate controllers drive the two systems independently:
- NanoWizard AFM controller with software
- NanoTracker OT controller with software
The Widest Range of Accessories in the Market
Optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions and more. Bruker provides you with the right accessories to control your sample conditions and to perform successful experiments.
