Fragment Screening by Ligand Observed NMR

In addition to Surface Plasmon Resonance (SPR) and X-ray crystallography, Ligand observed NMR is one of the most popular techniques used in Fragment Based Drug Discovery (FBDD). In recent years methodological and technical advancements have enabled NMR-based fragment screening to be performed in full automation and with significantly reduced consumption of fragments and unlabeled target protein. Ligand observed NMR can not only be used as a primary screening tool but also to confirm hits from other screening methods such as Thermal Shift, which results in high quality hits. Furthermore, all experiments can be performed as competition experiments in which a known binder is displaced and the Kd is determined by titration.

Here we present practical aspects on how to setup ligand observed NMR screening experiments in an automated fashion for the three basic experiments: Saturation Transfer Difference (STD), Water-Ligand Observation with Gradient SpectroscopY (waterLOGSY) and relaxation based methods (T_1r and T₂).

Ligand Observed NMR Screening Experiments:

• Large molecules > 20 kDa exhibit significantly different NMR properties in terms of relaxation (T₁ and T₂) and Nuclear Overhauser Effect (NOE) than fragment like small molecules.
• It is common to all ligand observed screening experiments, that ligands which bind to the target can be distinguished from non-binders due to interaction with a macromolecule which in turn changes the fragment’s observable NMR parameters.
• Hits detected with NOE-based methods can be confirmed by using a relaxation based method.
• During the residence time on the protein and due to chemical exchange when binding, small molecules adopt relaxation properties of the target molecule. This can be used to distinguish binders from non binders.

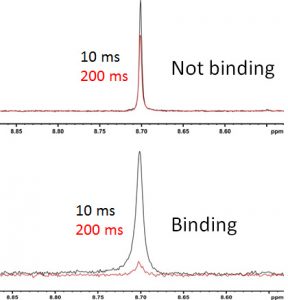

T₂/T_1r – Relaxation based methods

T₂ and T_1r relaxation times of large biomolecules are much shorter than those of fragments. Usually two spectra are measured and compared, one with 10 ms relaxation delay and one with 200 ms relaxation delay. Fragments that bind can be identified from a comparison of the spectra:

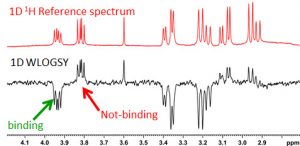

waterLOGSY

In WLOGSY experiments polarization is transferred from water molecules to small molecules by NOE. Binding ligands interact with water that is bound to the protein, while non-binders only “see” the solvent water. The NOE effect, however, from bound water has the opposite sign than the one from free water. As a result, the signal from binding fragments is opposite to signals from non-binders.

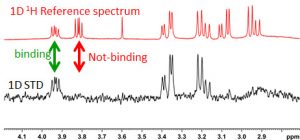

Saturation Transfer Difference (STD)

In STD experiments, two spectra are recorded, (1) a spectrum with selective radio frequency (RF) irradiation on the biomolecular target, and (2) a spectrum with off-resonance irradiation.

Saturation of the target due to RF irradiation is transferred to binding ligands via NOE, resulting in a reduced intensity in the on-resonance spectrum. In a difference spectrum of (1) and (2) only signals from binders can be observed.

Key Advantages of NMR Screening

• NMR techniques do not require protein specific setup or knowledge about the protein’s function and can be applied to targets for which no bio-assay is available,
• NMR techniques in solution are not compromised by crystal contacts or target immobilization,

• weak binding from low uM to mM can be detected

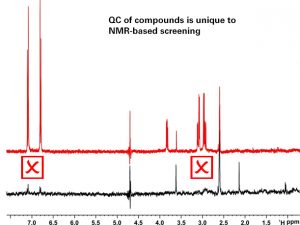

• QC of fragments, easy identification of degradation in spectra

Experimental Parameters

In the new TopSpin release 3.5 patch level 6 parameter sets for WLOGSY and STD are included with optimized experimental settings and routines for automatic acquisition and processing (rpar WLOGSY_PREP, WLOGSY and STDDIFFESGP.3). Parameter sets for T₂ and T_1r are available on request (stefan.jehle@bruker.com).

Hardware Parameters

In the new Topspin release 3.5 patch level 6 parameter sets for WLOGSY and STD are included with optimized experimental settings and routines for automatic acquisition and processing (rpar WLOGSY_PREP, WLOGSY and STDDIFFESGP.3). Parameter sets for T₂ and T_1r are available on request (stefan.jehle@bruker.com).

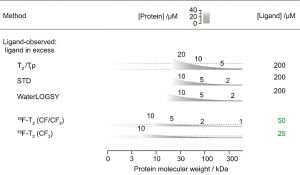

• The diagram to the left is a guideline for choosing the right protein concentration for each experiment
• The protein concentration and fragment to protein ratio strongly depend on the molecular weight (MW) of the protein
• As larger the protein, as higher the ratio can be chosen
• For targets with low sample availability the ratio can be as high as ~1:200
• The use of fragment cocktails strongly reduces measurement time. Typical number of fragments per cocktail is <10 and <30 for ¹H and ¹⁹F screening, respectively

Conclusion

Ligand observed NMR is an automated fragment screening technique that yields high quality hits in primary and secondary screens. Nowadays, parameter sets with optimized measurement conditions are available which significantly facilitates the setup of NMR-based screening experiments, even for novice users. In addition, a key advantage is the QC of fragments from 1D ¹H spectra which enables the identification of compound degradation and aggregation, avoiding false positives. This is especially useful for confirmation of hits from primary screens performed by using SPR or Thermal Shift.

Further reading:
A.D. Gossert and W. Jahnke, Prog. NMR Spect. 2016

Authors:
Stefan Jehle¹, Helena Kovacs¹, Till Kuehn¹, and Alvar Gossert^2
1 Bruker BioSpin AG, Industriestrasse 26, 8117 Faellanden, Switzerland, ²Novartis Institutes for BioMedical Research, Basel, Switzerland.
