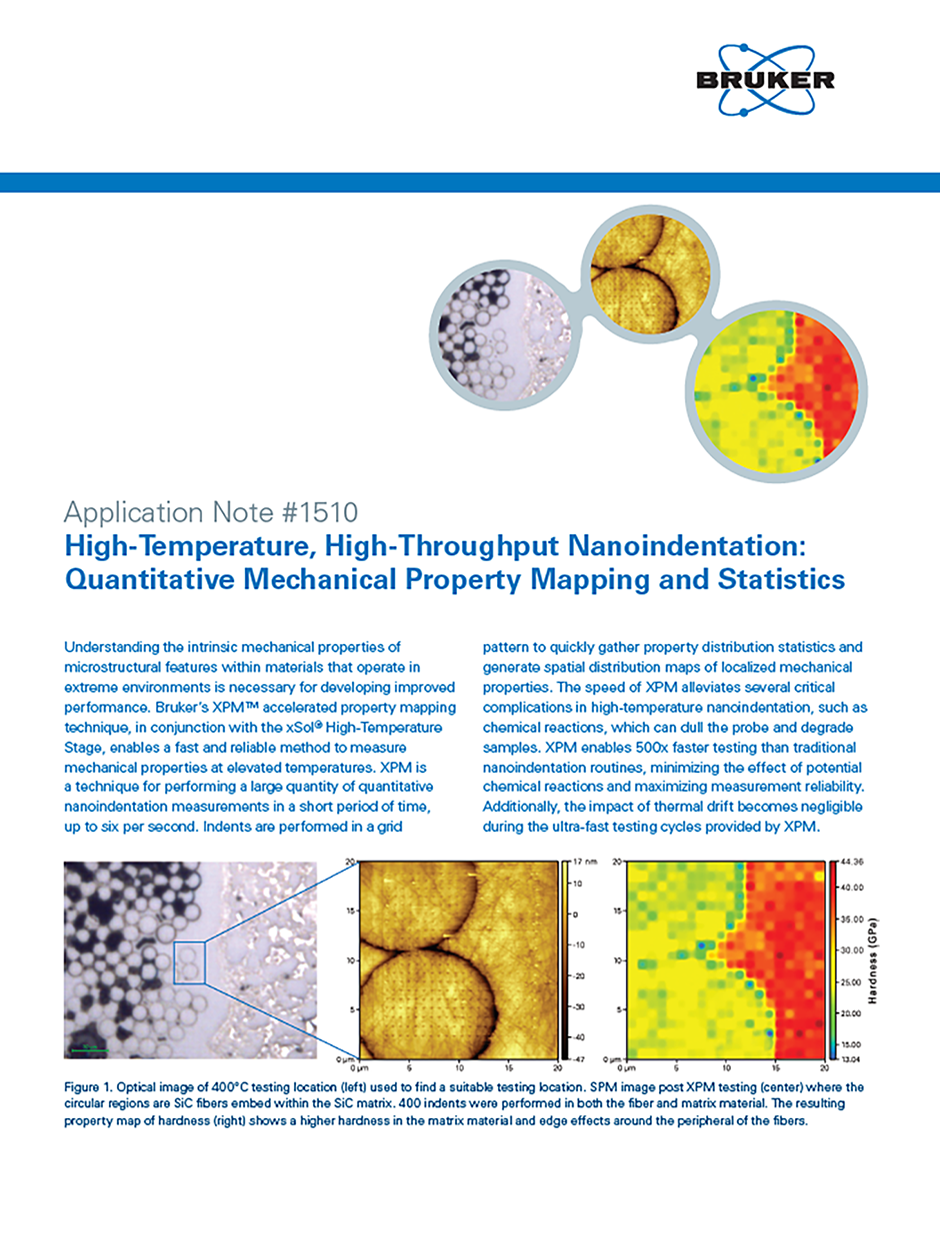

High-Temperature, High-Throughput Nanoindentation: Quantitative Mechanical Property Mapping and Statistics
High-temperature material analysis with XPM™ accelerated property mapping
Understanding the intrinsic mechanical properties of microstructural features within materials that operate in extreme environments is necessary for developing improved performance. Bruker’s XPM™ accelerated property mapping technique, in conjunction with the xSol® High-Temperature Stage, enables a fast and reliable method to measure mechanical properties at elevated temperatures. XPM is a technique for performing a large quantity of quantitative nanoindentation measurements in a short period of time, up to six per second. Indents are performed in a grid pattern to quickly gather property distribution statistics and generate spatial distribution maps of localized mechanical properties. The speed of XPM alleviates several critical complications in high-temperature nanoindentation, such as chemical reactions, which can dull the probe and degrade samples. XPM enables 500x faster testing than traditional nanoindentation routines, minimizing the effect of potential chemical reactions and maximizing measurement reliability. Additionally, the impact of thermal drift becomes negligible during the ultra-fast testing cycles provided by XPM.
Procedure
A Hysitron® TI 980 TriboIndenter® equipped with a xSol High Temperature Stage were used in combination with XPM to characterize the mechanical properties of a silicon wafer and a silicon carbide fiber-matrix composite at 400°C and 800°C. A diamond Berkovich probe was used and each sample was kept in a 95% argon, 5% hydrogen atmosphere throughout testing. A tip area function was performed on fused quartz before and after testing; no measurable tip degradation was observed.
Silicon: A 10 x 10 grid of indents was performed at each temperature with a 7 mN peak load and 5 µm indent spacing. Each grid of 100 indents took 30 seconds to complete.
Silicon Carbide: A 20 x 20 grid of indents was performed at each temperature with a 4 mN peak load and 750 nm indent spacing. Each grid of 400 indents took 100 seconds to complete. The grid location was chosen such that both the matrix and fibers were indented during a single test.

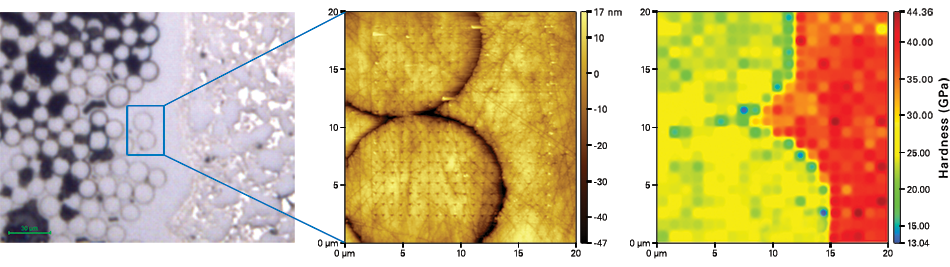

A combination of optical imaging and scanning probe microscopy (SPM) was used for precise positioning of the grid as shown in Figure 1.
Results

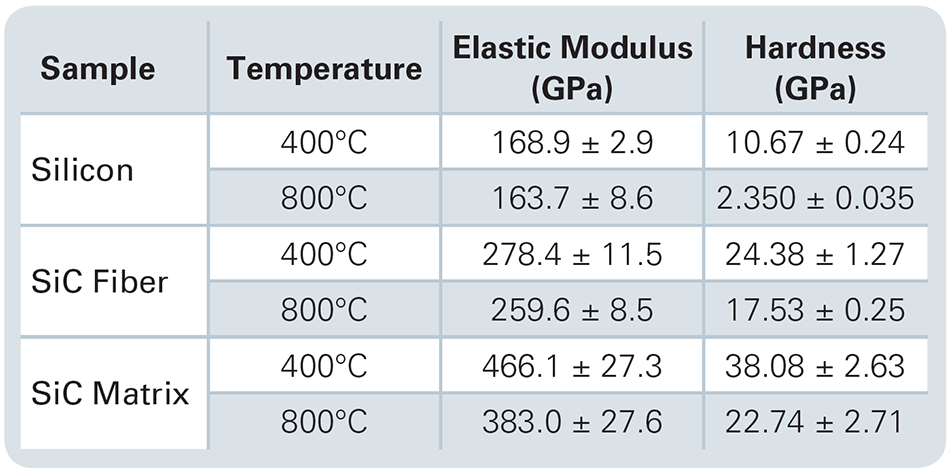

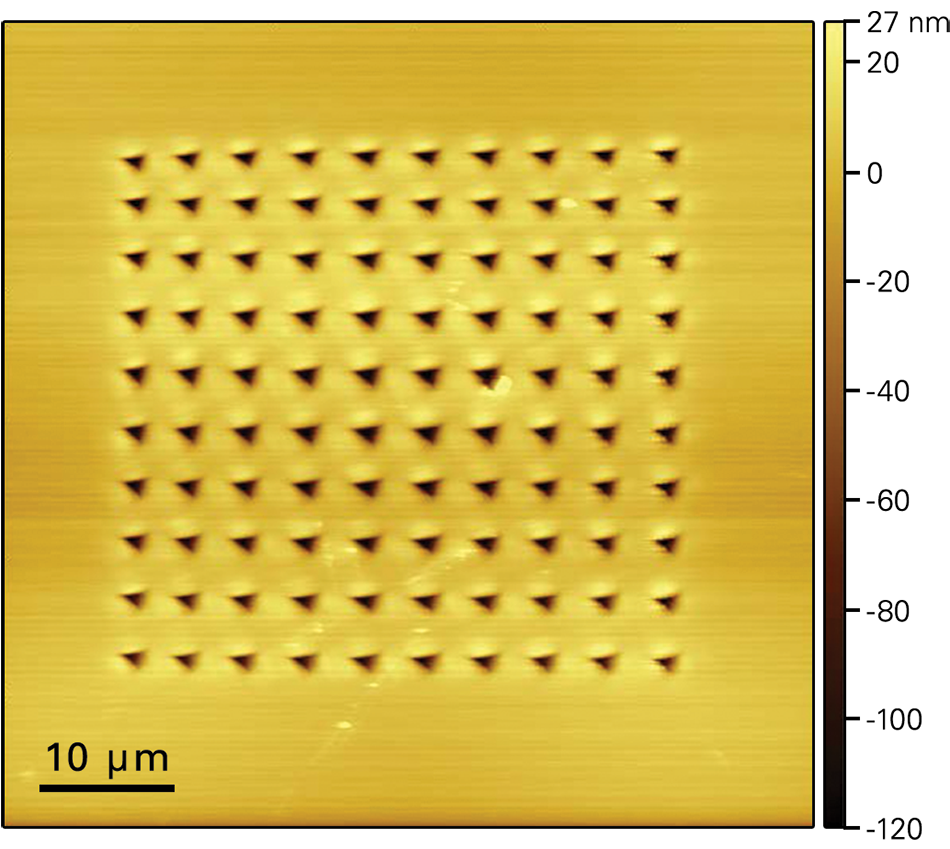

The measured elastic modulus and hardness of silicon at 400°C and 800°C are shown in Table 1. The hardness of silicon at 400°C is close to that of room temperature, but decreased dramatically at 800°C. An in-situ SPM image of silicon taken at 800°C after an XPM test is shown in Figure 2.

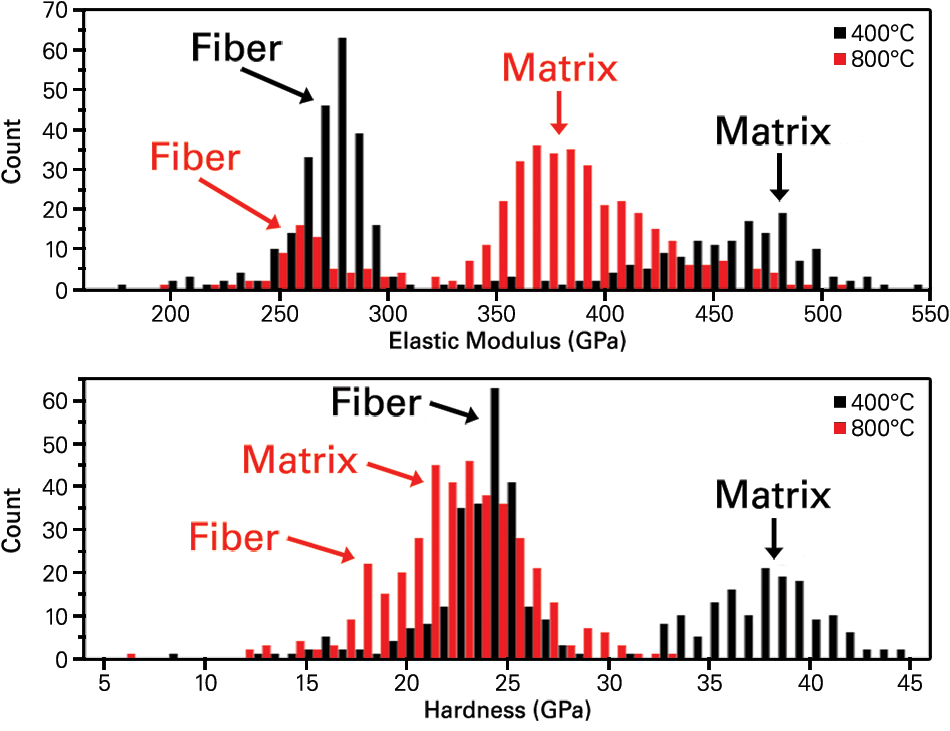

Histograms of the reduced modulus and hardness of the SiC fiber-SiC matrix composite are shown in Figure 3. The matrix was observed to have a higher hardness and modulus at both temperatures. However, the hardness of the matrix decreased by a much greater magnitude with increasing temperature. At 800°C the hardness of the fiber and matrix are almost indistinguishable.
The hardness and elastic modulus were obtained by fitting a double Gaussian to the histogram results. Adjusted R squared values ranged between 0.91 and 0.98. The resulting values are shown in Table 1.
Conclusions
The hardness of silicon decreases dramatically at high temperature as the material transitions from a brittle to ductile material. For SiC, the properties of the fiber and matrix change at different rates, with the fiber retaining more of its mechanical strength at increasing temperatures. The combination of Bruker’s xSol heating stage with XPM allows for rapid determination of mechanical properties, enabling localized material properties to be thoroughly characterized and tuned for their intended operating temperature.
