Ellipsometry and Reflectometry Systems

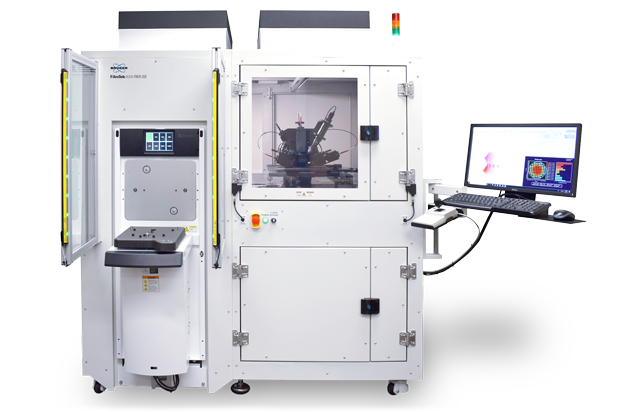

FilmTek 6000 PAR-SE Robotic

Multi-angle reflectometry and ellipsometry for front-end production measurement of thin films and multi-layers

FilmTek 6000 PAR-SE Robotic

The FilmTek™ 6000 PAR-SE combines patented Multi-Angle Differential Polarimetry (MADP) and Differential Power Spectral Density (DPSD) technology to independently measure film thickness and index of refraction. By independently measuring index and thickness, the FilmTek 6000 PAR-SE is far more sensitive to changes in films, particularly films within multi-layer stacks, than existing metrology tools that rely on conventional ellipsometry and reflectometry techniques. This is ideal for both ultra-thin and thick multi-layer film stacks used in forming complex device structures.

1x nm node
inspection and metrology
Provides targeted, high-efficiency solutions to the challenges of leading-edge IC device manufacturing and production.
Scalable
PAR-SE technology and configuration
Delivers industry-leading measurement performance on 200 mm and 300 mm wafers.
Optimized
complex film monitoring
Enables uniformity and gradient thickness monitoring of extremely thin films within multilayer stacks.
Learn more about this instrument.
Contact Us
Features

Measurement Capabilities

Enables simultaneous determination of:

  • Multiple layer thicknesses
  • Indices of refraction [ n(λ) ]
  • Extinction (absorption) coefficients [ k(λ) ]
  • Energy band gap [ Eg ]



  • Composition (e.g., %Ge in SiGex, % Ga in GaxIn1-xAs, %Al in AlxGa1-xAs, etc.)
  • Surface roughness
  • Constituent, void fraction



  • Crystallinity/Amorphization (e.g., of Poly-Si or GeSbTe films)
  • Film gradient

System Components

Standard:

  • Spectroscopic ellipsometry with rotating compensator design (295 nm - 1700 nm)
  • Multi-angle, polarized spectroscopic reflection (190 nm - 1700 nm)
  • Measures film thickness and index of refraction independently
  • Multi-Angle Differential Polarimetry (MADP) technology with SCI’s patented Differential Power Spectral Density (DPSD) technology
  • Ideal for measuring ultra-thin films (0.03 Å repeatability on native oxide)
  • Patented parabolic mirror technology – small spot size measures within a 50×50 µm feature
  • Cassette to cassette wafer handling
  • Pattern recognition (Cognex)
  • FOUP or SMIF compatible
  • SECS/GEM
  • Advanced material modeling software
  • Bruker's generalized material model with advanced global optimization algorithms
Applications

Typical Application Areas

Front End Semiconductor

Perform fast, accurate, and repeatable multi-layer film thickness and refractive index measurements on patterned device wafers for front end semiconductor manufacturing.

FilmTek systems enable process control of oxides, nitrides, ONO, Oxide / Nitride / Cu, polysilicon / oxide, AlN, TaN, TiN, SiGex and composition control, resist, Si3N4/GaAs, ARC, gate oxide, and GaAs films, CMP on Cu, and many other materials encountered throughout the entire wafer fabrication process.

Technical Specifications

Film Thickness Range 0 Å to 150 µm
Film Thickness Accuracy ±1.0 Å for NIST traceable standard oxide 100 Å to 1 µm
Spectral Range 190 nm - 1700 nm (220 nm - 1000 nm is standard)
Measurement Spot Size 50 µm
Sample Size 2 mm - 300 mm (150 mm standard)
Spectral Resolution 0.3 nm - 2nm
Light Source Regulated deuterium-halogen lamp (2,000 hrs lifetime)
Detector Type 2048 pixel Sony linear CCD array / 512 pixel cooled Hamamatsu InGaAs CCD array (NIR)
Computer Multi-core processor with Windows™ 10 Operating System
Measurement Time ~2 sec per site (e.g., oxide film)

Performance Specifications

Film(s) Thickness Measured Parameters Precision ()
Oxide / Si 0 - 1000 Å t 0.03 Å
1000 - 500,000 Å t 0.005%
1000 Å t , n 0.2 Å / 0.0001
15,000 Å t , n 0.5 Å / 0.0001
150.000 Å t , n 1.5 Å / 0.00001
Nitride / Si 200 - 10,000 Å t 0.02%
500 - 10,000 Å t , n 0.05% / 0.0005
Photoresist / Si 200 - 10,000 Å t 0.02%
500 - 10,000 Å t , n 0.05% / 0.0002
Polysilicon / Oxide / Si 200 - 10,000 Å Poly , t Oxide 0.2 Å / 0.1 Å
500 - 10,000 Å Poly , t Oxide 0.2 Å / 0.0005
