4H-SiC substrates are ideal for power electronics, RF devices, and sensors. Ion implantation is a key step in SiC device fabrication that relies heavily on precise control over dopant distribution. Accurate wafer offcut characterization is therefore essential for achieving high device performance and reliability. This application note describes how Bruker’s QCVelox high-resolution X-ray diffraction (HRXRD) system is a powerful tool to optimize ion implantation processes for 4H-SiC substrates by accurately and precisely determining offcut angle.
Contents include:
KEYWORDS: High-Resolution X-Ray Diffraction; HRXRD; QCVelox; AN5200; Bruker; Application Note; SiC; Offcut; Miscut; Compound Semiconductor; Automation

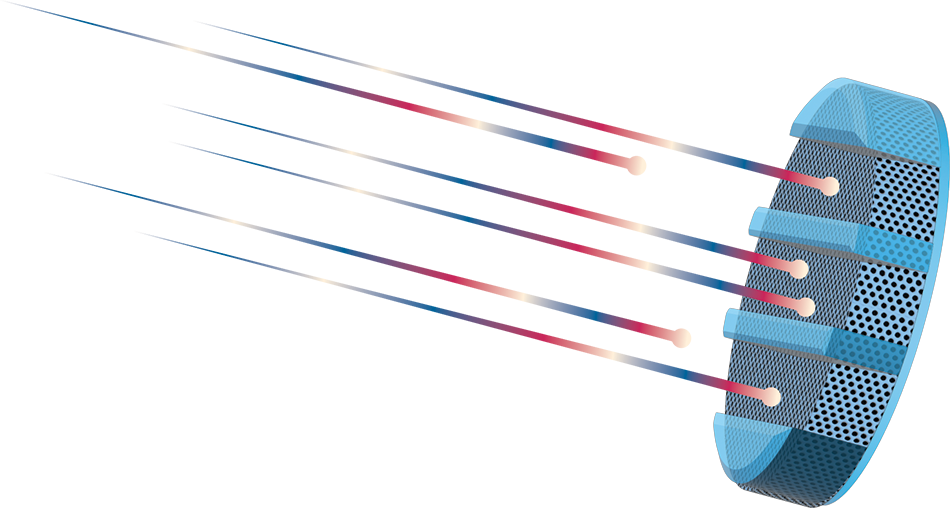

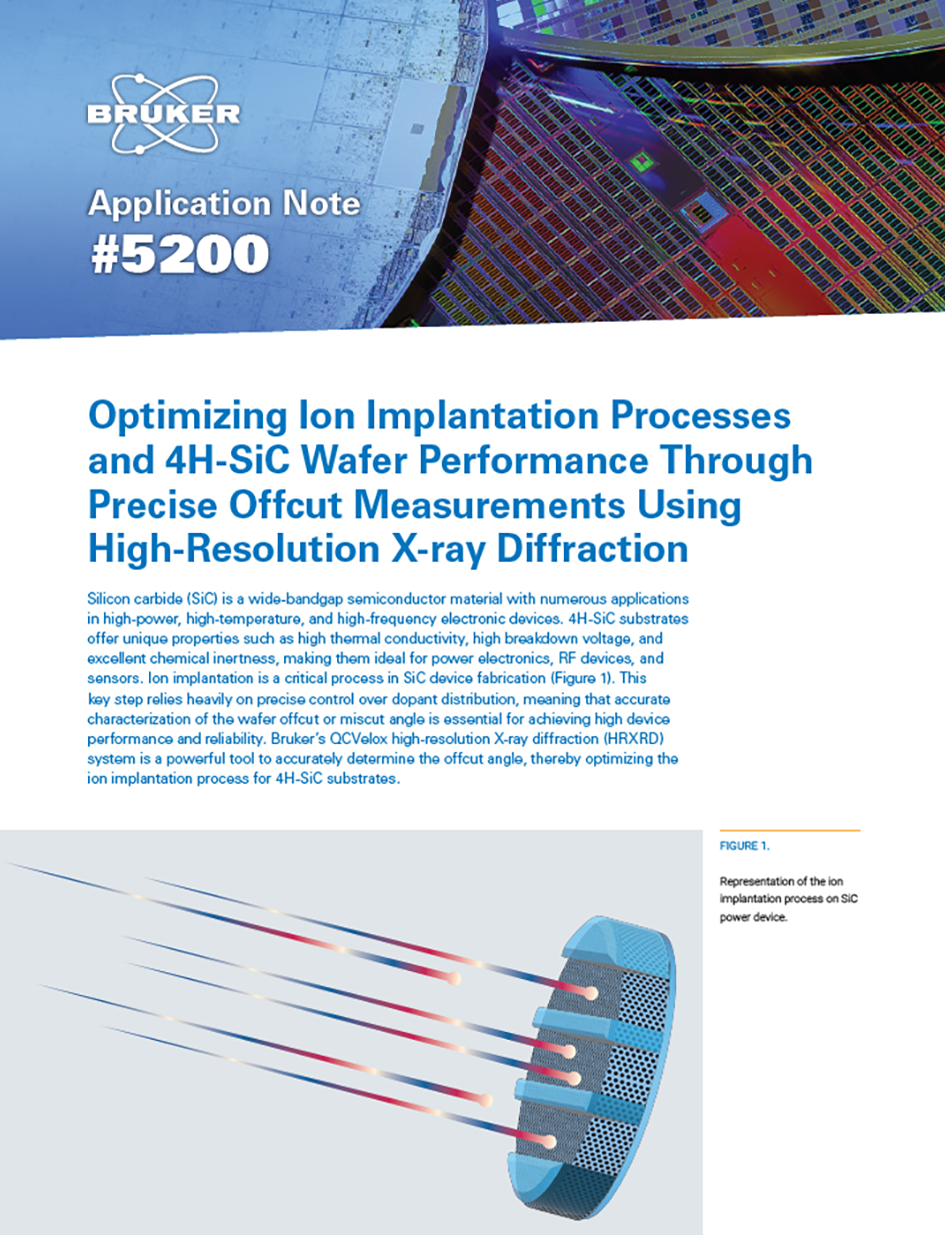

Silicon carbide (SiC) is a wide-bandgap semiconductor material with numerous applications in high-power, high-temperature, and high-frequency electronic devices. 4H-SiC substrates offer unique properties such as high thermal conductivity, high breakdown voltage, and excellent chemical inertness, making them ideal for power electronics, RF devices, and sensors. Ion implantation is a critical process in SiC device fabrication (Figure 1). This key step relies heavily on precise control over dopant distribution, meaning that accurate characterization of the wafer offcut or miscut angle is essential for achieving high device performance and reliability. Bruker’s QCVelox high-resolution X-ray diffraction (HRXRD) system is a powerful tool to accurately determine the offcut angle, thereby optimizing the ion implantation process for 4H-SiC substrates.
The offcut angle of a 4H-SiC substrate plays a critical role in determining the quality and performance of SiC devices. It is well known that defects in SiC are oriented parallel to the growth direction. As a result, an intentional offcut is imparted on SiC substrates to preserve the underlying 4H-SiC crystal and allows the defects to have a predictable orientation during epitaxial growth. Accurate offcut angle control is important for crystal quality, channel suppression, and defect engineering precision.
While offcut is important for both silicon (Si) and SiC wafers, its accuracy is more critical for SiC wafers due to its higher sensitivity to crystal defects. The offcut angle in Si wafers affects crystal defects and dislocations, but the impact is generally less severe compared to SiC because of the wider bandgap in SiC and higher operating temperatures, where defects propagate and lead to a higher density of crystallographic and surface defects. Therefore, precise offcut in SiC is crucial for device performance and reliability, as it is essential for minimizing defects and ensuring high crystal quality.
HRXRD offers several advantages for accurately and precisely measuring wafer offcut angles in 4H-SiC substrates, including:

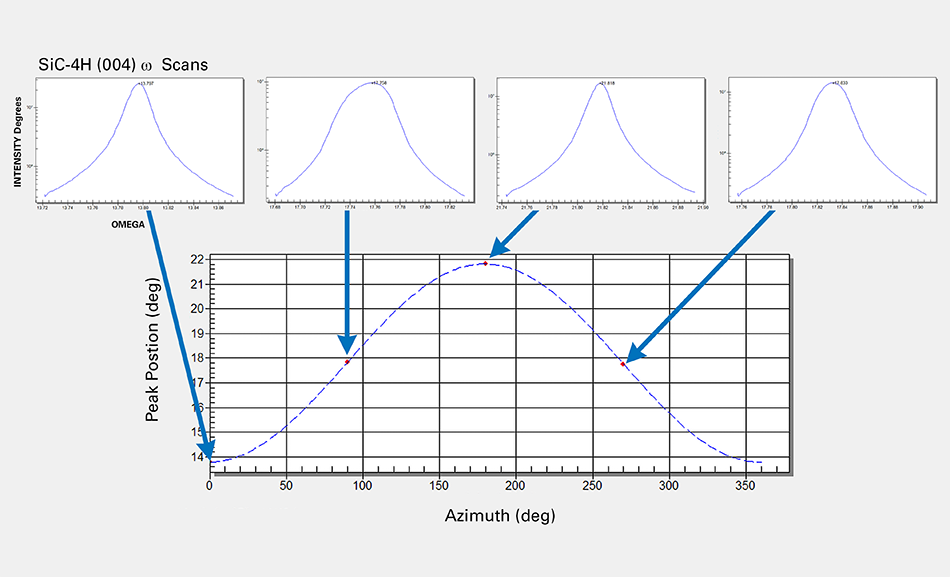

HRXRD is a power reference metrology technique used within silicon and compound semiconductor manufacturing. Bruker’s advanced HRXRD systems enable an additional level of sensitivity to subtle changes in wafer offcut, with unparalleled accuracy and precision. This is achieved by measuring a series of high-resolution rocking curves (ω scans) at different azimuth (φ) angles to calculate the offcut magnitude and direction from the diffracted angles, as shown in Figure 2. This sequence of measurements is fully recipe-driven and the analysis can be automated in the Bruker analytical software.
Furthermore, the precise offcut measurements could be further optimized and performed more rapidly if the nominal wafer thickness and expected offcut information are provided as a reference for offcut refinement. This is especially advantageous in high-volume manufacturing where the nominal wafer thicknesses and offcuts are well controlled. Recent tests performed on a dedicated high-intensity Bruker QCVelox HRXRD diffractometer showed a typical 200 mm 4H-SiC wafer with an expected 4° offcut can be measured in under 60 seconds with both accuracy and precision of <0.005° for offcut magnitude and <0.01° for offcut direction compared to the traditional method illustrated in Figure 2. This technique is suitable for the characterization of all common semiconductor substrates, including SiC, Si, GaAs, InP, GaN, and others.
Ion implantation stands as a critical process in 4H-SiC semiconductor manufacturing, necessary for precise control over dopant distribution and device characteristics. By leveraging HRXRD for accurate wafer offcut, semiconductor manufacturers can optimize ion implantation processes and advance device performance in 4H-SiC–based electronics, driving innovation and enabling new applications in the electronics industry.
