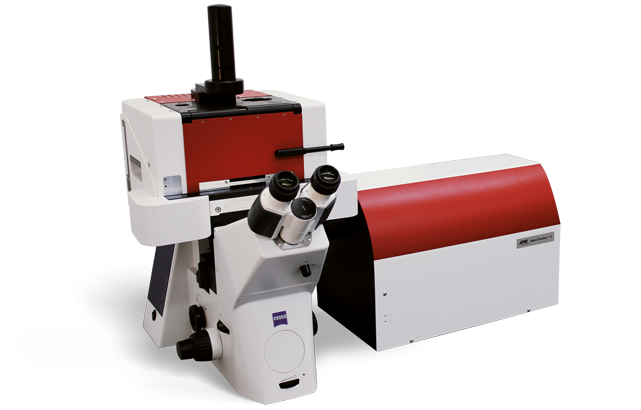

NanoTracker 2

Using the power of light, optical tweezers enable the non-invasive investigation of advanced materials, biological matter, and even living organisms, delivering profound insights into complex biophysical phenomena and the nanoscale properties of materials.

This easy-to-use, turn-key platform delivers outstanding spatial, temporal, and force resolutions. NanoTracker 2 offers unrivalled flexibility. From straightforward manipulation experiments to the measurement and postition tracking of multiple traps, it generates fast results and highly accurate data.

Only NanoTracker 2 delivers:

• Multiplexed trapping
• Investigation of microrheological properties
• Integration with advanced optical microscopy techniques, e.g., epifluorescence, STED, TIRF, confocal, DIC, Raman etc.
• Combination with AFM for innovative experiments
• Versatile, tunable laser power options up to 10W

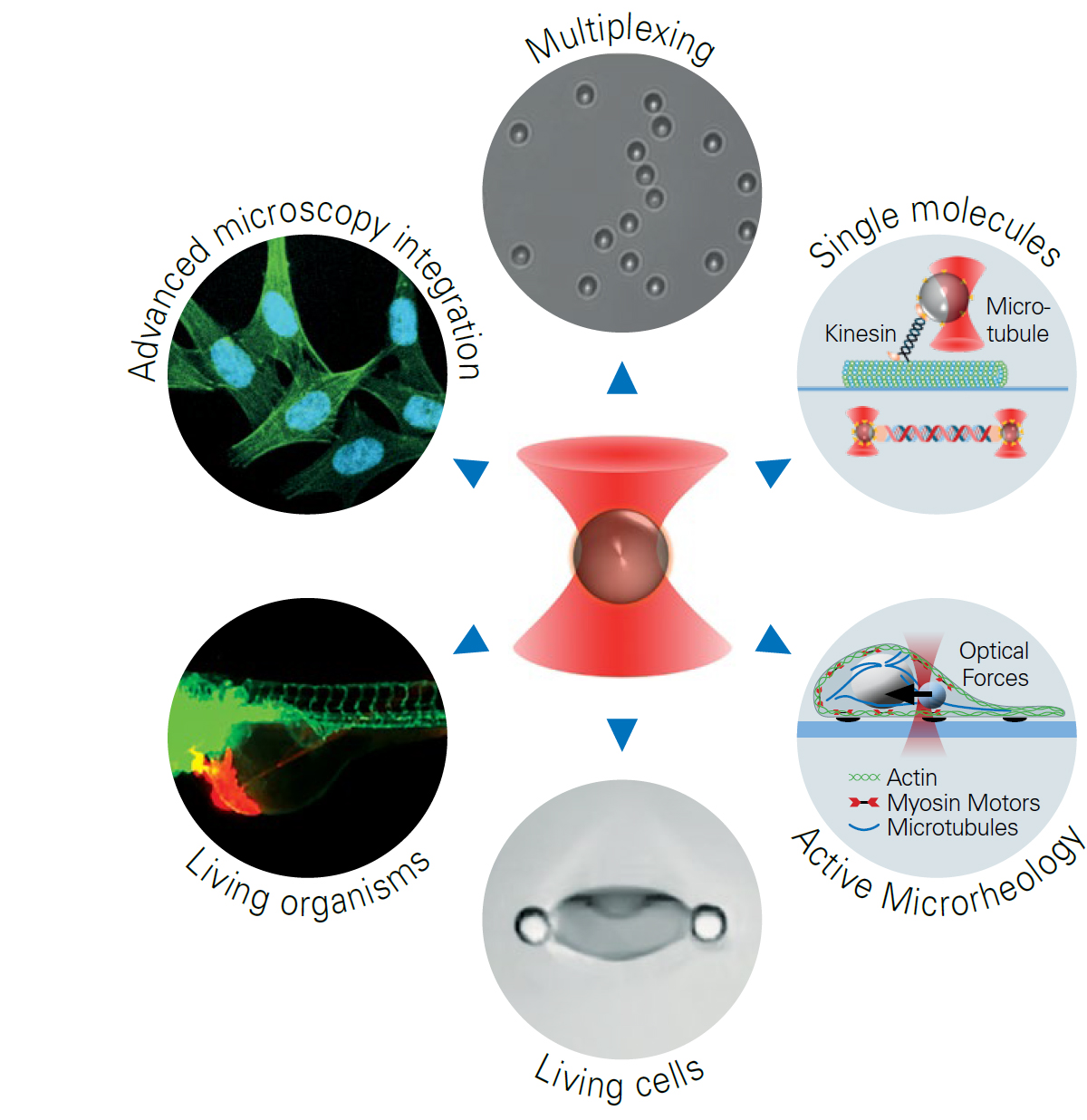

NanoTracker 2 enables an extensive range of unique applications:

• Single-molecule experiments
• Correlative optical experiments, e.g., complex single-molecule fluorescence setups
• Quantification of cell mechanics, adhesion, and dynamics
• Investigation of virus-host cell interactions
• Optical trapping and manipulation inside living cells and organisms
• Advanced materials research

Live Cell Experiments

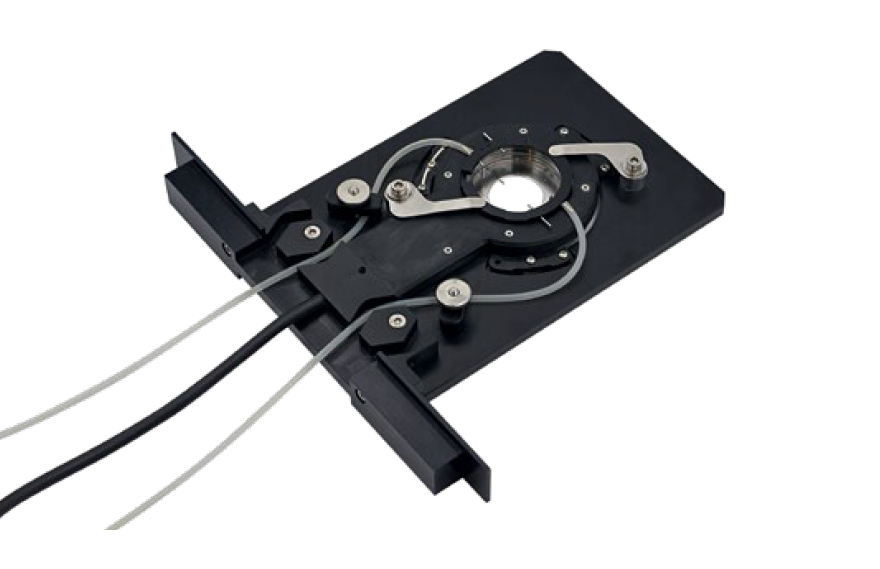

Environmental control accessories, such as the PetriDishHeater, enable live cell experiments and the investigation of cell cultures in glass-bottom Petri dishes (35mm). Study cell mechanics and dynamics under near native conditions with:

• Temperature control: ambient to 60°C
• CO₂ atmosphere and fluid exchange
• Suitable for long-term experiments

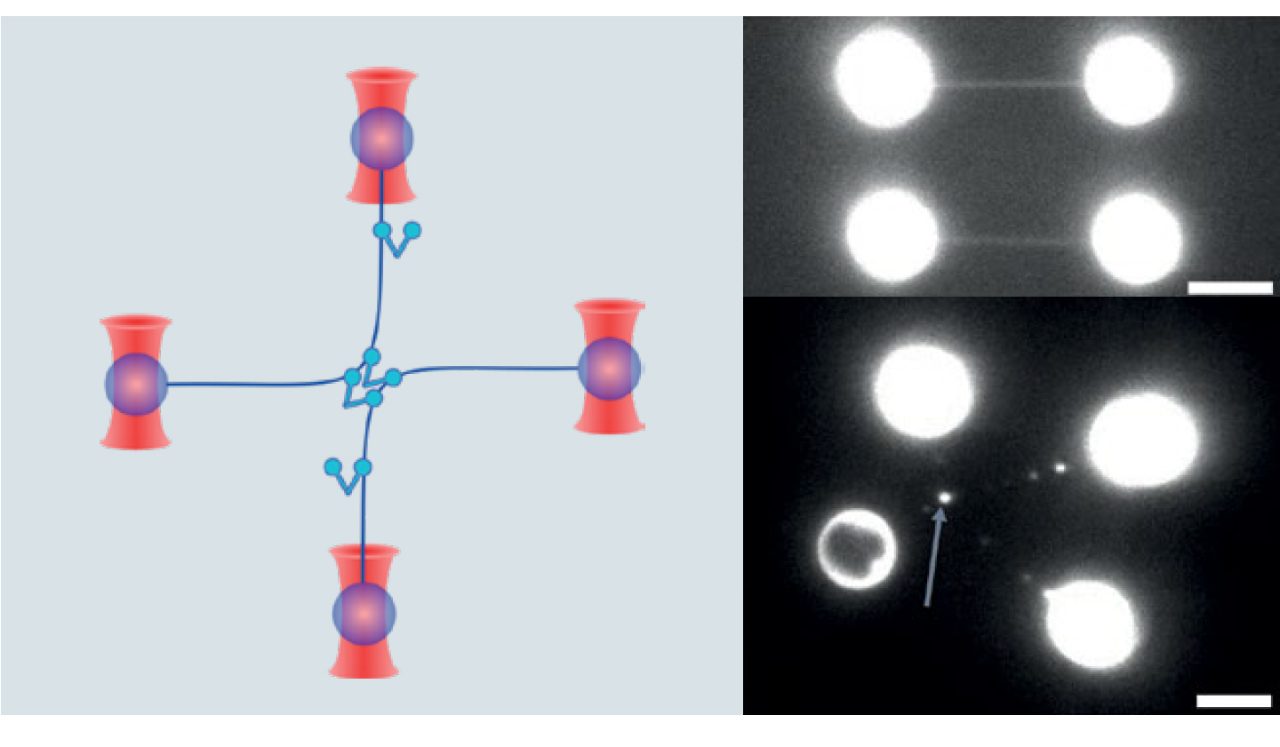

Multiplexing and Demultiplexing

The highly stable trapping beam in single and double-beam configurations allows flexible and precise sample manipulations. Fast acousto-optic deflectors (AODs) and a laser-time-sharing principle enable multiplexing and demultiplexing setups, for advanced experiments and precise control of multimolecular complexes.

NanoTracker 2 delivers:

• Simultaneous 3D manipulation and control of up to 256 particles in individual optical traps
• Demultiplexing enables force measurements with up to 8 time-shared traps
• Individual calibration of up to 8 time-shared traps

Advanced Optical Integration

NanoTracker 2 operates on research-grade inverted optical microscopes and can be seamlessly integrated with advanced optical microscopy techniques for enhanced experiment designs that deliver crucial insights into fundamental biological mechanisms.

The modular setup allows access to optical ports and the use of a wide range of commercial cameras, shutters, filters, detectors, and illumination options for unparalleled versatility:

• Localization of specific regions of interest that can then be investigated with optical tweezers
• Highly selective force measurements or manipulations guided by advanced optical techniques, such as fluorescence microscopy
• 1064 nm trapping laser does not inhibit the acquistion of the optical data

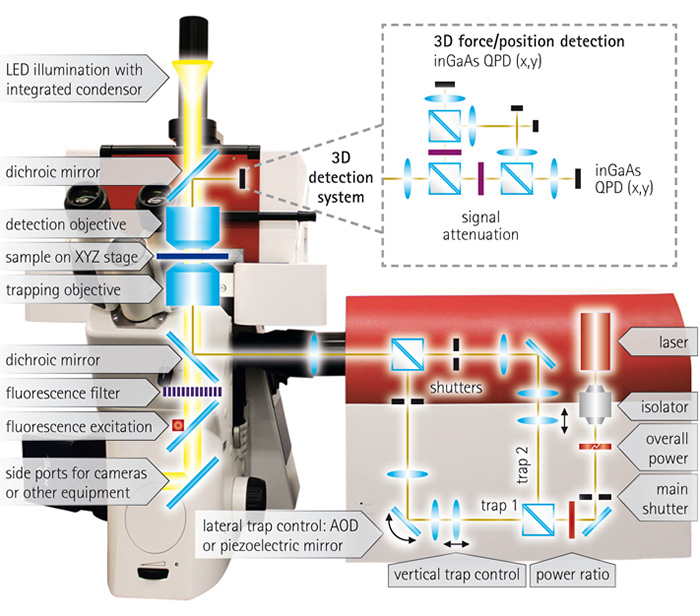

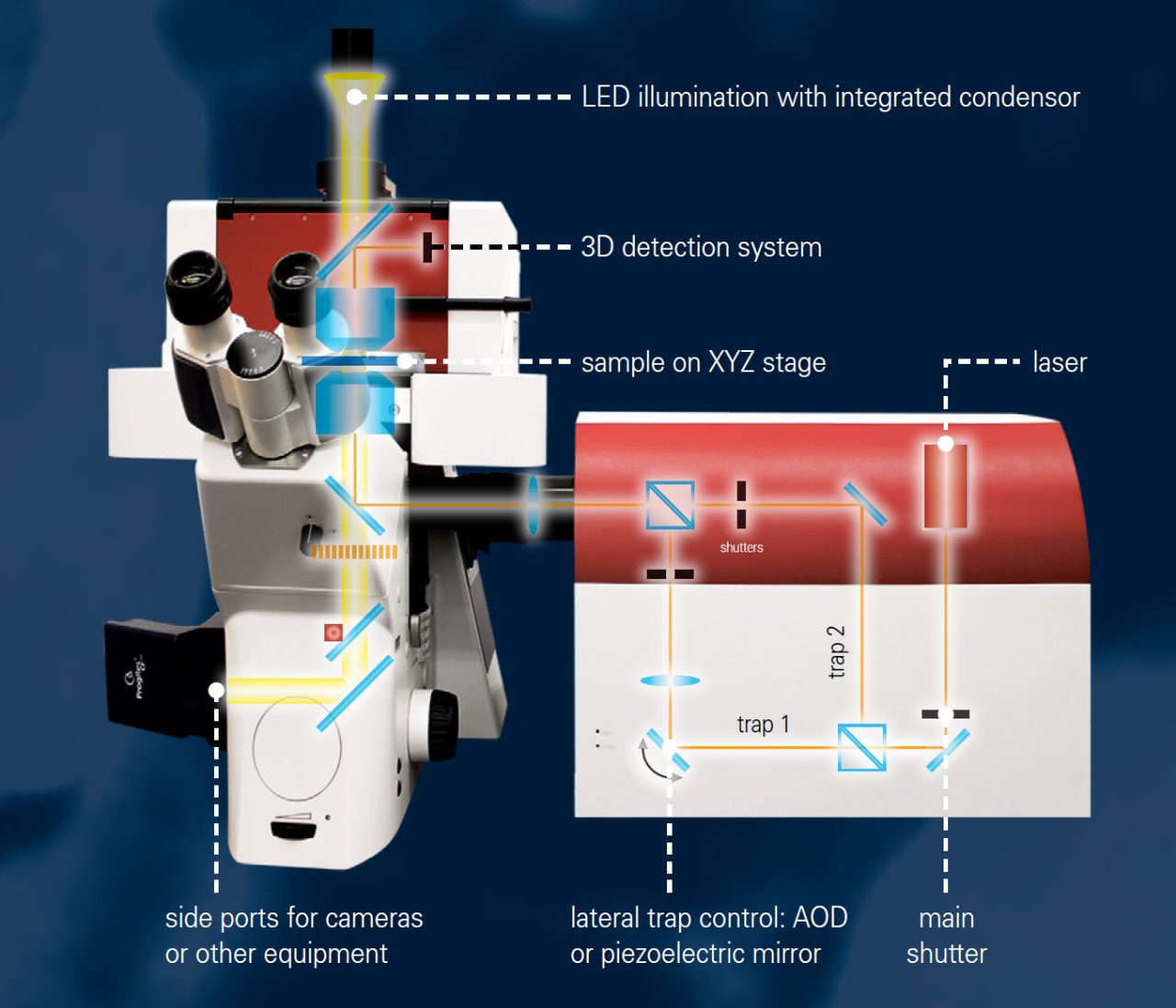

High-Performance Hardware

Mechanically robust design and select optical components guarantee stable laser intensities and trap split ratios, ensuring accurate, highly sensitive force and displacement measurements:

• Multiple beam-steering options, high-resolution piezo-driven mirrors, and fast AODs provide precise positioning and fast movement of traps and particles
• Minimized drift via a single, highly stable laser source and sensitive, drift optimized-detection electronics
• Optional piezo sample stage for precise sample positioning
• 3D recording of individual trap position and force via independent detectors for each trap, for minimal crosstalk

Precise Trap Calibration

Accurate force measurements require precise trap calibration.

NanoTracker 2 delivers:

• One-click trap calibration
• Lowest position noise and consistent trap stiffness over a large field of view

Cutting-Edge Electronics

At the center of the NanoTracker 2’s stability, nanometer-precise position accuracy, and lowest noise levels is the high-performance electronics control unit.

External equipment, such as advanced cameras, spectrometers, and detectors (e.g., PMTs or APDs), can be integrated or triggered using TTL signals.

The high-bandwidth controller ensures real-time data acquisition, feedback, and response - essential for force clamp experiments and sensitive control of particle motion.

Intuitive Software

The straightforward, flexible, and userfriendly software of the NanoTracker 2 provides:

• Fast, intuitive control of all motorized components, e.g., objectives, sample stage, and syringe pumps
• Scriptable software interface for automated experiment workflows. Suitable for beginners and experienced users alike
• Powerful DataProcessing software with models for single-molecule force spectroscopy (worm-like chain, freely jointed chain, etc.) and stepfitting routines




Safe by Design

NanoTracker 2 is a certified Class 1 laser  product and suitable for multidisciplinary environments. A designated laser laboratory is not required.

• No specific laser safety training necessary
• Suitable for biological experiments: All components are protected from liquids

A wide range of add-ons, accessories, experimental modes, and features greatly extend the scope of applications possible. These include:

Point and Trap functionality:
a “live” optical image is seamlessly integrated for easy control of trap positions

Absolute Force Spectroscopy:
performs force-distance experiments by moving the trap or sample at user specified speed and direction

Ramp Designer:
for customized force spectroscopy experiments, such as force ramp and force clamp

CalibrationManager:
one-click calibration of trap stiffness and position detection system

ExperimentPlanner module:
easy design of customized experiment routines and automation scripts

Precise calibration of optical image:
enables highly precise positioning of trap

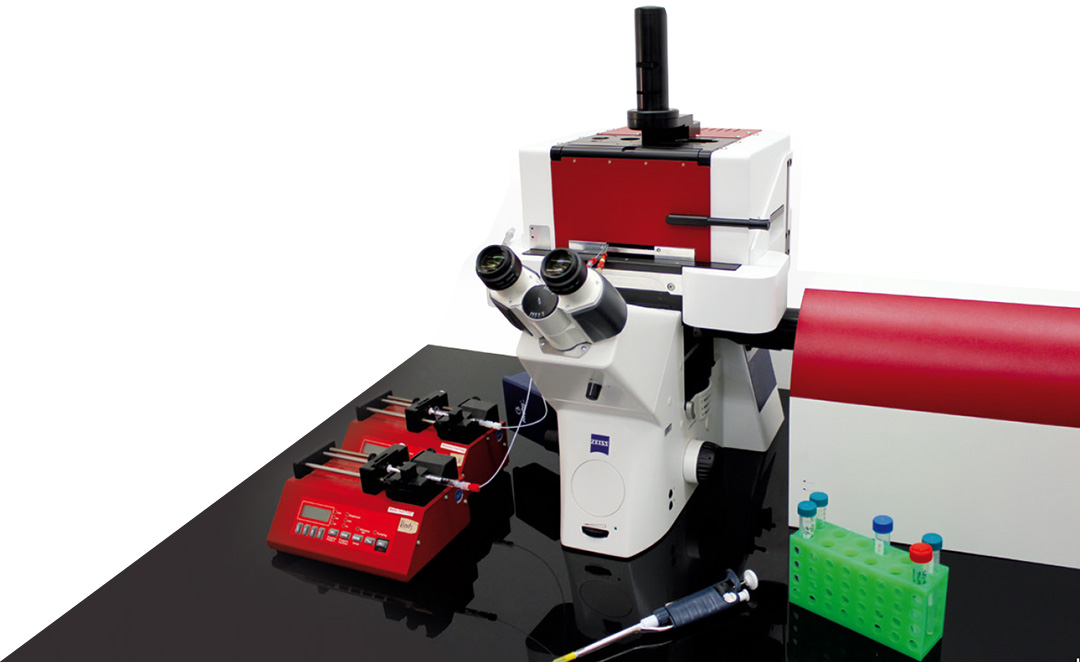

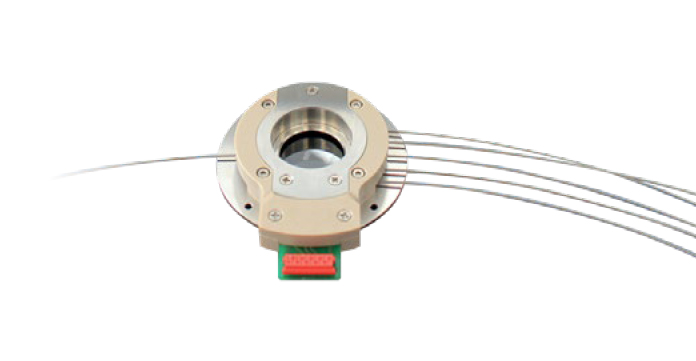

LaminarFlowCell (LFC) for Single-Molecule Applications

The multichannel LFC is a coverslip-based fluid cell with laminar flow perfusion capabilities. It is ideal for multi-component samples or multistep experiments. Features include:

• Up to five separate input channels, one output channel, and variable channel heights
• Software-controlled syringe pumps for automated fluid flow and exchange
• Sample heating up to 45 °C

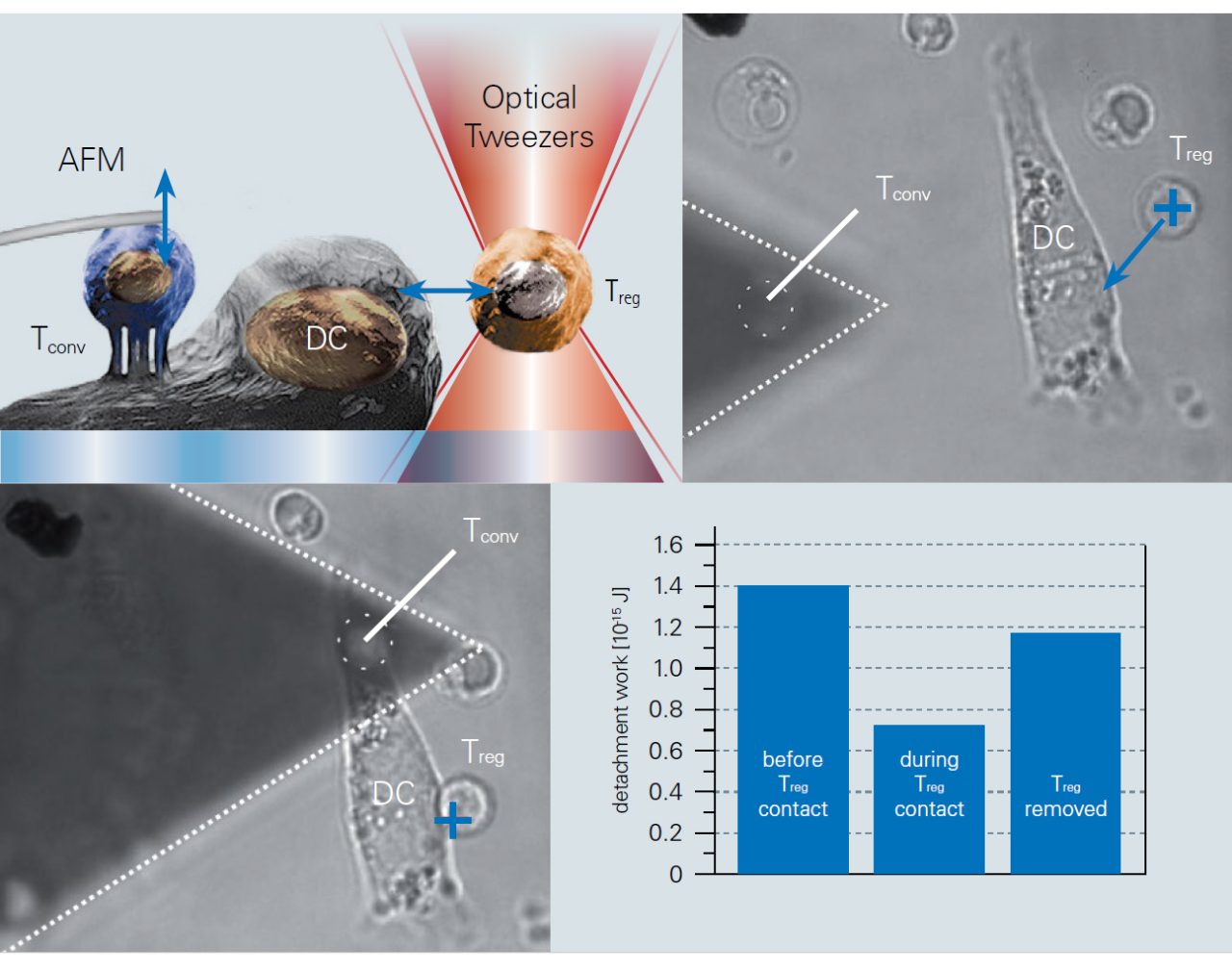

Combination with AFM (OT-AFM)

NanoTracker 2 can be seamlessly combined with Bruker’s NanoWizard AFM platform via the OT-AFM ConnectorStage.

This setup combines the 3D positioning and manipulation capabilities of optical tweezers with the high-resolution imaging, force detection, and surface property characterization capabilities of AFM, opening an entirely new spectrum of applications:

• Enables the measurement of forces in the range of 500 fN to 1mN on the same sample
• Combine OT-AFM with optical techniques, such as TIRF and confocal microcopy, for comprehensive samples analyses

Live Cell Applications

Advanced environmental control options allow the investigation of living cells under near-physiological conditions:

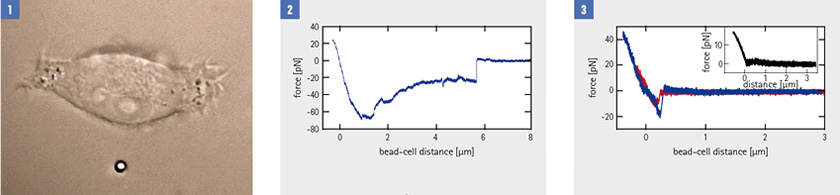

• Study the mechanisms of infection, immune response, and bacterial/virus/nanoparticle uptake processes. Quantify bacteria-cell or virus-cell adhesion and interaction forces

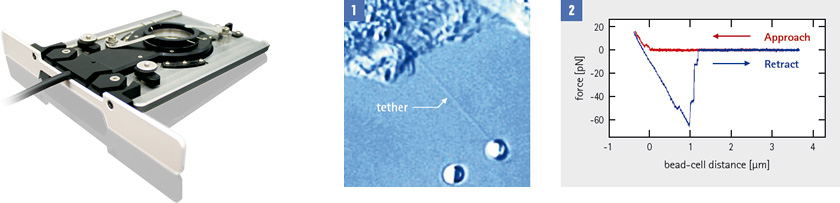

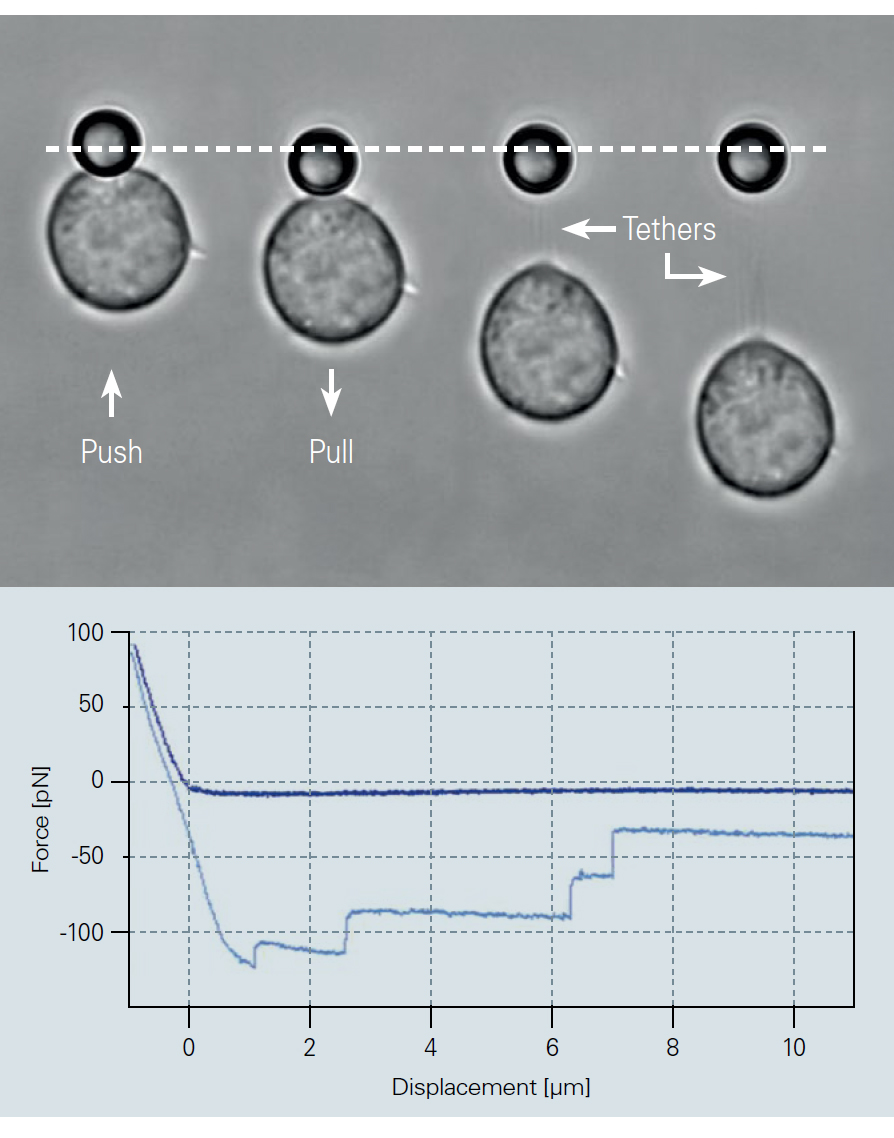

• Perform membrane tether pulling and cell indentation experiments
• Quantify the mechanical properties of living cells, their adhesion forces, and dynamic mechanisms
• Investigate protein-ligand binding events
• Trigger cellular response using functionalized particles or modified micro-organisms
• Study cell-cell, cell-surface, or cell-matrix interactions

Cell Manipulation

As well as applying and measuring forces, NanoTracker 2 can be used to manipulate cells directly with optical traps:

• Sort, deform, relocate, or stretch cells
• Manipulate particles or organelles inside living cells

Microrheology Applications

NanoTracker 2 enables the investigation of the microrheological properties of a broad range of samples, such as cells, soft matter, or gels.

• Quantify the viscoelastic and mechanical behavior of soft materials, biological matter, and emulsions
• Perform non-destructive, highly sensitive measurements in delicate systems
• Collection of bead movement spectra at up to 7.5 MHz
• High power laser option (up to 10W) for advanced viscoelastic measurements in highly viscous environments

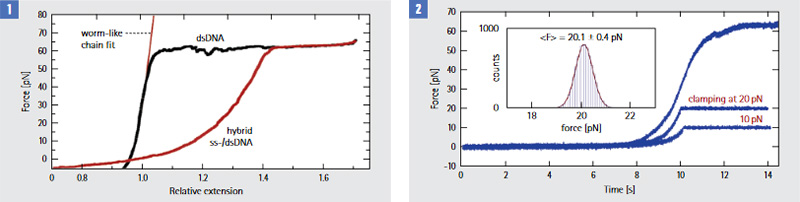

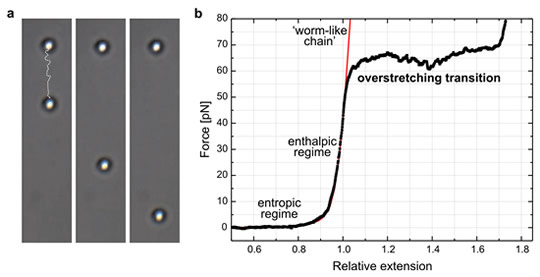

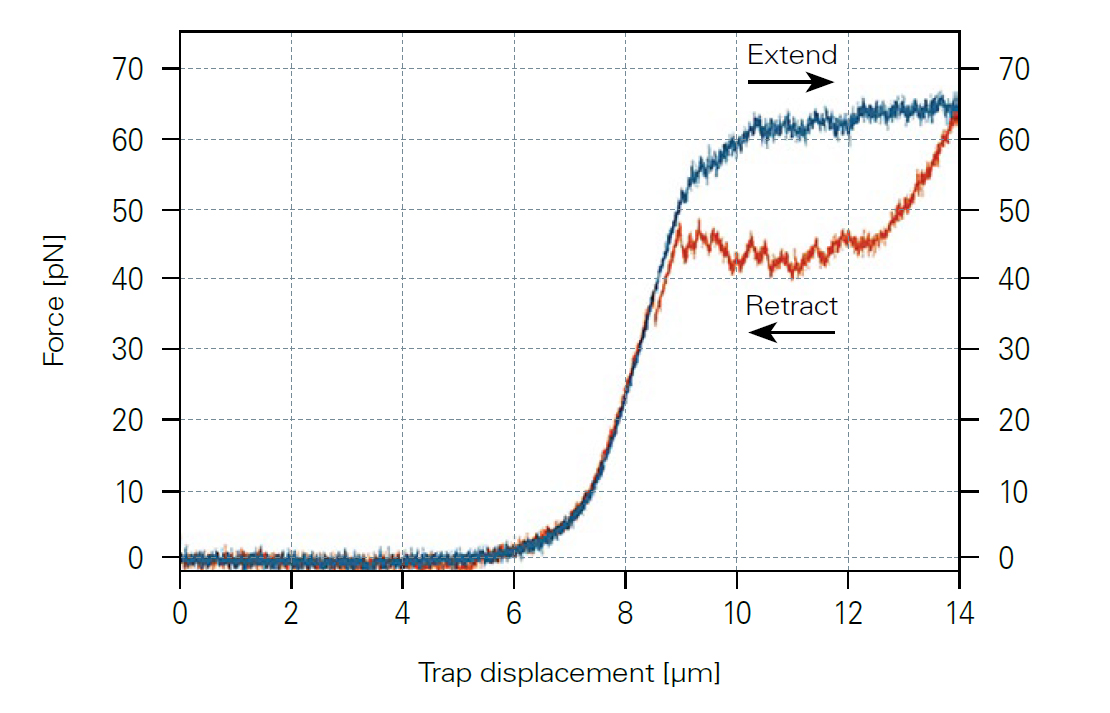

Single-Molecule Mechanics

The high spatial, temporal, and force resolutions of NanoTracker 2 provide the precision and stability necessary to investigate single-molecule mechanics and intramolecular forces.

Perform manipulation experiments at sub-nm, sub-pN, and μs resolution, while executing reproducible, standardized experiments.

3D Tracking

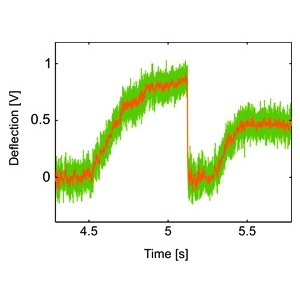

Passive and active 3D tracking (also called force- or position-clamping) are two of the main tools used to investigate processivity and force generation in motor proteins, cell membrane trafficking, binding events, and DNA-polymerase interactions.

The force-clamping feature of NanoTracker 2 applies a force to the sample that is kept constant via the feedback system. This allows researchers to study the response of a molecule to a specific force - useful in the investigation of unfolding or refolding events.

Further Applications


Single-molecules and biopolymers

• Intra-molecular elasticity and protein folding dynamics
• DNA/RNA mechanics
• Protein-DNA binding
• Nanopores and 3D polymer network probing



Cell biology applications

• Membrane organization (e.g., lipid rafts)
• Trans-membrane processes and trafficking
• Intracellular forces
• Receptor-ligand experiments
• Cell mechanics and cell motility

Cell-particle interaction and infection studies

• Tracking of pathogen-host interaction forces
• Bacterial and virus adhesion forces
• Local gene or drug delivery
• Entrance mechanism studies
• Nanotoxicity and endocytosis studies

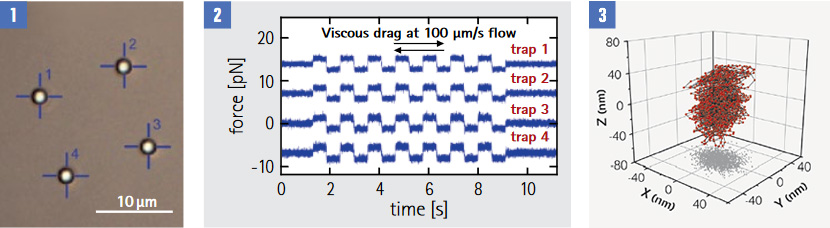

Advanced measurements

• Complex optical trap geometries
• Optical guiding and artificial crystal building
• Local field enhancement and Raman/SERS applications
• Brownian motion tracking, Photonic Force
• Microscopy (PFM)
• Colloidal and polymer meshworks force probing

Optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions and more. Bruker provides you with the right accessories to control your sample conditions and to perform successful experiments.
