ESPRIT Spectrum

ESPRIT Spectrum is the basic software package of all QUANTAX systems that allows spectra acquisition from all available sources (EDS, WDS and Micro-XRF for SEM) and qualitative analysis. It comes with numerous options for fast and efficient spectrometry.

• Spectra acquisition from all installed sources (EDS, WDS, Micro-XRF for SEM) with accurate, hardware-supported real time, live time, or event counter pre-selection
• Automatic spectra correction for all known detector artifacts (escape, shelf, tail, shift, pile-up, etc.)

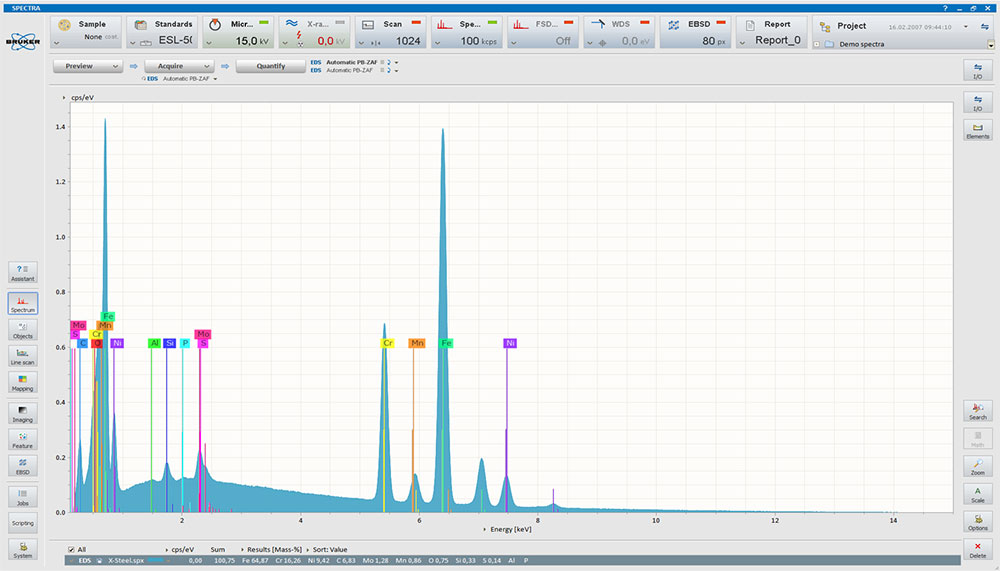

• Multiple spectra display with selectable foreground and background spectra
• Spectrum preview and live spectrum display with down to 100 ms refresh time to support real-time spectrometry
• Fast access spectra buffers for acquired data, batch processing and reference spectra
• Scaling and display options including line markers, logarithmic scaling, cps-scaling, and auto-adjustment
• Interactive element identification tools (Finder, X-ray line browser) based on the world's most comprehensive atomic data library, alternatively automatic identification
• Event counter for any number of selected ROIs and support of up to 8 hardware single-channel analyzers
• Measurement parameter manager and spectrum header editor
• Import and export of various common data formats, graphics export via clip board or image files
• Full system control including hardware profile editor, service functions, and fast auto calibration
• Spectrum mathematics (addition, subtraction, linear combinations)
