Magnetic Force Microscopy (MFM)

Simultaneously image magnetic and topographic properties

The study of magnetic forces at the nanometer scale has long been of interest to investigators of magnetic recording materials, superconductors, and magnetic nanoparticles, among others. Magnetic Force Microscopy (MFM) is a secondary imaging mode derived from TappingMode™ that maps the magnetic force gradient above the sample surface while simultaneously obtaining topographical data.

MFM relies on a patented two-pass technique, LiftMode™. The system alternates scan lines at the sample surface and at a designated lift height above the sample surface, to separately measure topography and magnetic force, respectively.

MFM can be used to image both naturally occurring and deliberately written domain structures in magnetic materials.

PeakForce MFM is a new advance in the field of high-resolution magnetic imaging, offering superior spatial resolution, enhanced sensitivity, added data channels, and the ability to image delicate samples with greater precision.

Request More Information Learn More: The Definitive AFM Modes Handbook

RETURN TO AFM MODES LIST

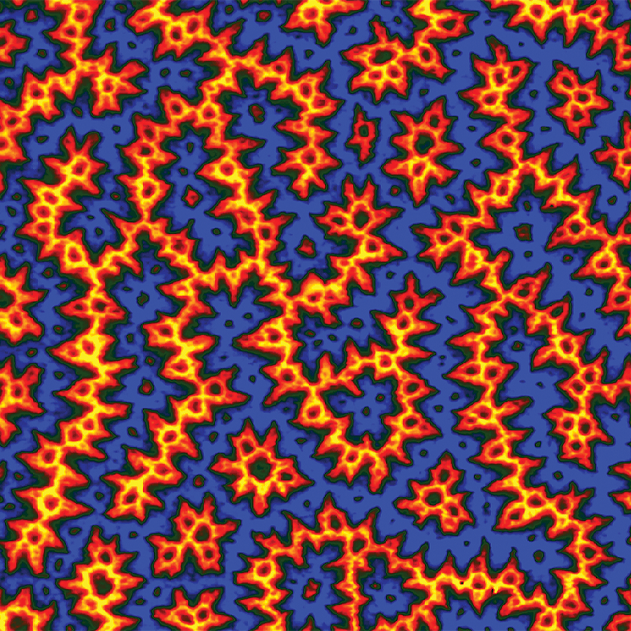

Magnetic domains in a steel sample.
