XFlash 6-10
The Best Resolution SDD

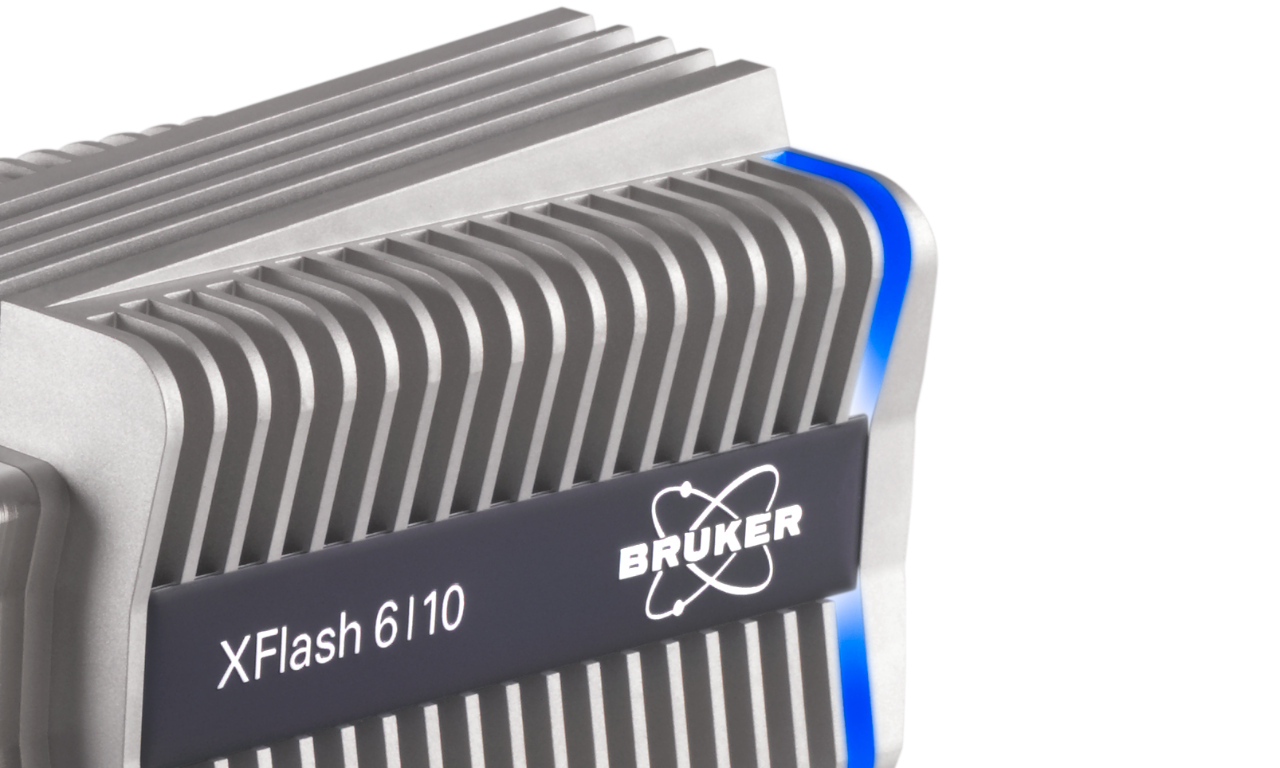

The XFlash 6-10 detector
The core piece of this latest generation X-ray detector is a silicon chip that functions according to the drift chamber principle.
Due to the special chip design with integrated charge amplifier the XFlash® can process very high count rates and at the same time display an excellent energy resolution, unrivaled by any other silicon-based energy dispersive X-ray detector.
In summary, the XFlash® 6-10 offers the following advantages:
- Outstanding energy resolution (limited edition with 121 eV at Mn Kα, 38 eV at C Kα and 47 eV at F Kα available)
- Other available resolutions are 123, 126 and 129 eV at Mn Kα
- Extremely high pulse load capability
- Excellent light element and low energy performance (Be - Am element range)
- No elaborate, vibration-generating cooling systems
- Immediately available after power on
- Low operating cost
- Maintenance-free operation
- Small dimensions, including slim-line technology finger
- Low weight
Suggested areas of application for the XFlash® 6-10 are:
- EDS systems for SEM, microprobe, FIB-SEM (welded bellows available as an option)
- Light element and low energy range analysis
