Power packed – the potential of NMR in lithium-ion battery technology

From powering our smart phones and laptops, keeping the next generation of motor vehicles on the road, and providing emergency generators in hospitals, lithium-(Li) ion batteries (LIBs) find application in a wide range of industries. Battery life and speed of recharging are of critical importance.

Next generation batteries

The value of lithium-(Li) ion batteries

Decreasing greenhouse gas emissions

to minimize the impact of climate change

Boost performance

by shortening charging times

Reduced size and weight

by incorporating sustainable materials

Topic Input value is invalid.

Contact Sales

First Name Please enter your first name

Last Name Please enter your last name

Phone number

Email Please enter a valid e-mail address

Company/Institution Please enter your Company/Institution

Street

City

ZIP Code

Country or Area Please select your Country

State/Province Please select your State

What best describes my current situation:

Work Area

Please choose the Application area

Additional Comments

I consent to receive occasional emails from Bruker Corporation and its affiliates within the Bruker Group. These emails may include information about upcoming events, webinars, products and services, surveys, and Bruker’s corporate news. I can opt out of these emails at any time.

To learn how Bruker handles my personal data, please read Bruker´s Privacy Notice and Terms of Use.

* Please fill out the mandatory fields.

I agree to share my contact details with Bruker Corporation and its affiliates within the Bruker Group for the purpose of fulfilling my request.

Contact Customer Support

For technical service, please contact our Magnetic Resonance and Preclinical Imaging customer support centers.

Create a Service Request

The advantage of lithium-(Li) ion battery (LIBs)

Since the development of the first lithium-(Li) ion batteries (LIBs) in the 1970s, and the commercial availability of the first rechargeable battery launched in 1991 by Sony,¹ life today without portable power would be unimaginable. The launch of the LIB-powered iPhone in 2007 changed the face of mobile technology forever.

LIBs offer the highest energy density of all types of batteries and therefore have strong potential both in improving performance and reducing environmental impact.

Rechargeable LIBs depend on chemical energy being converted to electrical energy, and vice versa, through the movement of ions and electrons in an electrolyte between two electrodes – the anode and the cathode.

During discharge, Li-ions carry the current within the battery from the anode to the cathode through the electrolyte and separator. When charging, an external electrical power source applies a higher voltage than the battery produces, forcing a charging current to flow within the battery from the cathode to the anode. The Li-ions then move from the cathode to the anode, where they are effectively held for future release.

Discovering the batteries of the future with NMR

In battery development, improving a battery’s internal resistance by improving target ion mobility can enhance performance, by using molecular additives for example. The internal resistance of a Li-ion battery depends on the mobility of the ions in the battery ionic liquid. Pulsed gradient spin echo (PGSE) nuclear magnetic resonance (NMR) can be used to gain a deep understanding of resistance by measuring the mobility of different ions separately, independently and in situ.

This is achieved by measuring the diffusivity of different nuclei, including ¹H, ¹⁹F, and ⁷Li over a wide range of temperatures using a Bruker 500 MHz WB ADVANCE III HD spectrometer with a DiffBB inverse probe and GREAT60 gradient amplifier in a fully automated experimental conditions. The DiffBB is a broad gradient probe optimized for strong gradient pulses for variable temperature measurements in the range of -40°C to +150°C.

PGSE diffusion shows new possibilities in the field of Li-ion battery research, particularly with the new automated measurement system introduced by the DiffBB probe, set to pave the way to new discoveries in battery technology and power our sustainable future.

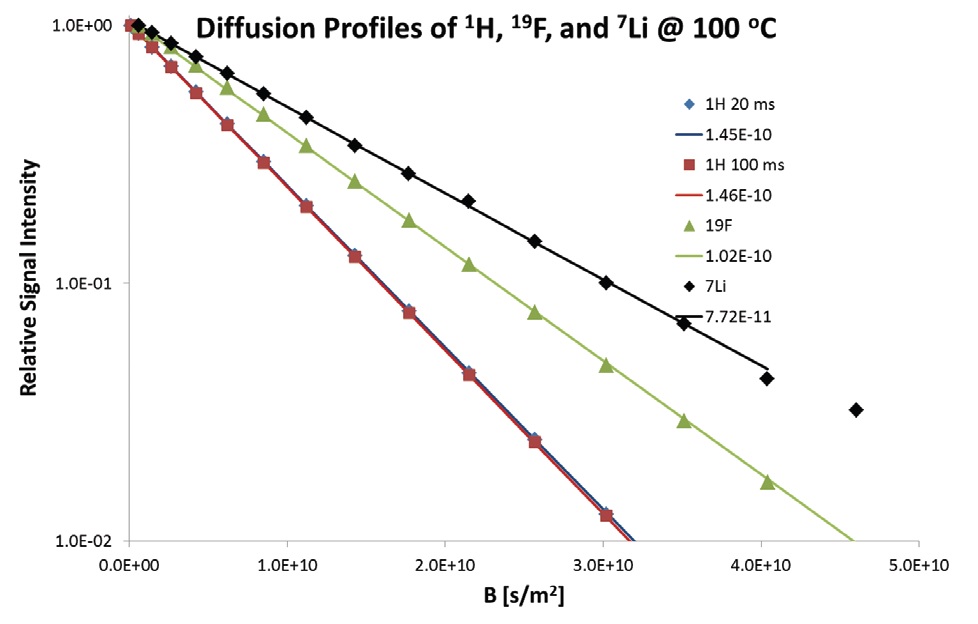

Diffusion profiles at 100 °C. The 1H were experiments performed at diffusion times of 20 ms and 100 ms are almost identical indicating the absence of convection.
