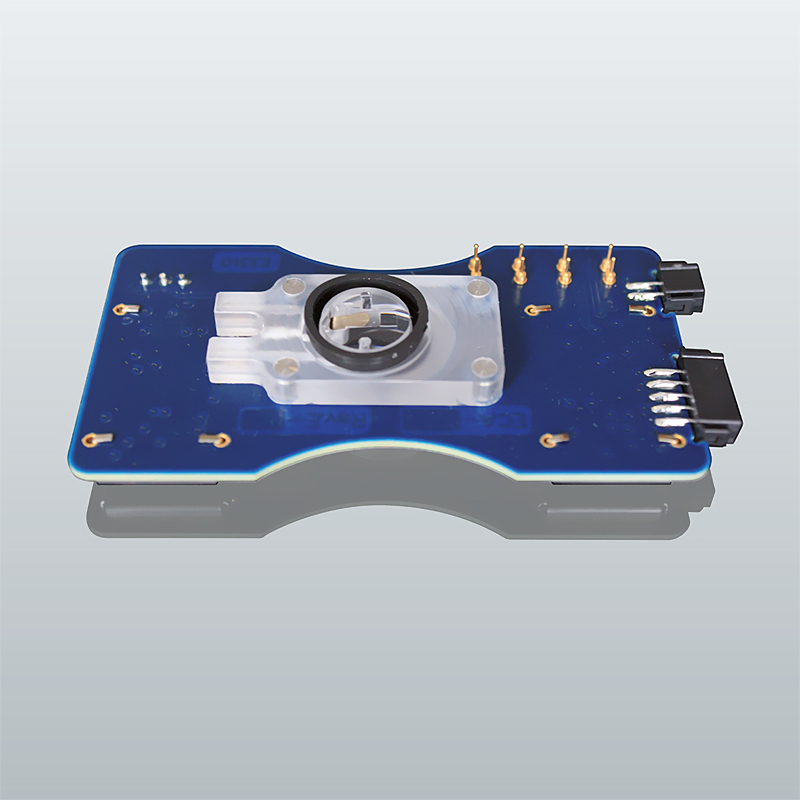

Conductive AFM Module - Enclosed Volume
For high-performance conductivity experiments under controlled environmental conditions.
- Tip-bias cantilever holder with integrated current amplifier circuit
- SmallCell-based, closed volume cell with <140 µl volume and connections for perfusion/gas flow
- Bias Voltage +/-10 V
- Current Range: +/-100 nA
- Gain: 100 V/µA
- Sample holder for conductive samples (optional transparent sample holder)
- Optimized cantilever exchange tool
- Software interface
- Compatible with all stages except Cryo- and StretchingStage
Accessories to extend your BioAFM capabilities
Bruker offers an extensive range of BioAFM system add-ons, accessories, and modes to deliver maximum experimental and sample control, superior versatility, and enhanced useability. These options extend the range of applications and experiments supported by Bruker BioAFMs far beyond what is possible with any other BioAFM system on the market today.
Available options include optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions, and more.
Download our accessories handbook to learn more.
