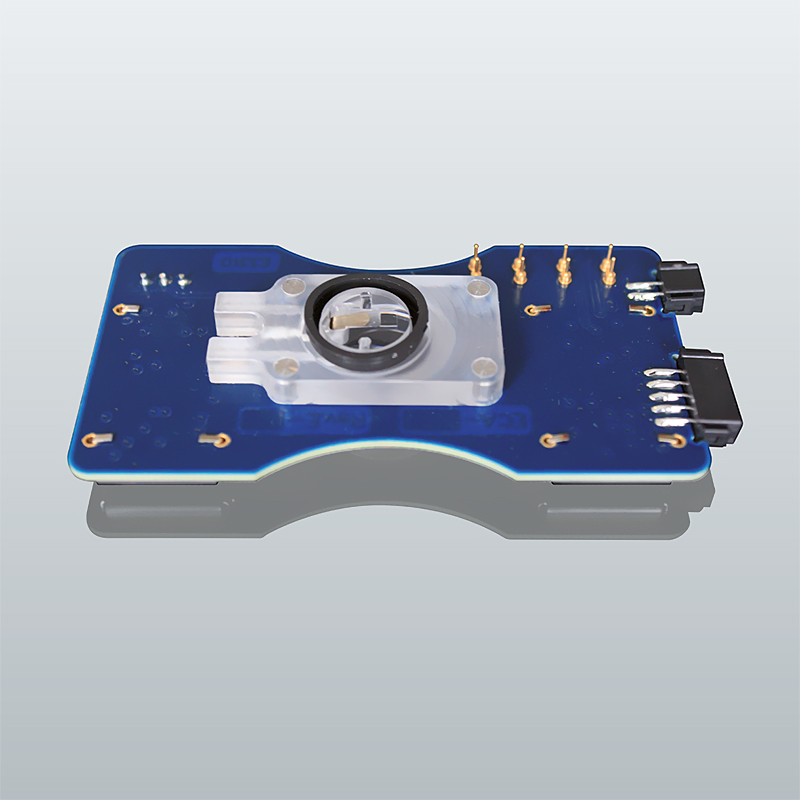

Conductive AFM Module - Enclosed Volume
For high-performance conductivity experiments under controlled environmental conditions.
- Tip-bias cantilever holder with integrated current amplifier circuit
- SmallCell-based, closed volume cell with <140 µl volume and connections for perfusion/gas flow
- Bias Voltage +/-10 V
- Current Range: +/-100 nA
- Gain: 100 V/µA
- Sample holder for conductive samples (optional transparent sample holder)
- Optimized cantilever exchange tool
- Software interface
- Compatible with all stages except Cryo- and StretchingStage
