Higher Order Structure

Gain Insights to Protein Structure

Quality Assessment of Biologics and Biosimilars at Atomic Level

Unlike small-molecule drugs, biologics are produced in living systems, processing not only primary, but secondary, tertiary and possibly quaternary structures. Determination of a biologic drug's higher order structure (HOS) is critical to ensure efficacy, stability, and safety.

NMR is perfectly suited to evaluate protein structures and assess whether critical changes have occurred in a biotherapeutic drug during development and manufacturing. Due to its intrinsically high information content, NMR is proving to be a uniquely valuable tool for the evaluation of HOS, thus reducing the number of techniques needed to characterize biotherapeutic drugs. Recent advances in data acquisition and analysis mean that it is now possible to study intact materials (including monoclonal antibodies) at natural abundance, under conditions that are physiologically relevant. The new MbioHOS software offers a tool box of 1D and 2D method to evaluate the higher order structure of biotherapeutic drugs. Additionally, the assessment of similarity between a biosimilar drug and its reference material is now fast and easy, allowing rapid pass / fail evaluations to be made.

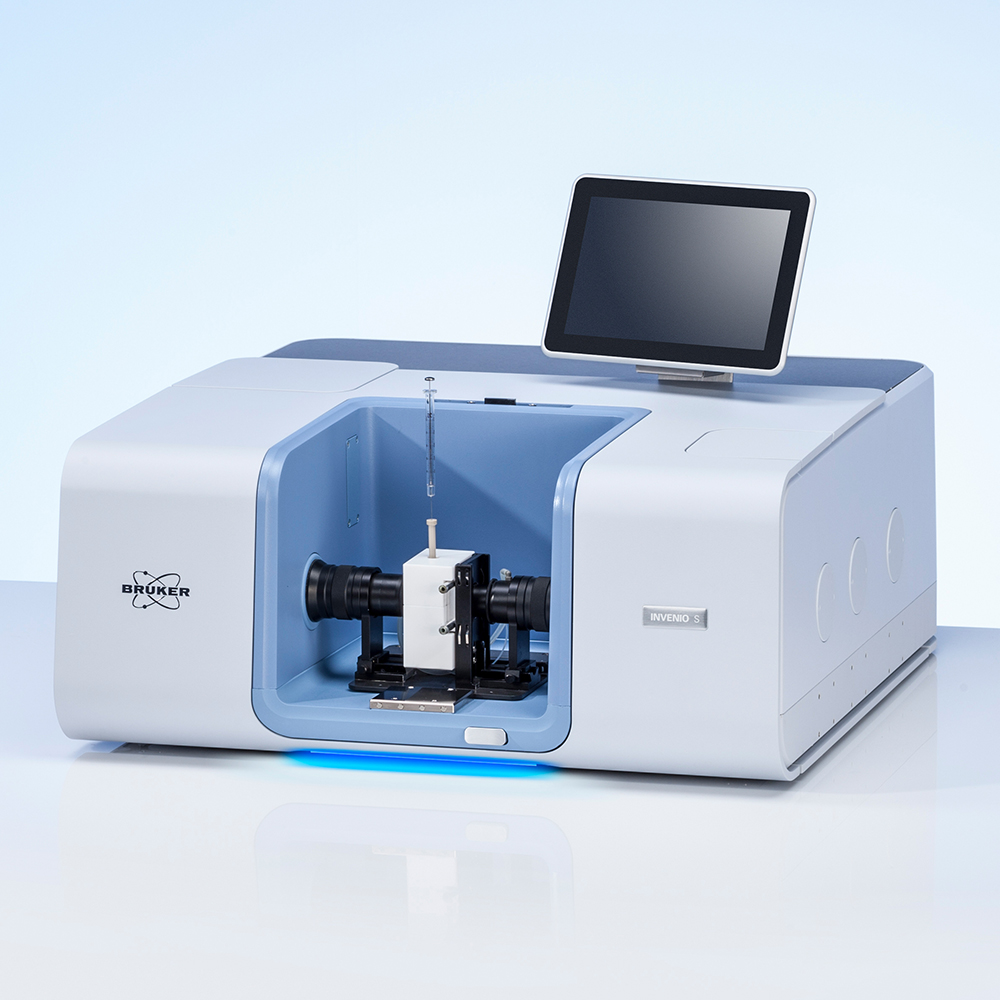

Using FT-IR as an Orthogonal Technique in HOS

FT-IR strenghtens the portfolio of orthogonal techniques for HOS analysis by giving insight into the secondary structure of proteins. The analysis is performed rapidly (~1 min/sample) and is characterized by a high tolerance against varying sample properties such as protein concentration, buffer components and excipients. These attributes make the method an optimal tool for monitoring the conformation of biopharmaceutical proteins during the development phase and for routine quality control.

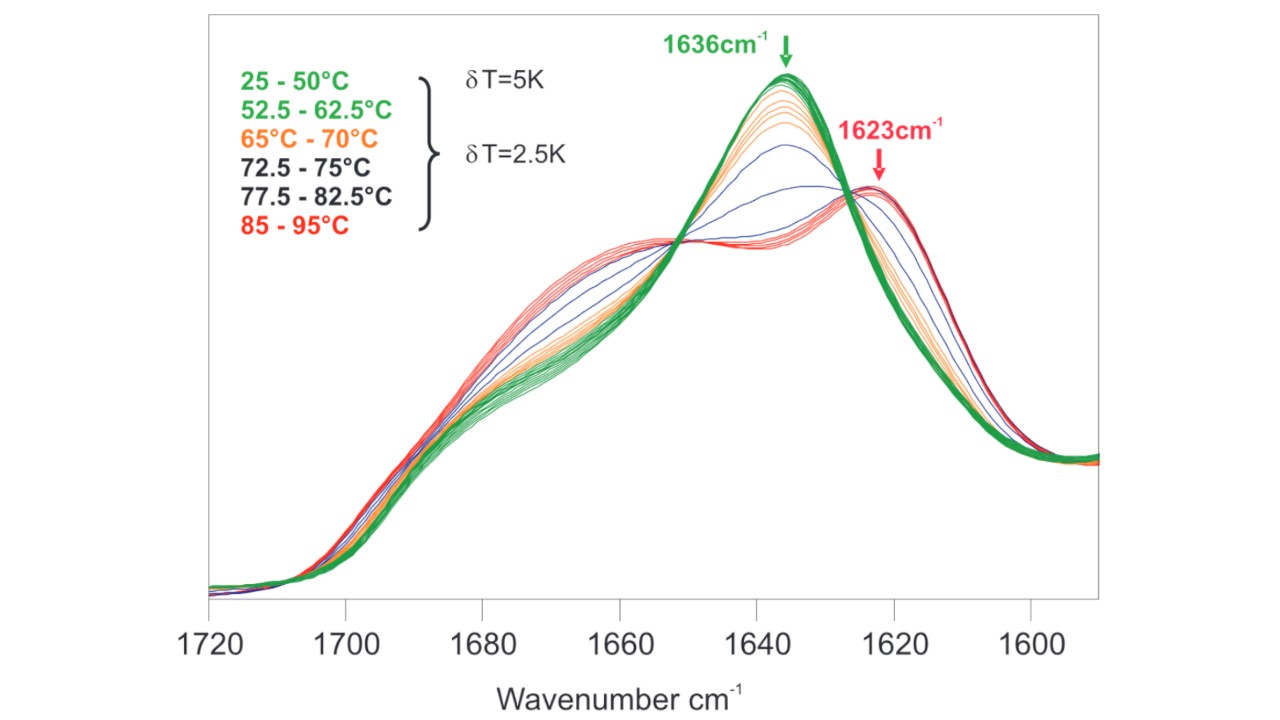

This example application shows the IR spectra of an antibody at different temperatures (25-95° C). As indicated by the unchanged amide I band shape the protein maintains its native-sheet structure up to ~60° C. Further heating causes a decrease in intensity, which indicates the unfolding of intramolecular-β-sheets.

Webinars

csm_banner-covid-5_b2cdd34cec
September 8, 2020

Comparability studies of Pharmaceutical Proteins by 2D NMR fingerprint

An important aspect in analytical assessment of pharmaceutical proteins is the comprehensive characterization of their higher order structure (HOS).
csm_banner-webinar-11-august-2020_776d82510b
August 18, 2020

NMR Spectroscopy for Robust Assessment of the Higher Order Structure of Biologics

Biopharmaceuticals are the fastest growing segment of the pharmaceutical industry. Similar to the concept of generic drugs
Banner webinar april 21
June 09th 2020

Introduction to antibodies and their analytical characterisation

During this webinar Dr. Maurizio Muroni from Astra Zeneca, Cambridge, UK, will give us an introduction on what antibodies are, their structure and an overview of some of the analytical techniques used for their structural characterization.
syringe
Sep 13, 2019

Advancing Biotherapeutics Characterization with Ultrahigh-Resolution Mass Spectrometry and a Toolbox of Separation Methods

This seminar highlights the needs and versatility of ultrahigh-resolution mass spectrometers for heightened mAb characterization in Pfizer’s MSBC lab, as well as addresses the importance of different separation techniques coupled to MS.
NMR offers superior resolution, sensitivity, and characterization of multiple structural aspects with a single experiment.
May 14, 2019

Evaluation of Higher Order Structure of Biologics at Atomic Resolution using NMR

The need of high-resolution techniques is overall regarded as urgent for Higher Order Structure (HOS: secondary, tertiary and quaternary structure)
Quality Assessment of Biologics: Higher Order Structure (HOS) Analysis using NMRQuality Assessment of Biologics: Higher Order Structure (HOS) Analysis using NMR.
September 27, 2018

Quality Assessment of Biologics: Higher Order Structure (HOS) Analysis using NMR

The webinar will describe how 2D NMR can offer protein biochemists unprecedented analytical precision.
Discovery of small molecules that target RNA. NMR is the method of choice.
ON DEMAND SESSION – June 18, 2024

Validation and implementation of qNMR as platform methods of oligonucleotides and peptides

The content of e.g peptides or oligonucleotides in a sample (solid or liquid) is of importance in many aspects. For peptides traditional methods like Kjeldahl nitrogen determination, elementary analysis (EA), and amino acid analysis (AAA), requires break down of the protein at harsh conditions to determine the protein content. For oligonucleotides one of the most widely used techniques for quantification is ultraviolet (UV) spectroscopy.
Discovery of small molecules that target RNA. NMR is the method of choice.
ON DEMAND SESSION – December 5, 2023

Rational Design of a New Generation of Therapeutic Oligonucleotide Tools

The focus of this webinar will be on the development of new chemical modification approaches to enhance the properties of oligonucleotide drugs. Special attention will be given to cancer and other multi-factorial disorders.
Discovery of small molecules that target RNA. NMR is the method of choice.
ON DEMAND SESSION – November 1, 2023

NMR spectroscopy, just what you need to assure the quality of your TIDES!

The wealth of structural information that accompanies NMR spectroscopy has made it instrumental for traditional small molecules medicinal and analytical chemistry support. Perhaps less well known is its ability to characterise TIDES efficiently and with such a level of detail (atomic resolution). This talk demonstrates its power with examples covering TIDES structure-based drug design,1,2 similarity assessment,3 characterisation,4 secondary and tertiary structure, quantification and phosphorothioate chirality.5,6
