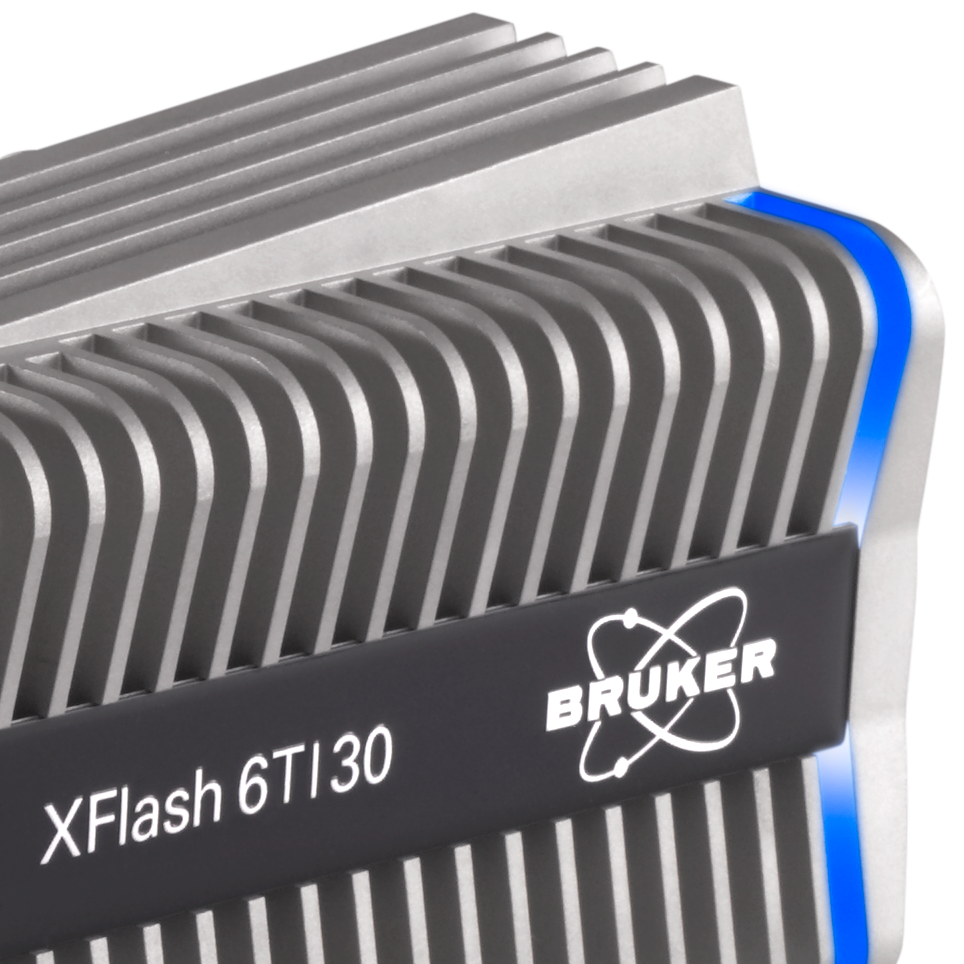

XFlash 6T-30

The XFlash^® 6T-30 is the detector for S/TEM with the best energy resolution. Due to its small diameter (slim-line design) it is particularly well suited for situations where little space is available for an EDS detector, especially also for EDS retrofits on older TEMs. The versatile XFlash^® 6T-30 meets all analysts needs, from excellent geometric conditions (optimum take-off and best possible solid angle) to analytical performance (light element or high count rate analysis).

In summary, the XFlash^® 6T-30 offers the following advantages:

• Excellent energy resolution (126 eV at Mn Kα, 51 eV at C Kα and 60 eV at F Kα available)
• Other available resolution is 129 eV at Mn Kα
• Extremely high pulse loading capability
• Excellent light element and low energy performance (element range Be - Am)
• Welded bellows as standard
• No vibration-generating cooling systems
• Immediately available after power on
• Maintenance-free operation
• Low operating cost
• Small dimensions, including slim-line technology finger
• Low weight
• Windowless version available on request

Suggested areas of application for the XFlash^® 6T-30 are:

• All types of EDS anlyses on TEM and STEM, including aberration corrected electron microscopy
