Single Crystal X-ray Diffraction (SC-XRD)

Optics

X-ray optics preserve the source brilliance and condition the beam to the needs of the experiment. Our Graphite Monochromator, TRIUMPH Monochromator, HELIOS multilayer Montel optics are optimized for best results.

The combination of source and optics is crucial to providing you with the X-ray beam that best meets your application needs and budget. Water cooled sealed tubes can be either combined with a flat graphite monochromator or the curved TRIUMPH monochromator for increased intensity.

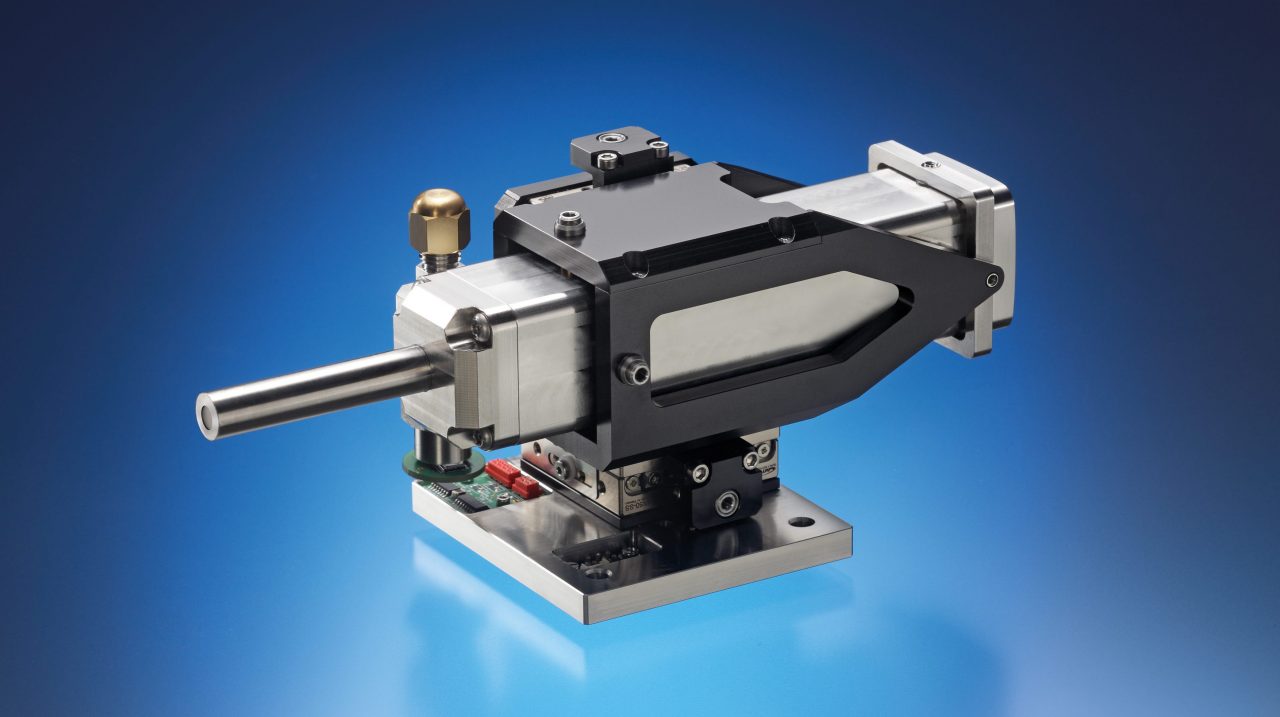

METALJET, TURBO X-RAY SOURCE microfocus rotating anodes and microfocus IμS sealed tubes are all combined with third generation HELIOS multilayer optics for highest beam quality and intensity.

Graphite Monochromator

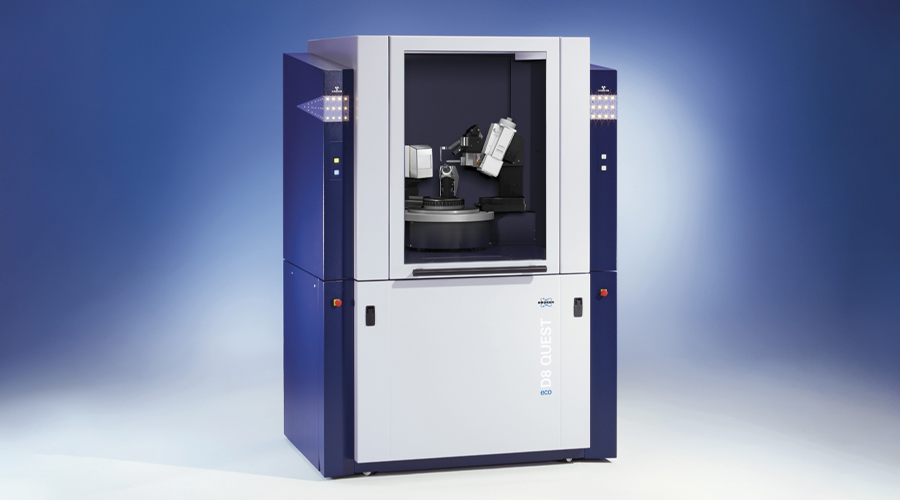

The sealed tube with flat graphite monochromator combination delivers a large top-hat-shaped beam. We have engineered a short beam path to preserve highest intensities possible.

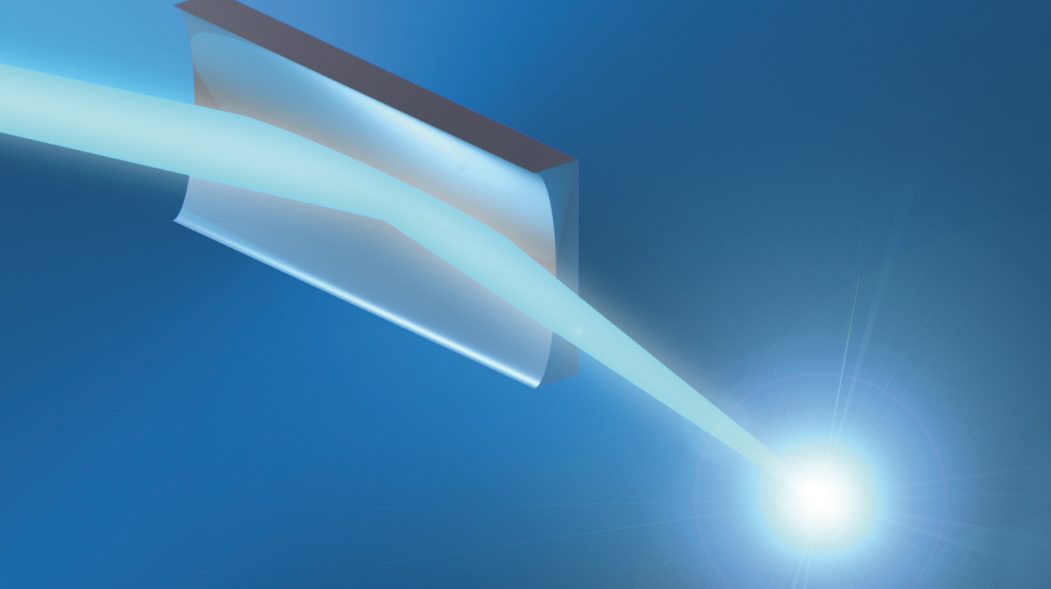

TRIUMPH Monochromator

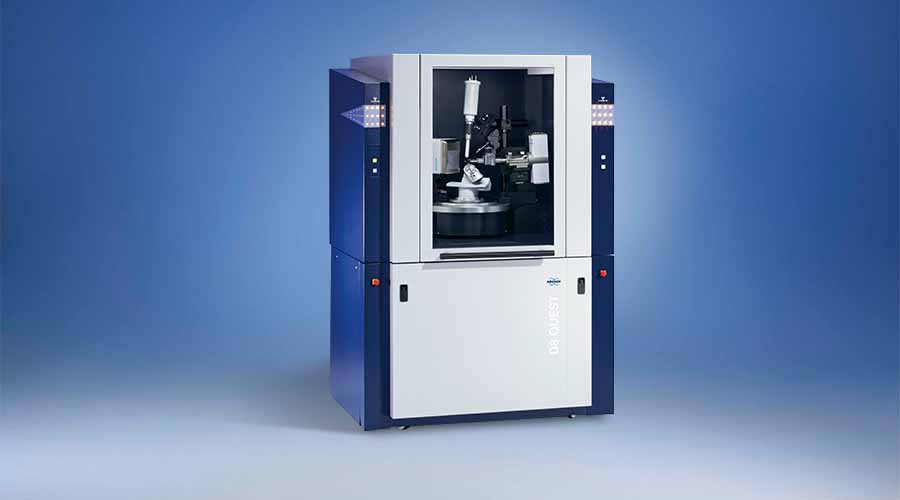

The curved TRIUMPH monochromator for Mo sealed tube systems provides a threefold intensity gain compared to conventional flat graphite monochromators. The TRIUMPH produces a large top-hat-shaped beam profile and is ideally suited for high intensity measurements on smaller and larger crystals.
