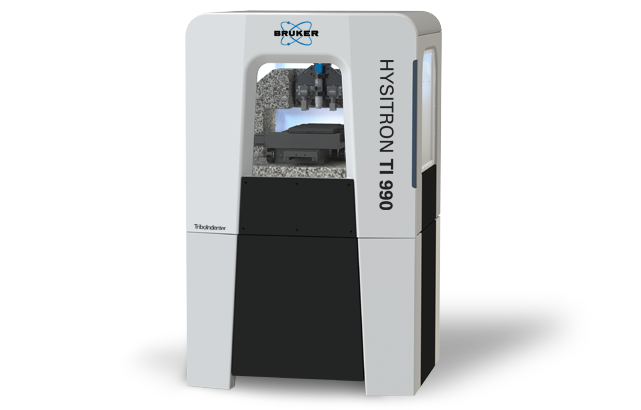

Hysitron Nanoindenters

• Transducer: One of the most important elements of any nanoindenter system is the transducer. The transducer is a high-precision actuator that continuously measures the applied probe force and probe displacement during a nanoindentation measurement. The noise floor of the transducer and supporting control electronics defines the lower limit of testing that can be achieved by the nanoindenter. Transducer sensitivity and stability directly impacts the accuracy and reliability of mechanical characterization at the nanoscale. Bruker's Hysitron nanoindenters utilize capacitive transducer technology that deliver nN force and sub-angstrom displacement measurement capabilities for unbeaten nanoscale mechanical characterization.


• Controller: Operation of the transducer and data acquisition is achieved through a sophisticated control system. Nanoindenter systems primarily operate under closed-loop load control or displacement control modes. The speed of the feedback control loop dictates how the system responds to changing contact conditions during the nanoindentation process and how accurately the system performs the defined test function. A fast feedback control loop, low signal noise, and a high bandwidth transducer are required for maximum accuracy during nanomechanical testing. Additionally, the fact data acquisition rates are necessary to identify sudden transient events (e.g. fracture, delamination, dislocation nucleation, phase changes, etc.) that may occur during the nanoindentation process. The Hysitron Performech Advanced Control Module sets the standard in nanoindentation control technologies and delivers industry-leading noise floors (down to 0.02 nm displacement noise, 2 nN force noise), an ultra-fast feedback control loop (78 kHz), and data acquisition speeds up to 38 kHz.


• Sample Imaging: The smallest material feature/grain/phase that you can reliably test with a nanoindenter is the smallest feature that you can identify. Sample imaging is not required when testing bulk homogeneous materials, but is of critical importance when testing inhomogeneous materials or small structures. Without the means of identifying the region of interest and the ability to reliably position the nanoindenter probe within that region, meaningful characterization is impossible. Bruker has the broadest range of hybrid imaging techniques (e.g. optical, fluorescence, scanning probe microscopy, scanning electron microscopy, transmission electron microscopy, Raman Spectroscopy, etc.) for precise test placement and reliable nanoscale mechanical characterization.


• Motorized Staging: High-precision motorized staging automates the testing process and provides correlation between data taken with the nanoindenter's transducer and integrated auxiliary techniques (e.g. optical imaging, fluorescence microscopy, Raman Spectroscopy). Integrated motorized staging enables large-area mechanical property mapping, inter-sample movement, and automated multi-sample testing. Typically, high-resolution encoded stages are utilized for reliable test positioning on the region of interest.


• Anti-vibration System: Effective isolation of the nanoindenter from the environment in which it operates is critical for nanoscale mechanical characterization. Passive and active vibration isolation systems minimize the effect of building vibrations on the measured results. Anti-vibration systems allow quantitative nanoscale characterization to be performed in buildings no specifically optimized for sensitive surface characterization instruments.


• Enclosure: Nanoindenter systems are housed within an environmental enclosure to protect the system from acoustic disturbances, airflow, and temperature variability. All Hysitron standalone nanoindenter systems incorporate a custom engineered, multi-layer enclosure to assure repeatable and reliable nanoscale mechanical characterization in non-ideal environments. Additionally, the granite framing of the nanoindenter systems serve as a thermal buffer to minimize temperature fluctuations within the environmental enclosure and greatly reduce thermal drift during a measurement.

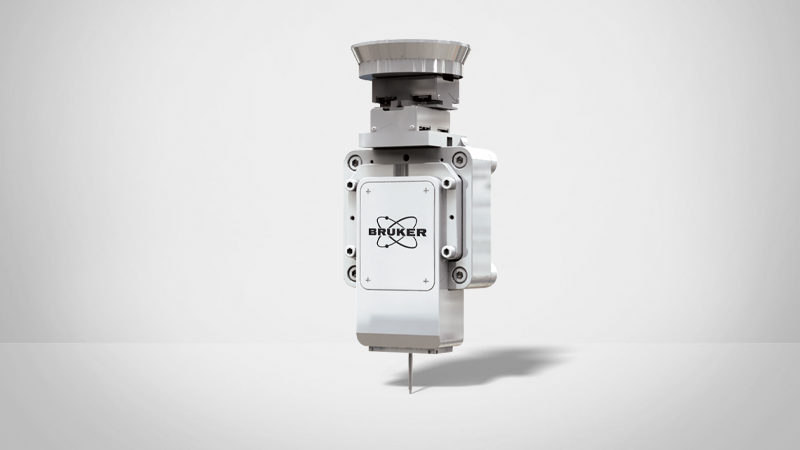

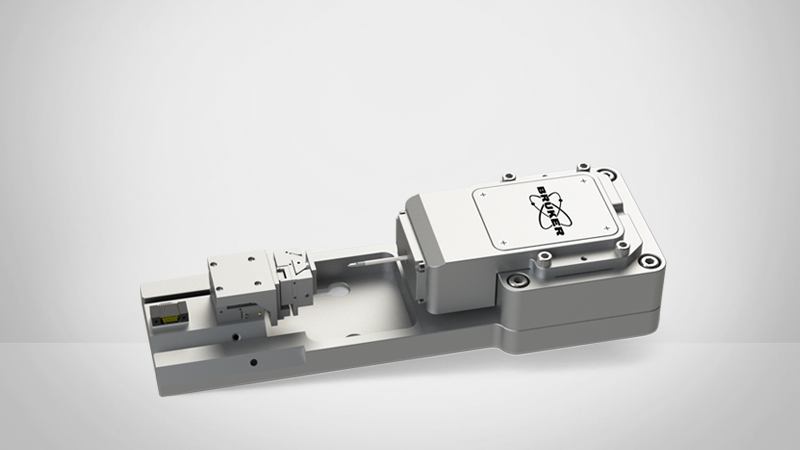

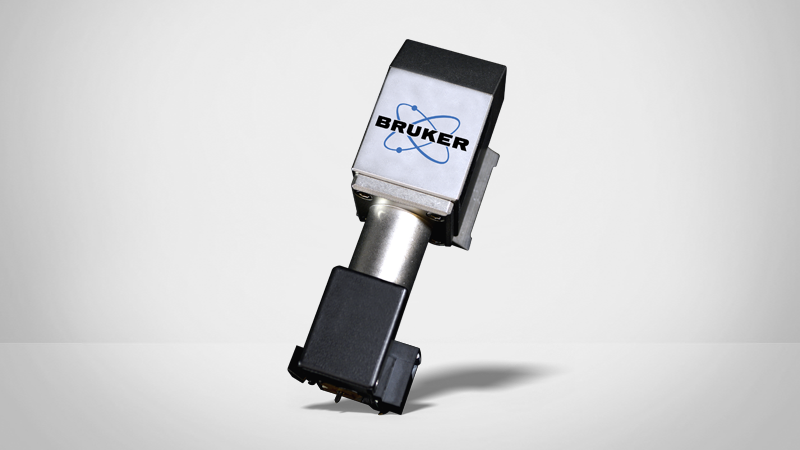

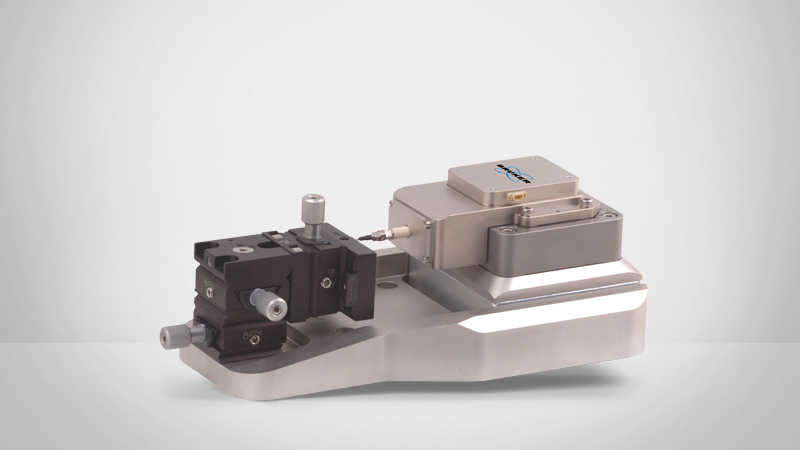

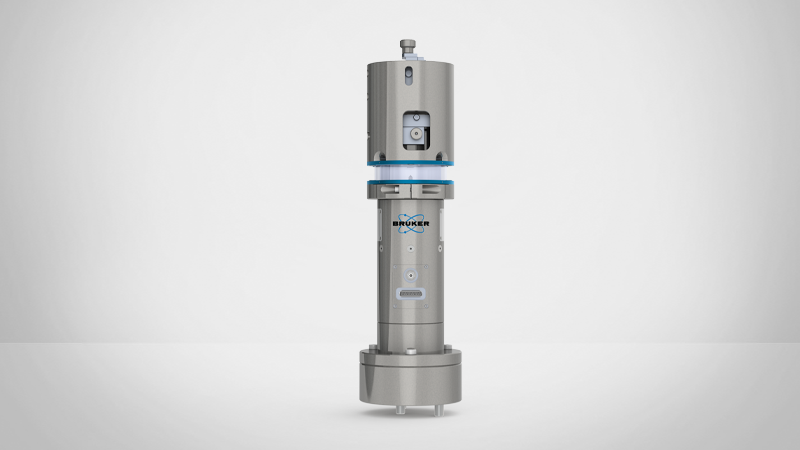

Bruker has developed and commercialized the widest range of nanoindenters and is the world leader in nanomechanical testing technologies. Our Hysitron nanoindenter instruments range from industry-leading standalone systems, to nanoindenters that interface with various microscopy techniques, to high-throughput process metrology systems. Additional details about Hysitron nanoindenter products can be found below.
