EPR Instruments

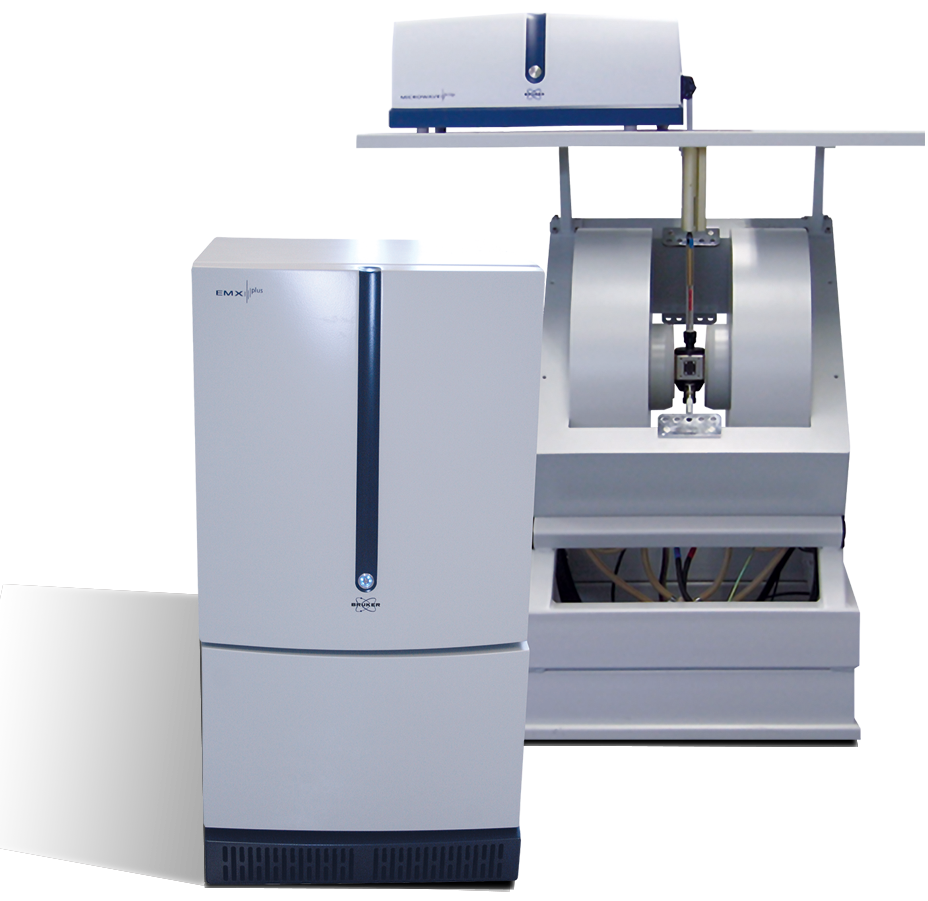

EMXplus

The Bruker EMXplus provides premium performance for EPR research. It features several 2D operation modes where the second axis can be time, temperature, goniometer angle or microwave power.

Embodying a new EPR philosophy

Premium performance for routine research

Full
Freedom
Magnetic field sweep from 100 mG up to 1.7 T.
Dual
Channel
Simultaneous detection of first and second harmonic or 0˚/ 90˚ modulation phase.
Independent
Large and small signals can be detected with one gain setting
EMXplus Supreme Resolution and Sensitivity for EPR Spectroscopy Bochure
Read More

EMXplus Features

  • 24 bit center field resolution, corresponding to a precision better than 1 mG
  • 24 bit signal digitization
  • Up to 256,000 points for field and time sweeps
  • Sensitivity up to 2000:1 (International Weak-Pitch Protocol) with PremiumX
  • Easy upgrade to multifrequency CW-EPR from L-band to Q-band
  • CW-ENDOR available in this spectrometer class
  • Range of accessories and dedicated resonators
  • Devoted Instruments

Applications

epr-chemistry-banner

EPR in Chemistry

Metal centers, organic and inorganic radicals involved in chemical processes can be studied by EPR in various branches of chemistry: coordination chemistry, metalloorganic compounds, electrochemistry, redox processes, kinetics involving radical intermediates, photochemistry and catalysis.
En savoir plus
EPR in material science

EPR in Material Science and Physics

Within the areas of physics and material science there are many topics of interest. EPR can be employed to investigate polymer synthesis and degradation, paint properties, testing the purity and stability of photovoltaics, semiconductors, batteries as well as carbon nanotubes. Furthermore, information can be gained about the coordination environment of transition metals, rare-earth and actinide ions.
En savoir plus
EPR in Life Science

EPR in Life Science

EPR is a powerful tool in the field of life sciences. EPR provides insight into the structure, function and reaction mechanisms of enzymes, membrane proteins, RNA/DNA, and for characterization/screening of DNP agents. Using spin-labeled biomacromolecules enables you to study their structure and dynamics. EPR detects and quantifies reactive oxygen and nitrogen species (ROS/RNS) including nitric oxide.
En savoir plus
Distribution

EPR in Pharma

EPR spectroscopy is a powerful tool in various areas of pharmaceutical analysis: detection and evaluation of degradation, stability and shelf-life, reaction monitoring, sterilization processes and profiling of paramagnetic impurities.
En savoir plus
EPR in Industry

EPR in Industry

In industrial settings, a wide variety of properties of products are analyzed by EPR: oxidative stability and antioxidant capacity of foods and beverages, determination of radiation dosage, post-irradiation effects on products, polymer analysis to determine failure rates, and diamond quality.
En savoir plus

Simultaneous detection of first/second harmonic or 0˚/ 90˚ modulation phase with the one gain setting



Vanadyl acetylacetonate in toluene, red: 0˚ phase first harmonic and green: 90˚ phase second harmonic. Second Harmonic 90˚ for saturation transfer EPR to detect slow molecular motion. First Harmonic 90˚ for measurements of spin-lattice relaxation times.

Fully automated 2D operation modes with the second dimension as time, power, goniometer angle and more.

Time evolution of the EPR signal upon irradiation

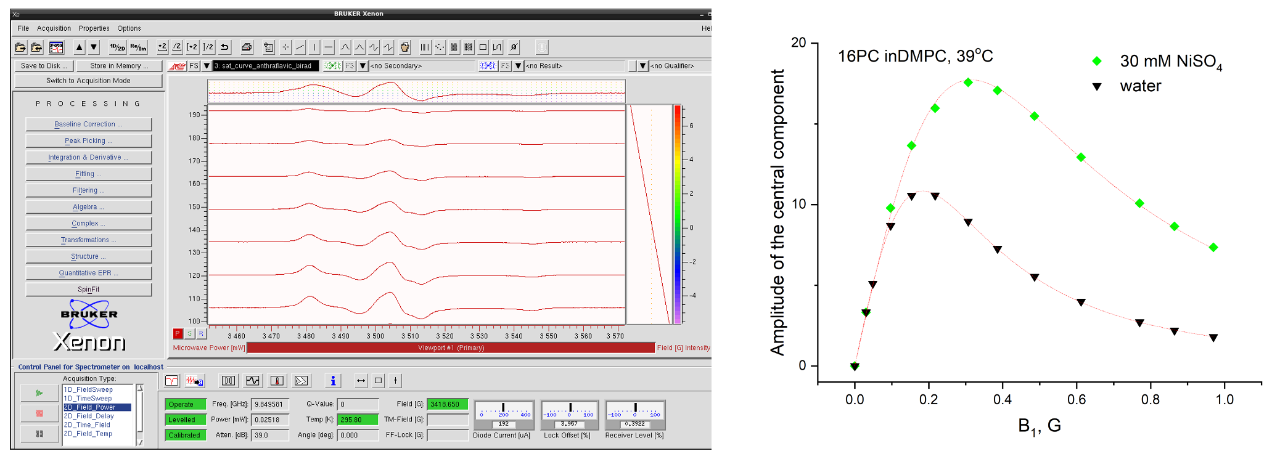

Quick and convenient acquisition and analysis of saturation curves with Xenon software

Accessibility studies in biological systems

Specifications

X-band sensitivity 1.6 x 109
Weak pitch signal-to-noise ratio 2000 : 1
Modulation frequency 4 to 100 kHz in 1 kHz steps
Modulation amplitude up to 20 G
Field stability 10 mG / hour
Sweep resolution 256 000
Amplitude resolution 24 bit
Time constant 0.01 ms - 1 s
Simultaneous detection 0° / 90° modulation phase
  1st / 2nd harmonic
  dual inputs
Triggering internal / external
Option up to 90 dB microwave attenuation
