SampleJet
The SampleJet utilizes the modern day industry standard for sample arrangements—the 96 well plate array. Therefore the samples may be handled by standard lab-automation devices before or after the NMR measurement. On top of this, the SampleJet is designed also for true sequential single tube submission for open-access routine NMR.
High-Throughput
Automation
Automation
Efficient handling of daily routines
Flexibility and Compatibility
Seamlessly integrating NMR into modern day lab environments
Versatile Sample Handling
Including 96 well plates and individual tubes
Get the Best Results from your SampleJet with Bruker Consumables
Download the brochure
Workflow

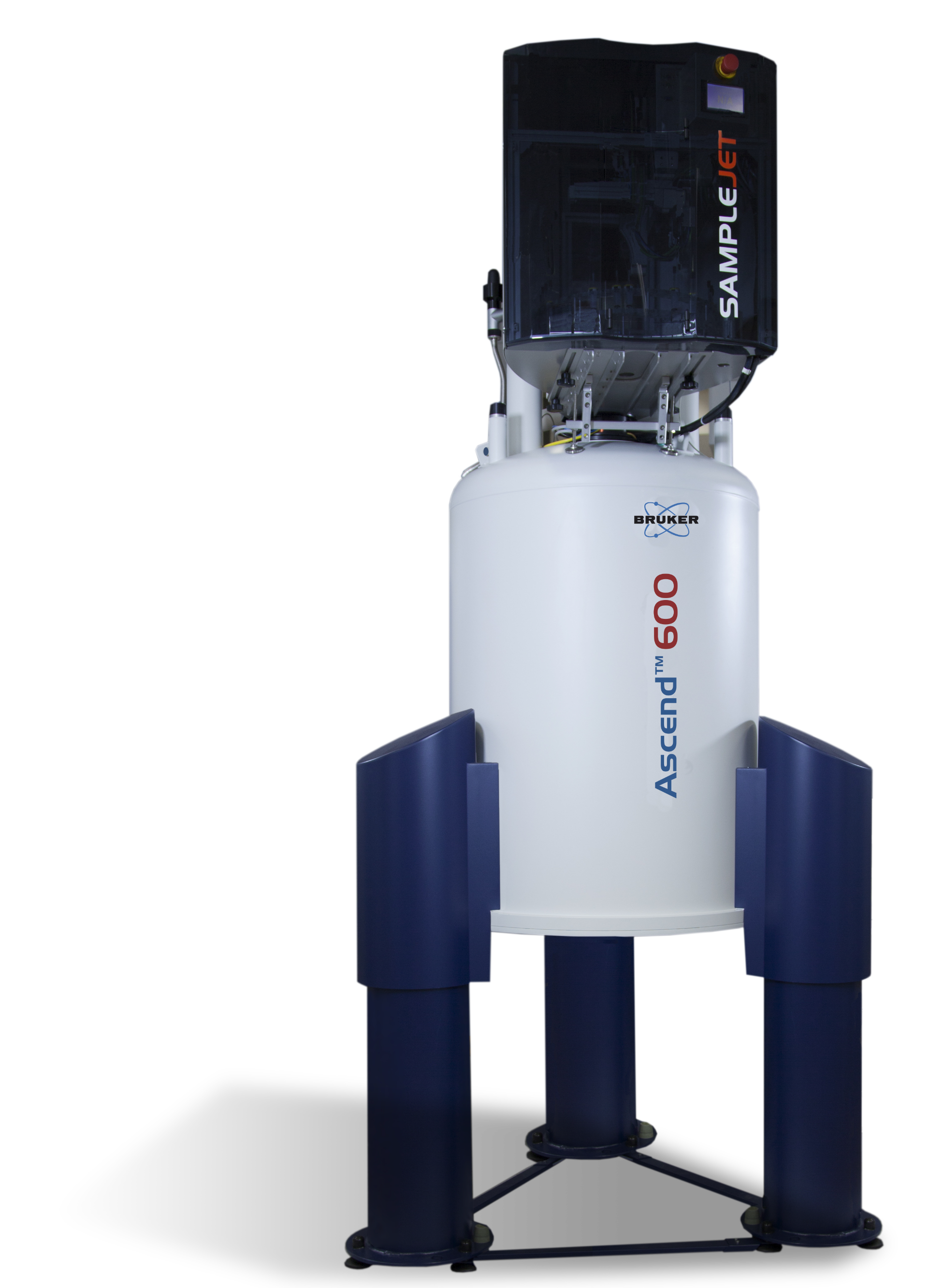

With the SampleJet, NMR completely blends into the scenery of modern day labautomation. The space requirement for the SampleJet is in full compliance with the space requirements for the NMR magnet. The SampleJet may be mounted on magnets from 300 to 900 MHz. Continuous NMR sample tube automation is available in the microtiter-plate format. This includes automated liquid handling, automated tube handling and NMR automation software.
Features
Features
- Spinner-free open access applications: SampleJet provides 96 positions for tubes without requiring spinners (plus 3 positions for tubes with spinners)
- The SampleJet has five positions for well-plate sized NMR tube racks. This allows the handling of batches with up to 480 sample tubes.
- The SampleJet can handle the most common sample tube diameters
such as 5 mm and 1 mm tubes. - Automatic tube and rack bar code identification
- The SampleJet is compatible with the Bruker BioSpin spectrometer
control software such as TopSpin™ as well as IconNMR™.
Industrial automation applications
- Compound management QA
- Batch screening applications
- Routine NMR
- Synthesis control
- Special applications
Typical laboratory characteristics
- Central laboratories
- Laboratories aiming for high throughput
- Laboratories using standard wellplate
format - Laboratories working with multiple
tube diameters - Open access laboratories with many
users
Applications
- Compound management QA
- Batch screening applications
- Routine NMR
- Synthesis control
- Special applications
For all NMR Tubes w/o Racks
- Standard 7‘‘ tubes with or without spinners
- Short 4‘‘ tubes without spinners
- Tube diameters: 1 mm, 1.7 mm, 3 mm and 5 mm (Other tube styles upon request)
- Short 4“ tubes in wellplate format disposable
racks
Integrity
- Central laboratories
- Laboratories aiming for high throughput
- Laboratories using standard wellplate format
- Laboratories working with multiple tube diameters
- Open access laboratories with many users
Maximum Versatility
- Concurrent Batch and open-shop operation
- Tubes, caps and racks compliant with commercial laboratory environment and tools (liquid handlers, fridges, autoclaves, etc.)
- Spinning and Nonspinning capability (3 and 5 mm)
- Compliant with standard reference samples
- Virtually infinite re-measurement of same sample with identical sample tube handling (spinnerless samples)
Full Flexibility
- Sample loading of individual samples and/or racks at any time
- Open-shop sample submission and processing at any time even during batch processing
- Manual sample injection into magnet
- Easy access for LT/HT, HR-MAS samples or CryoFit operation
- Customizable operation (weekend, night, day)
