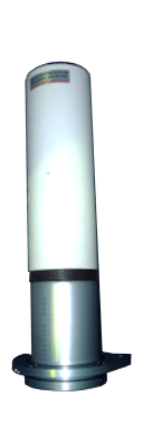

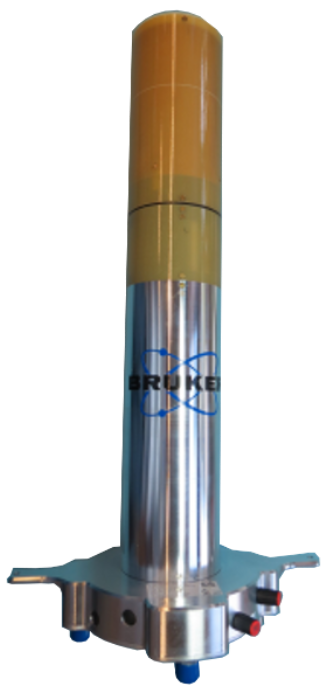

SWB Probes – MiniSWB90

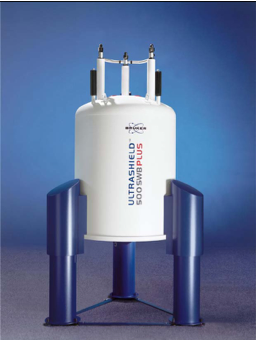

Bruker’s vertical super wide bore (SWB) magnets provide a sample space up to a diameter of 66 mm. Therefore it is Bruker’s largest vertical magnet system with a room temperature bore diameter of 154 mm. The MiniSWB90 super wide bore rf probe is optimized for material research and the investigation of process parameters.

Bruker’s vertical super wide bore (SWB) magnets provide a sample space up to a diameter of 66 mm. Therefore it is Bruker’s largest vertical magnet system with a room temperature bore diameter of 154 mm. The MiniSWB90 super wide bore rf probe is optimized for material research and the investigation of process parameters. The system is equipped with a combined SWB gradient/shim system. An additional WB shim system can be mounted optionally. All SB and WB gradients, shims and MR microscopy, MR diffusion, and solid-state probes and are compatible, making it suitable for every purpose. The SWB driver hardware is required to drive the amplifier rack from a standard spectrometer delivering up to 200 A and creating a maximum gradient strength of 785 mT/m. The SWB system is available in a 300 or 500 MHz configuration.

Features

  • Super Wide Bore Probe
  • Gradient strength of up to 785 mT/m, water cooled
  • Compatible to high resolution and solid state applications
  • Small footprint
  • Available probes:
    - 66 mm ID 1H Quadrature Probe
    - 40 mm ID 1H Quadrature Probe
    - 66 mm ID 1H/X Probes
    - 40 mm ID 1H/X Probes
    - All other probes on request
  • Optional Variable Temperature Control (compatible to BSVT, BCU)

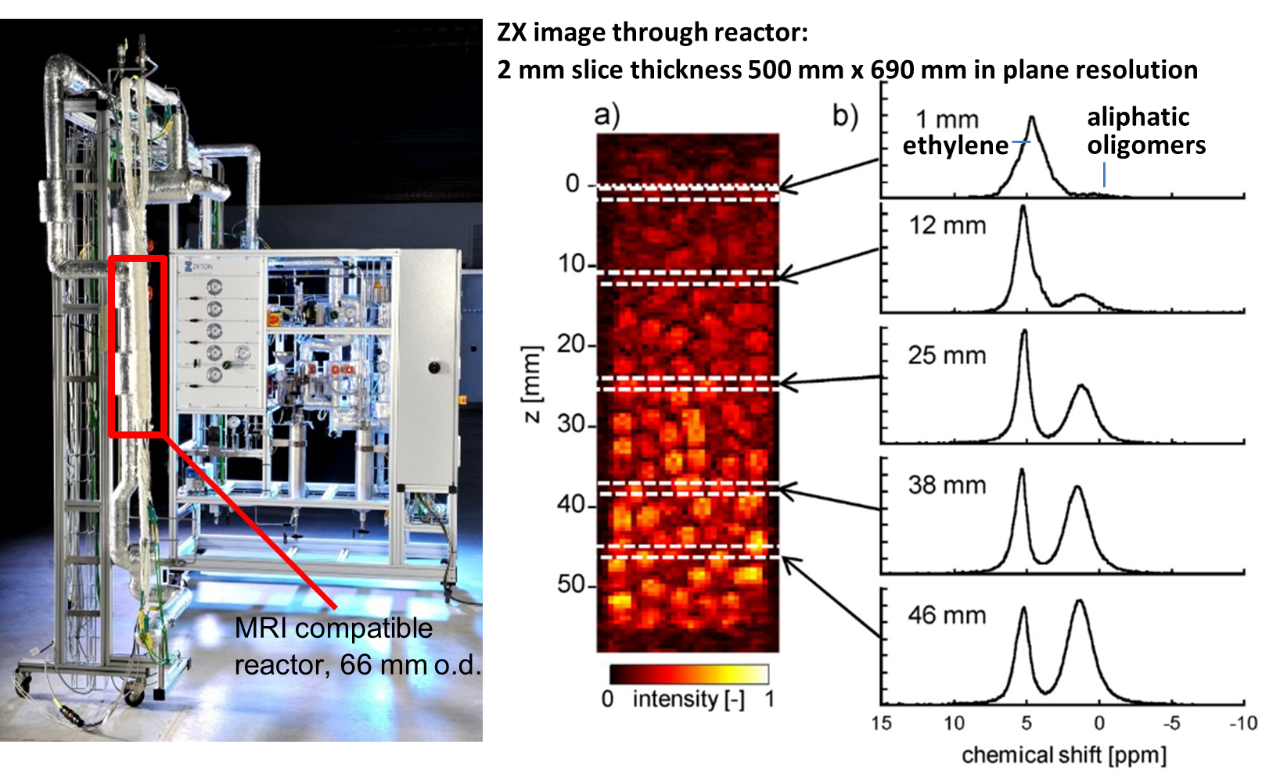

Operando MR microscopy in a super wide bore system Image 1

Operando MR microscopy in a super wide bore system

A catalytic reaction is strongly dependent on the interaction of reactants and catalysts. It is of great interest to study the reaction in situ under realistic conditions, some of them requiring high temperature and high pressure.
Read More

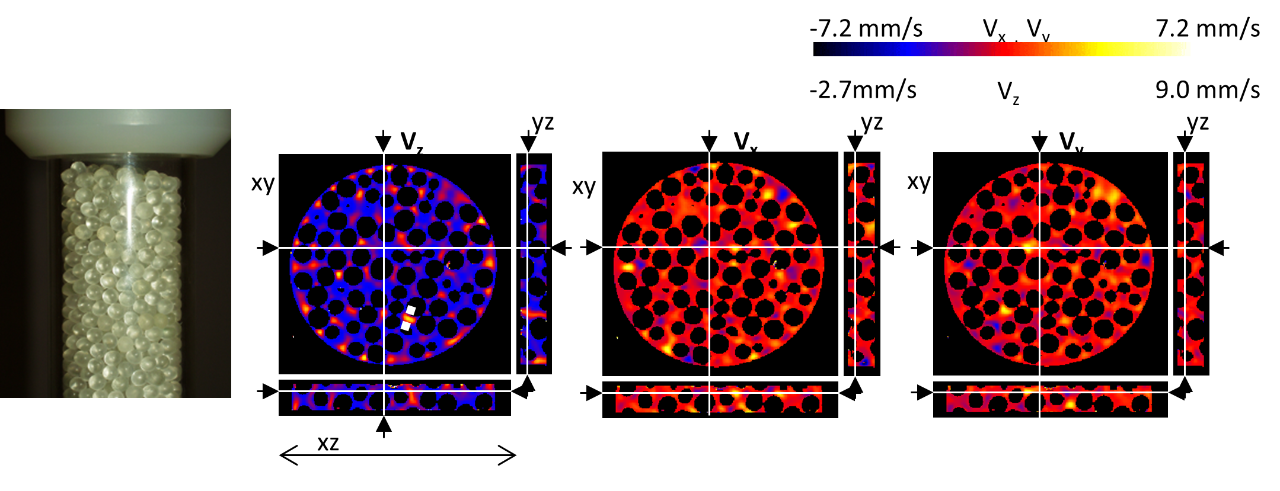

Single-phase flow velocimetry in a super wide bore spectrometer Image 1

Single-phase flow velocimetry in a super wide bore spectrometer

Bruker’s super wide bore system equipped with the MiniSWB90 have been used to study the interpore space of a packed cylinder of particles.
Read More

Accessories

  • Optional SB and WB shim coils to use standard SB/WB probes in the SWB magnet

Specifications

MiniWB57R / Mini0.75
Compatible with magnet system SWB
Bore     SWB
1H frequency range 300 or 500 MHz
rf channels Two independent
Requirements SWB Imaging Accessory
Gradient     BGA9
Directions     xyz
Gradient strength per direction 785 mT/cm
Rise Time (5-95%), 0-60A,120V < 100 µs
Cooling     Water
Maximum current tested 200 A
Removable     Yes
Exchangable rf coils
Detection Single tuned, double tuned, or quadrature
Typical Nuclei 1H, 2H, 7Li, 13C, 19F,....
Standard sample temperature range 5 – 40°C
Sample diameter 40 – 66 mm
