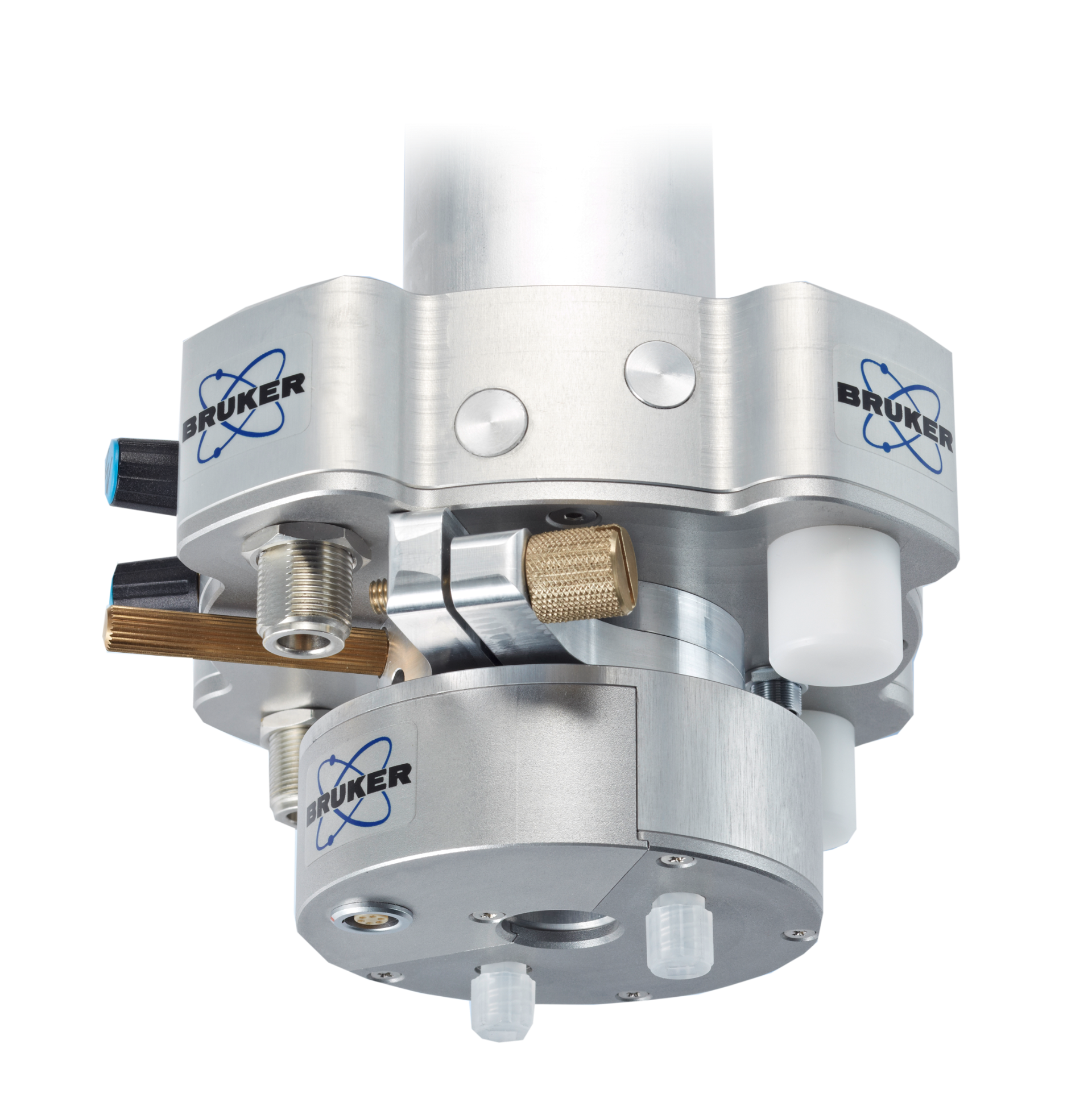

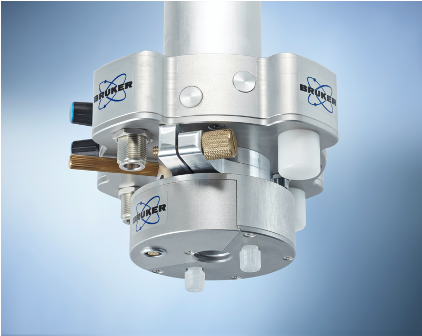

Mini0.75 – MiniWB57R

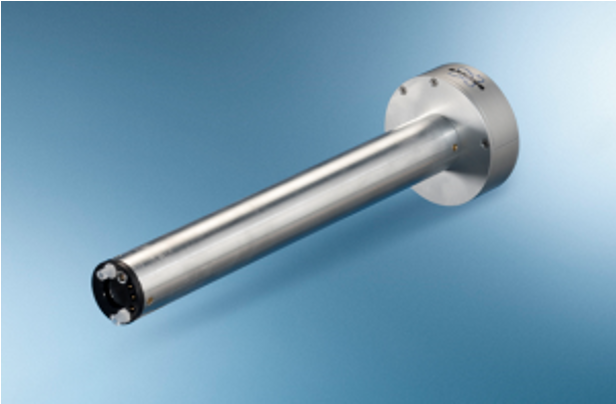

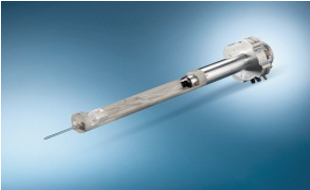

The MiniWB57R rf probe offers the max. available sample space in a WB magnet - a perfect compromise between space and gradient strength. Its main application field is in in-vivo studies of rodents, such as, large mice or small rats. Combined with it‘s exchangable rf coils it can be adapted to perfectly match your application.
It can be equipped with the animal monitoring system to supervise physiological parameters of the animals (ECG, respiration, body temperature) and provide connections and masks for breathing gas anesthesia. Different type of animal beds and positioning systems are supported for the individual coil types.
Features
- Wide Bore Probe, compatible to WB and SWB magnets
- Gradient strength of up to 470 mT/m, water cooled
- Animal support (Triggering Unit, Anesthesia, Mouse Bed)
- Range of exchangeable rf coils
- Open access
- 35 or 40 mm birdcage coil. The sample is manually placed inside the rf coil from the top or inserted using the animal/object handling system from the bottom of the probe.
- Special animal/object support is optionally available for volume and surface coils
- Single or double tuned surface coils in fixed housings, typically used in in-vivo investigations. For this coil configuration, the in-vivo support option is mandatory.
Specifications
| MiniWB57R / Mini0.75 | ||
| Bore | WB / SWB | |
| 1H frequency range | 300 – 800 MHz | |
| rf channels | Two independent | |
| Requirements | Microscopy Accessory | |
| Gradient | Mini0.75 | |
| Directions | xyz | |
| Gradient strength per direction | 475 mT/m | |
| ID/OD | 57/72 mm | |
| Rise Time (5-95%), 0-60A,120V | < 120 µs | |
| Cooling | Water | |
| Maximum current tested | 60 A | |
| Removable | Yes | |
| Exchangable rf coils | ||
| Detection | Single tuned, double tuned, or quadrature | |
| Typical Nuclei | 1H, 2H, 13C, 19F, 31P,.... | |
| Standard sample temperature range | 5 – 40°C | |
| Sample diameter | 30 – 40 mm |
Accessories
- Animal Handling Accessory
- Animal Monitoring Unit
