SampleCase

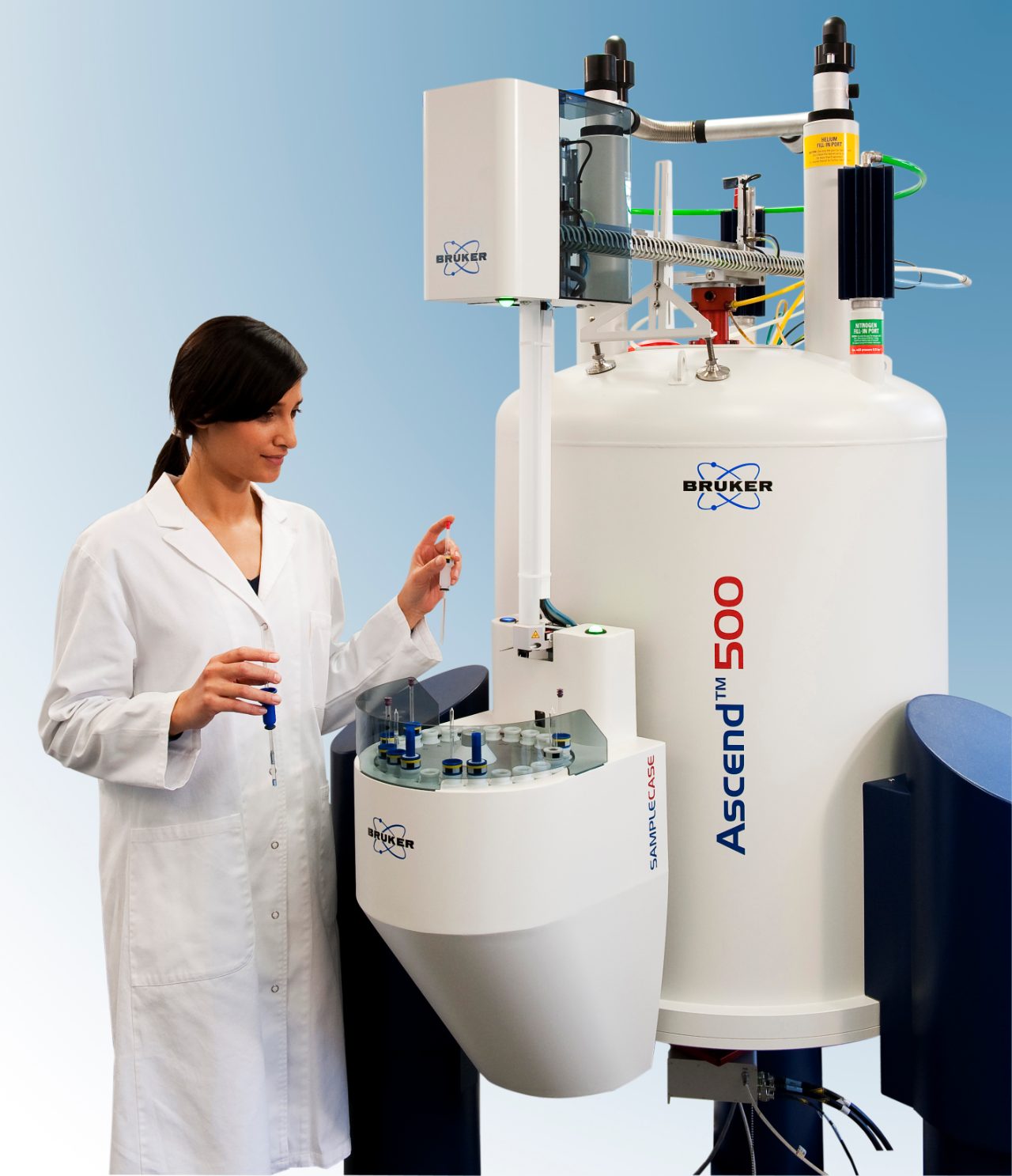

SampleCase™ is the first NMR automation solution that provides easy, safe and convenient access to fully-fledged NMR automation at user height. Ensuring simple random access automation without the need for steps or ladders, it also enables manual insertion and ejection of samples with the simple push of a button. The user-friendly system can be fitted to almost any Bruker NMR magnet.

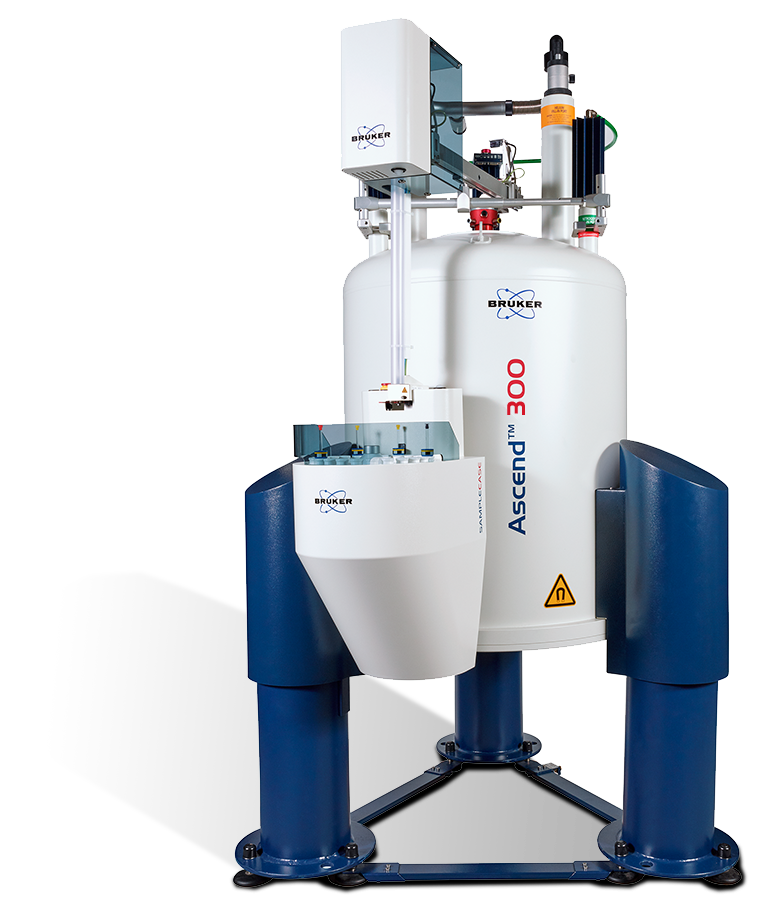

SampleCase is a random-access automation system that fits almost all shielded Bruker standard bore magnets from 300–900 MHz. The SampleCase mechanism is derived from Bruker’s well-proven, highly successful modern automation devices such as SampleXpress™ and SampleJet™.
Fully compatible with TopSpin™ and IconNMR™ software, it can be added to any modern NMR instrument equipped with AVII or AVIII consoles. SampleCase also provides direct access to the BST and thus is compatible with MAS or CryoFit accessory.
SampleCase is an automation accessory that not only offers safe and convenient sample access on routine NMR systems but is also an excellent choice for high field research instruments.

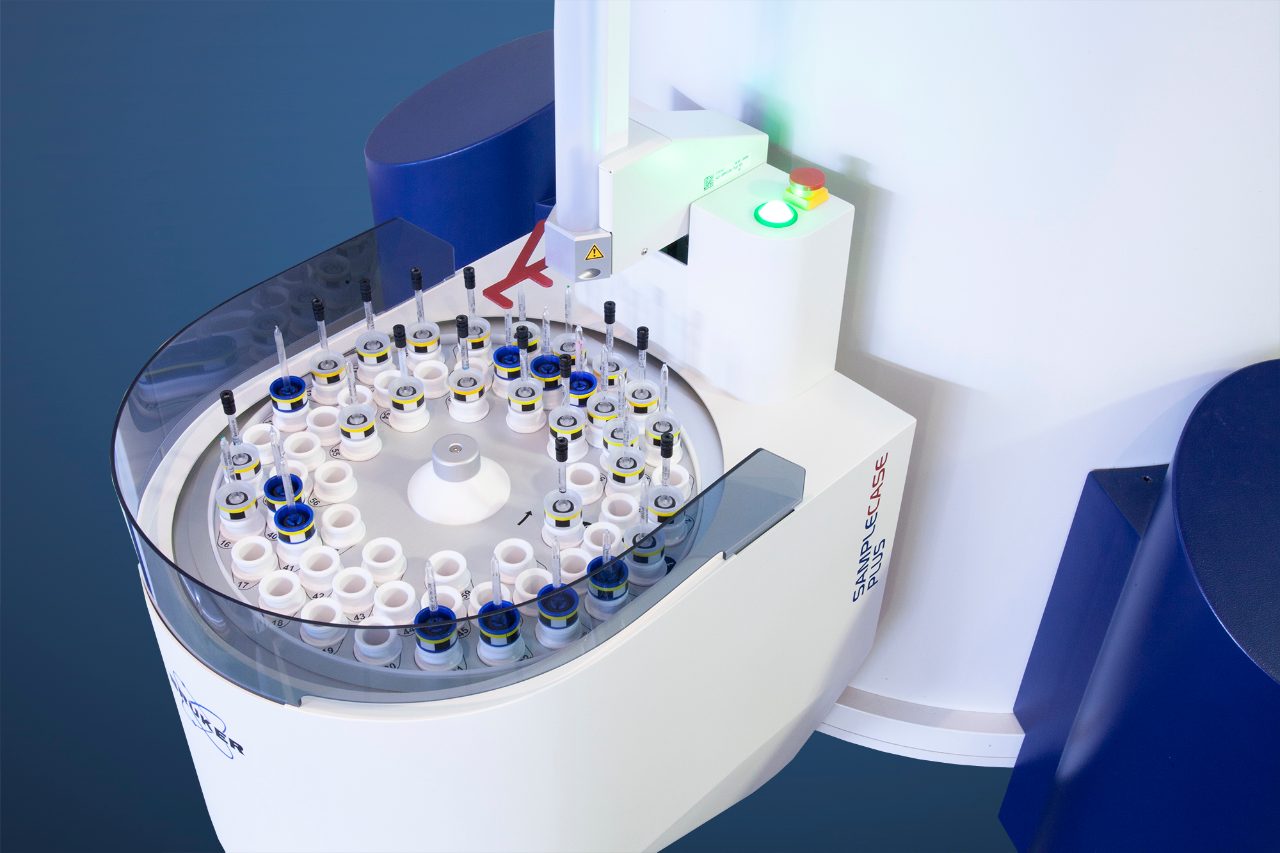

SampleCase Plus
Easy, efficient automation that can now accommodate 60 samples for higher throughput labs.

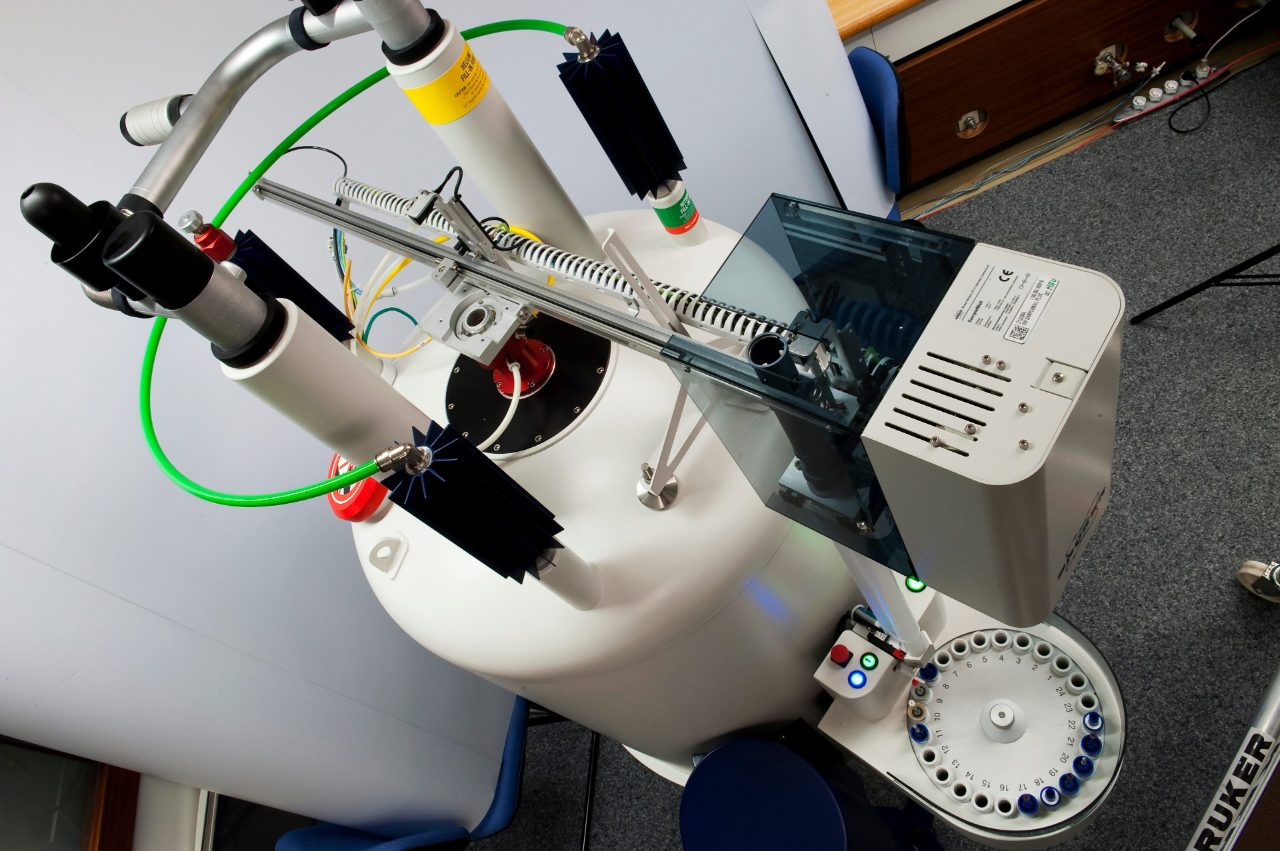

SampleCase Heated
SampleCase is now offered in a heated version, specially designed for work in polymer research. The SampleCase heated is capable of keeping up to 24 samples in the queue at temperatures of up to 125° C, thereby keeping polymers liquid and ready for measurement.
SampleCase Cooled
SampleCase cooled takes the proven concept of safe and easy NMR automation at user height to the next level. Providing a fridge-cold sample storage platform, it is now possible to also submit temperature sensitive samples like Protein- , RNA- or Biofluid solutions for subsequent automation runs in smaller batches. The SampleCase cooled can be installed on almost any Bruker NMR magnet.
Specifications
- Fits on almost any shielded Bruker magnet from 300 - 900 MHz (Contact your representative for more details)
- Push-button operation for manual sample insertion and ejection directly at the instrument.
- Compatible with all sample diameters from 1-10 mm
- Works with all sample tube length (including Shigemi tubes)
- Compatible with TopSpin™ and IconNMR™ software
- Compatible with AVANCE™ III HD and AvanceNeo consoles
- Compatible with all Bruker room temperature and CryoProbes
- Optional bar-code reader can be ordered with new system or retrofitted to existing system
- Uses spinners for pneumatic transfer
- The compressed air or nitrogen pressure requirement is standard: 5 bar and 100 normliter/min
- System traffic light displays status
- Vibration-free acquisition without RF interference
- Quick installation by Bruker service personnel
