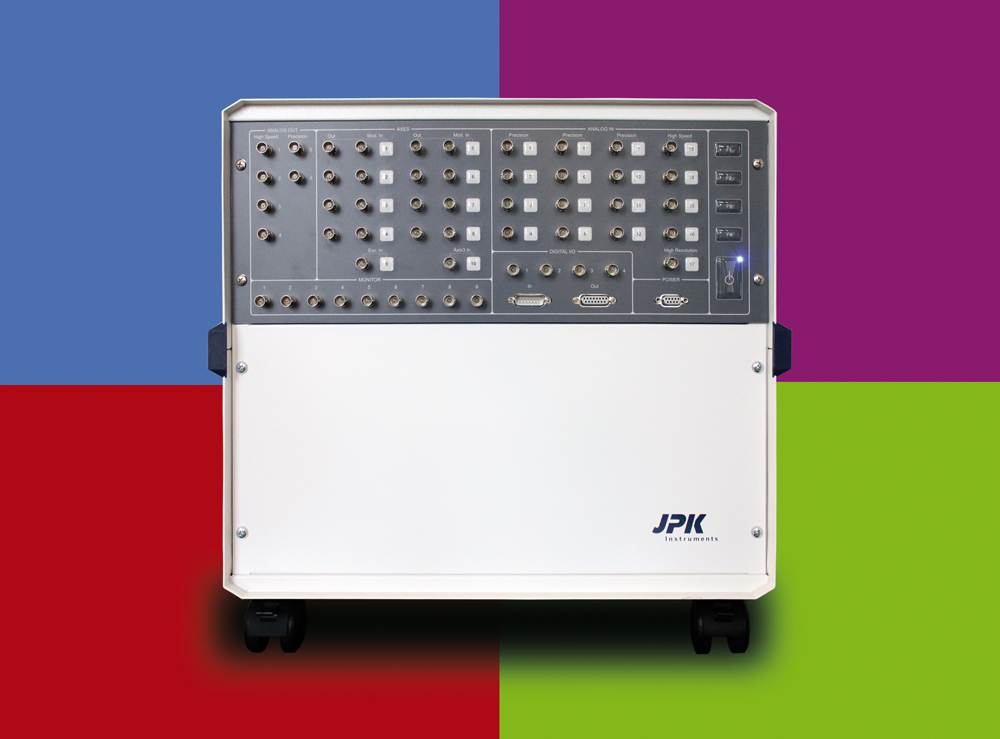

Vortis Combi Controller
One system for all nano-force applications: The combined high-end solution for JPK Scanning Probe Microscopes and Optical Tweezers systems.
- Simple conversion from SPM to OT control
- 4 high speed 16 bit ADC channels with 60 MHz
- 12 ADCs with 18 bit and 800 kHz
- 3 ADCs with 18 bit and 100 kHz (for scanning)
- 24 bit ultra precise ADC with 2.5 MHz
- 3 high speed channels 14 bit DAC and 120 MHz
- 8 channels 24 bit DAC with 400 kHz
- 2 channels 16 bit DAC and 1.6 MHz
- 1x 14 bit DDS with 240 MHz +/- 1 V @ 50 Ω
- 3 x 16 bit reference output up to 15 MHz
- 2 high speed lock-in amplifiers running with 60 MHz, frequency range from 1 kHz to 10 MHz
- 1 mid speed lock-in amplifiers with 800 kHz, frequency range up to 300 kHz
- Multiple feedback loops are implemented with fully configurable transfer function
- Phase-locked-loop (PLL) integrated for Frequency Modulation
- Thermal noise acquisition up to 3.25 MHz
- Software controlled digital filters
- High speed data capture
- 3 channels closed-loop control via capacitive sensors
- 3 channels -20 to +120 V scanner drive (4. channel optional)
Accessories to extend your BioAFM capabilities
Bruker offers an extensive range of BioAFM system add-ons, accessories, and modes to deliver maximum experimental and sample control, superior versatility, and enhanced useability. These options extend the range of applications and experiments supported by Bruker BioAFMs far beyond what is possible with any other BioAFM system on the market today.
Available options include optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions, and more.
Download our accessories handbook to learn more.
