Hydrogen Analyzer

the minispec mq-one Hydrogen Analyzer provides a precise solution to determine the combustion performance of fuels by measuring the hydrogen content according to ASTM D7171.

The quality of various fuel e.g. aviation fuel, petrol, combustion fuel can be measured witin a minute.

Calibration: Easy, Fast and Unique

Calibration of the minispec for percent hydrogen is usually accomplished with reference samples. Reference samples may be either production samples with percent hydrogen values known from a reference method (e.g. mass spectrometry) or pure hydrocarbons.

• „Rapid, non-destructive, solvent free
• QC/QA measurement
• All Official International Standard Methods supported (ASTM D 7171, ASTM D 3701 and ASTM D 4808)
• Easy calibration using a small number of commercially available compounds
• Minimum sample preparation
• High return on investment
• Excellent reproducibility
• Dedicated analyzer with perfectly adapted software

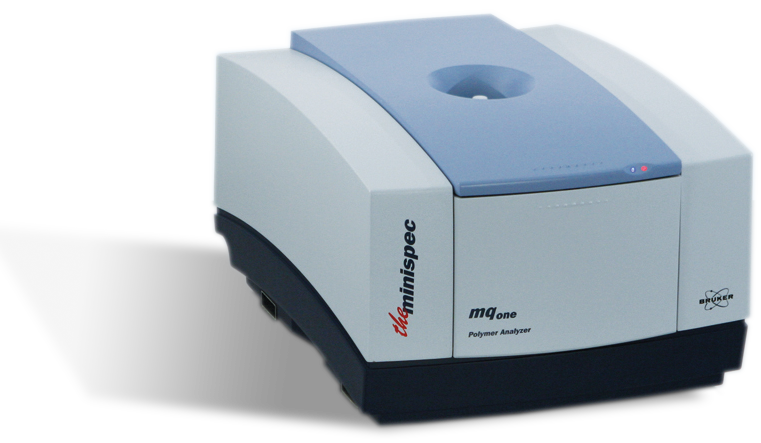

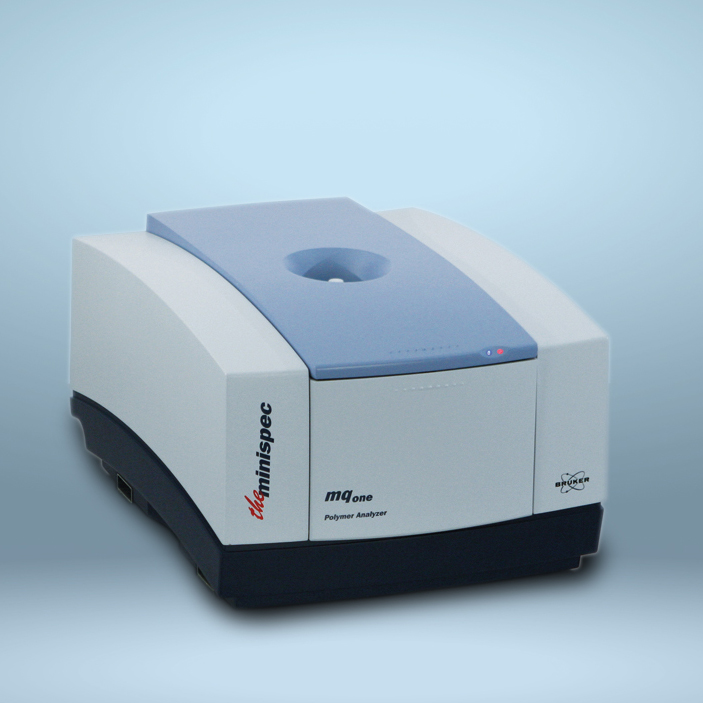

The minispec mq-one NMR method meets all demands of accuracy, precision, and speed.
minispec mq-one is as easy as winking:

• ASTM Method
• Easy calibration with commercialy available hydrocarbons
• Minimum Sample Preparation and easy measurement
• Excellent reproducibility
• Former continous Wave Systems are replaced by our mq-one Hydrogen Analyzer

minispec Applications in Petrochemical Industry

• Total hydrogen content in Coal
• Oil Content Determination in Wax / Paraffin
• Oil Content Determination in Oil Shale and Oil Sands

• Viscosity Determinations of Oils
• Relaxation Time Analysis on Rock Cores

Typical system configuration(s):

Jet fuel or Diesel (homogenous fractions / low viscosity liquids):

mq-one Hydrogen Analyzer

• Sample diameter: 18 mm
• Dedicated to hydrogen content application

minispec mq20

• Sample diameter: 18 mm
• „„Hydrogen content application

minispec mq10

• Sample diameter: 40 mm
• Hydrogen content application

„„Remark: For more heavy fractions, sometimes tempering and measuring the samples at higher temperature is reasonable, like for instance at 50 °C. For this application, variable temperature probes are available.

The mq-one Analyzer comes in a package with:

• minispec Plus Software
• 18 mm Ø glass tubes
• 18 mm Ø PTFE plugs
• Sample Preparation Block

minispec Plus Software for mq-one:

• User friendly, multi-lingual and 21CFRPart11 compliant software
• User rights for administration (full access), calibration & measurement and measurement only
• Pre-defined method for hydrogen content determination
