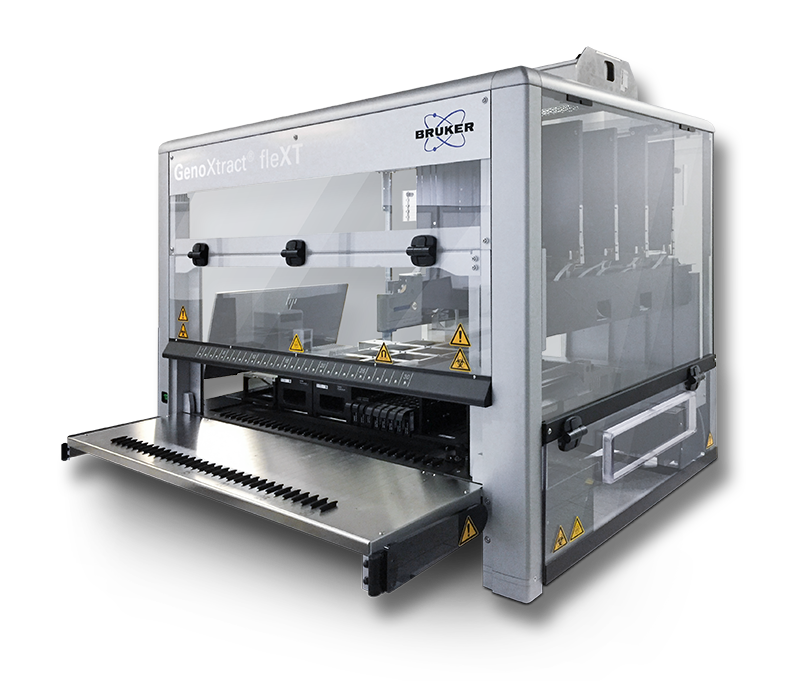

GenoXtract® fleXT
Minimum hands-on, maximum walk-away time
GenoXtract® fleXT is a reliable, automated system for extraction and PCR setup, requiring minimal hands-on preparation. Barcode-supported robotic loading and sorting significantly reduces manual intervention. PCR setup is possible with dedicated FluoroType® and LiquidArray® kits*, for a convenient walk-away solution tailored to the dynamic laboratory environment. Complete the workflow with FluoroCycler®XT and FluoroSoftware® XT-IVD with minimal hands-on intervention.
* Please contact your local representative for the current list of validated assays
Features
External loading dock: Loading barcoded samples and deck tools from outside the device to avoid contamination.
Barcode scanning: Tracks samples throughout the process all the way to PCR analysis while minimizing potential for human error.
Robotic sorting: Ensures exact positioning without manual intervention.
Easy to use IVD software*: Clear, easy to follow wizard-based software for fast and easy setup and reliable results.
Liquid handling: Advanced pipette tips for liquid level detection and air displacement pipetting provides continuous Total Aspiration and Dispense Monitoring (TADM), maximizing accuracy throughout the process.
Directly compatible with FluoroCycler® XT: Following PCR setup, minimal hands-on time needed for PCR analysis.
* Please contact your local representative for the current list of validated reagent/software combinations
Benefits
Walk-away extraction and PCR setup automation: Minimal and easy workflow setup to maximize your hands-off time
Accurate and efficient: Parallel and highly reliable processing of all samples under continuous deviation monitoring control
Safe and clean: Load outside the pipetting area to avoid contamination and allow ergonomic interaction
Specifications
- Number of Samples: Up to 96 Samples
- Pipetting: 8 pipetting channels
- Liquid handling: Continuous TADM
- Extraction: 2h 25min for 96 samples + 18 min for PCR Setup (95 samples + 1 control)
- Software: Microlab STARlet IVD-R Software*, GenoXtract fleXT® Software and WorklistGenerator*
- Dimension (W×H×D):
1124 × 903 × 795 mm [without loading tray]
1124 × 903 × 1010 mm [with loading tray] - Weight: approx. 140 kg
