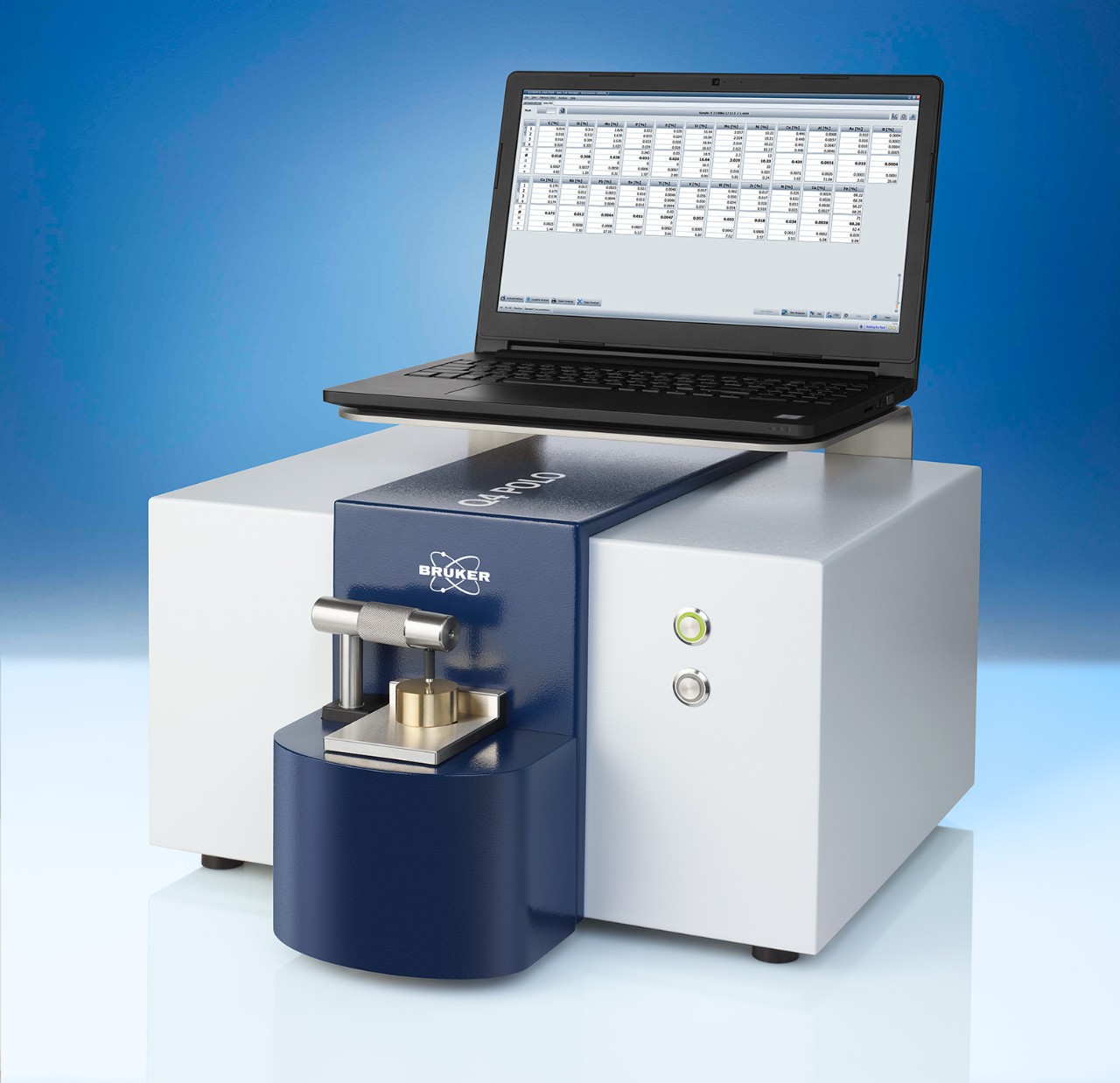

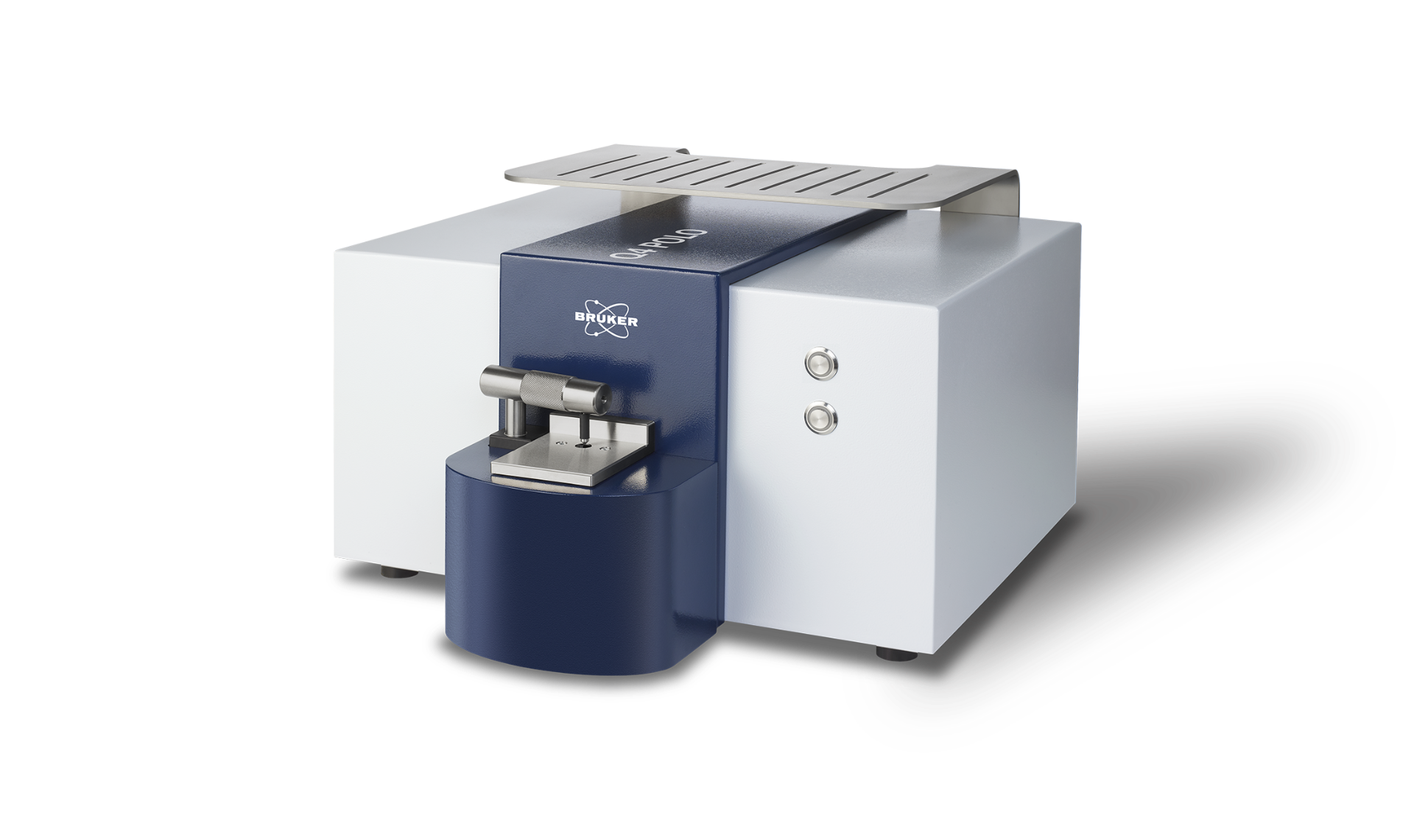

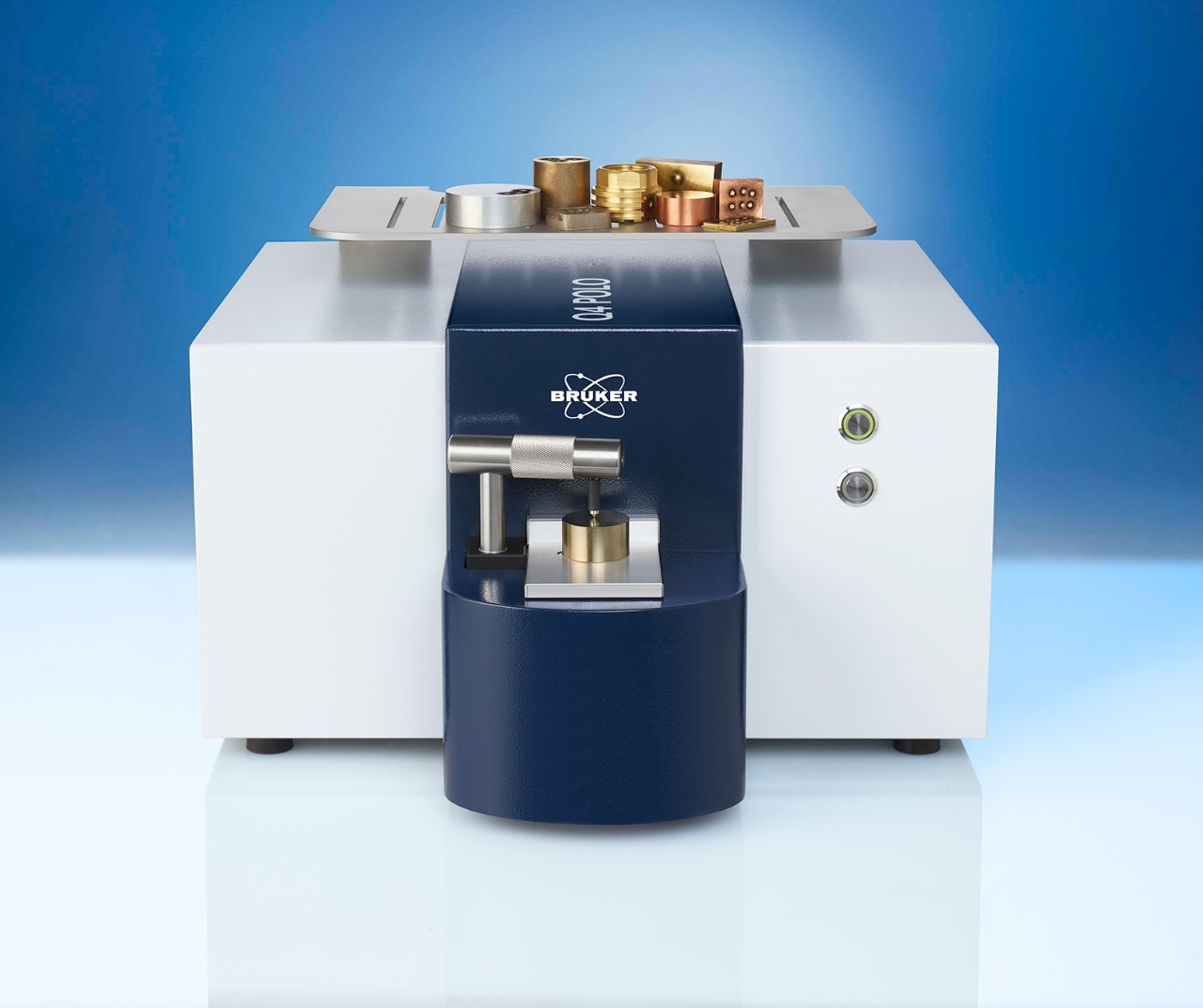

Q4 POLO
The Little Giant in Spark-OES
Complete Elemental Coverage, Wide Calibration Ranges
High Precision Metal Analysis with low cost of ownership and small footprint
Q4 POLO - Little Space, Mighty Performance
Numerous innovations have been introduced in the Q4 POLO to create a spark spectrometer that is second to none. In addition to superior analytical performance for a full range of elements, the Q4 POLO enables applications previously not addressable by such compact instruments:
- Outstanding precision, particularly on light elements
- Excellent results in the challenging analysis of cast iron
- Reliable analysis of nitrogen at low ppm levels in low alloyed steels
- Analysis of oxygen in copper
Just as impressive as the results achieved by the Q4 POLO is its incredible long-term stability. The absence of thermal- and contamination-based drifts reduces the need for cleaning and recalibrations, leading to stable results around the clock.
The new Q4 POLO is the ready-to-analyze solution from day one, covering all relevant elements and wide concentration ranges. Each base metal package includes all dedicated alloy groups, calibrations, and standardization samples. At the same time, the Q4 POLO provides high uptime, low maintenance, and hassle-free operation.
Key Benefits

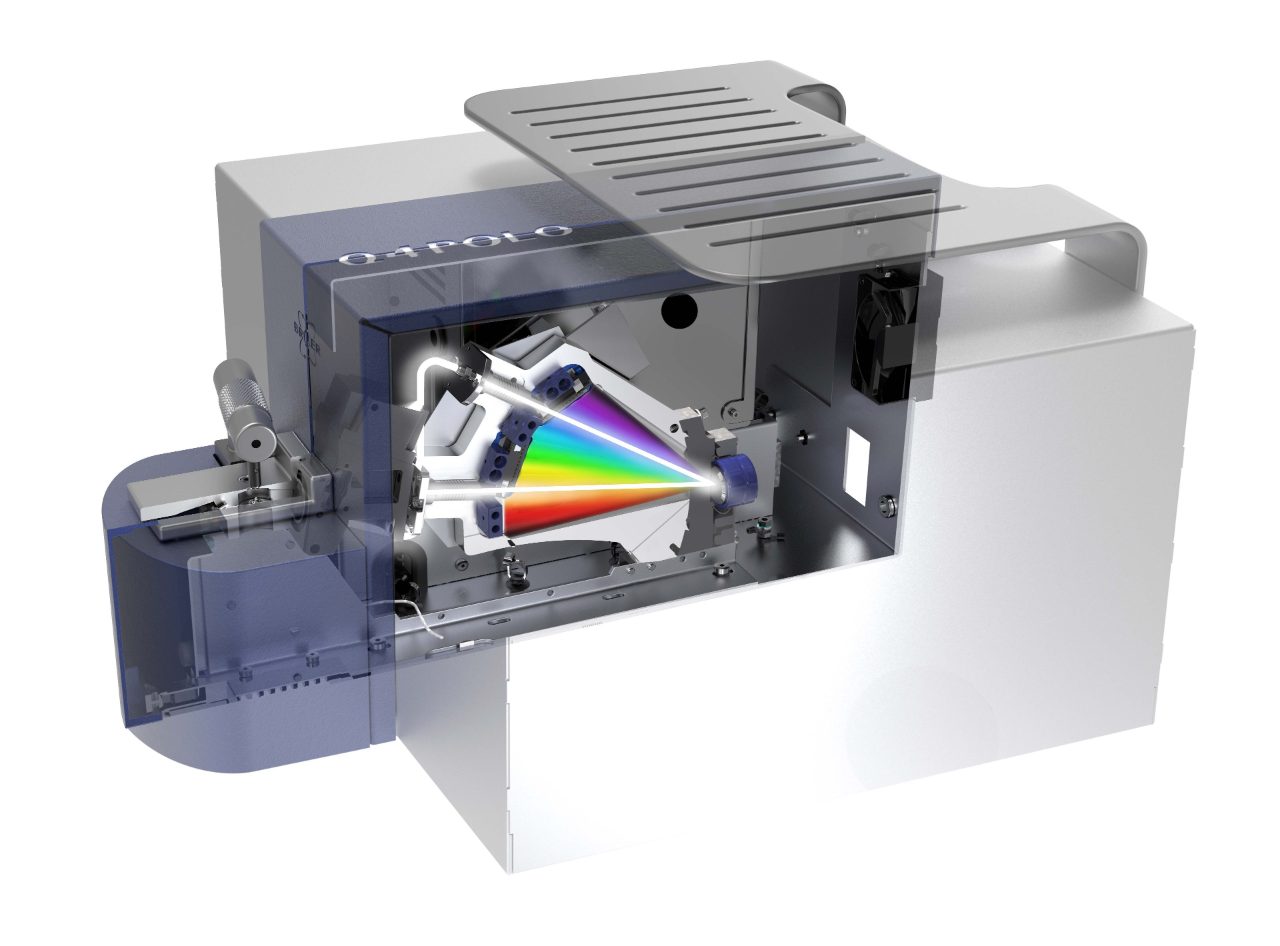

- MultiVision™ optics with electromagnetic light junction covering the full elemental range with superior performance and small footprint
- AAC™ and ArgonShield™ result in incredible long-term stability without increasing argon gas consumption
- The new active sensing SmartSpark™ source is fully digital and equipped with detection of non-energetic discharges for increased precision and long-term stability
- ELEMENTAL.SUITE delivers highest functionality combined with ease-of-use for information @ your fingertips.
Why do I need spark-OES?
OES gives you an ultrafast analysis of your solid metal sample without complications. All relevant elements are simultaniously determined.
Q4 POLO Specification
| Specification | Benefit | |
Spark Stand
|
Low maintenance spark stand with co-axial argon flow,
|
Minimized argon consumption, easy analysis of wires
|
| Smart Spark | Digital spark source for stable spark generation up to 1,000 Hz; active sensing of non-energetic discharges |
Improved precision and long-term stability with highest operational safety |
Optics
|
λ: 130 - 785 nm, argon purged, multiple un-coated linear array detectors with lowest dark current
|
Access to all elements, low operational costs
|
| Gas Supply with Argon-Saver Mode |
Argon ≥ 99.998%purity2) (Ar 4.8) 3 bar (± 10%) supply pressure Copper tubing (6 mm o.d.) with Swagelok® fitting |
Good performance with standard argon purity, dedicated argon saver mode for lowest operational costs |
| Noise Emission | < 55 dB(A) during measurement3) | Enjoy the silence |
| Software | ELEMENTAL.SUITE V3.2 or higher | Future save, intuitive productivity, optional material database with > 350 k alloys integrated |
| Electrical Data | 100 - 240 VAC (±10%), 50 - 60 Hz 10 - 16 A (240 V), slow blow fuse 200 VA (max), 20 VA standby, typically: 95W(@ 230 VAC) during measurement |
Compatible with all worldwide power and current configurations |
| Dimensions & Weights | 49 x 57 x 28.4 cm (W x D x H), ~36 kg | |
| 1) US8891082B2, EP2537011B1 2) Argon 5.0 or purifier recommended for trace nitrogen analysis 3) Sample covering hole in sample stage completely |
||
