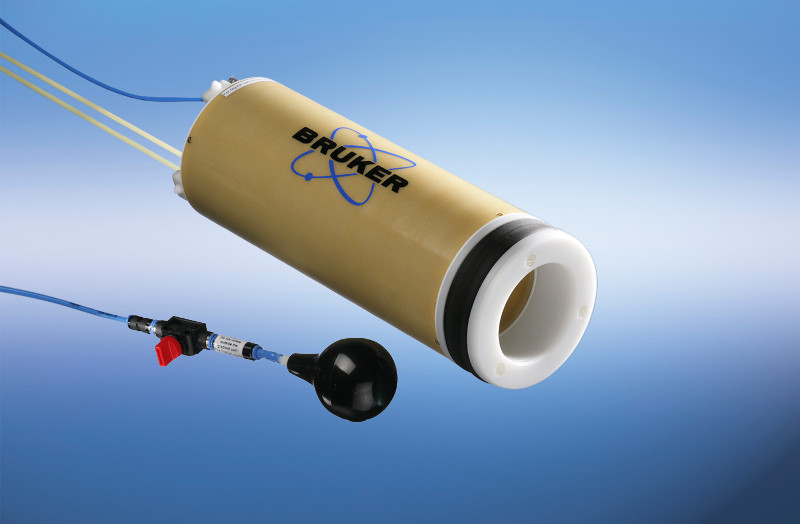

Volume Coils
As a basis for imaging experiments, transmit volume coils are designed to provide optimal homogeneity in combination with highest SNR. For experiments requiring homogenous signal reception throughout a larger area of the animal or material to be investigated, Bruker provides circularly polarized 1H volume coils. These come with inner diameters ranging from 15 mm for material research to 198 mm for studies on larger preclinical species. Coils with larger inner diameters can also be used when peripheral instrumentation is required for the experiment procedure.
Many of the larger coils have active detuning capabilities to facilitate cross-coil configurations. These coils, which are ideally used for transmission only, are optimized to avoid any residual RF coupling between the coils of the configuration. Phased array volume coils allow for acceleration in time- sensitive experiments. PET-optimized volume coils and linearly polarized X-nuclei volume coils, which are available for practically all nuclei.
Volume Coils
- ¹H/²H transmit-receive volume coil with inner diameter 40 mm
- ¹H/²H transmit-receive volume coil with inner diameter 72 mm
- ¹H transmit-receive volume coil with inner diameter 15 mm
- ¹H transmit-receive volume coil with inner diameter 23 mm
- ¹H transmit-receive volume coil with inner diameter 25 mm
- ¹H transmit-receive volume coil with inner diameter 30 mm
- ¹H transmit-receive volume coil with inner diameter 35 mm
- ¹H transmit-receive volume coil with inner diameter 40 mm
- ¹H transmit-receive volume coil with inner diameter 50 mm
- ¹H transmit-receive volume coil with inner diameter 60 mm
- ¹H transmit-receive volume coil with inner diameter 72 mm
Volume Coils with Active Detuning
- ¹H transmit-receive volume coil with active detuning with inner diameter 72 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 82 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 86 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 154 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 197 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 198 mm
X-nuclei Volume Coils
- ¹H/¹³C-²³Na transmit-receive volume coil with inner diameter 32 mm
- ¹H/¹³C transmit-receive volume coil with inner diameter 40 mm
- ¹H/¹³C transmit-receive volume coil with inner diameter 72 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 23 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 35 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 40 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 72 mm
- ¹H/²³Na transmit-receive volume coil with inner diameter 40 mm
- ¹H/²³Na transmit-receive volume coil with inner diameter 72 mm
- ¹H/³¹P transmit-receive volume coil with inner diameter 40 mm
- ¹H/³¹1P transmit-receive volume coil with inner diameter 72 mm
