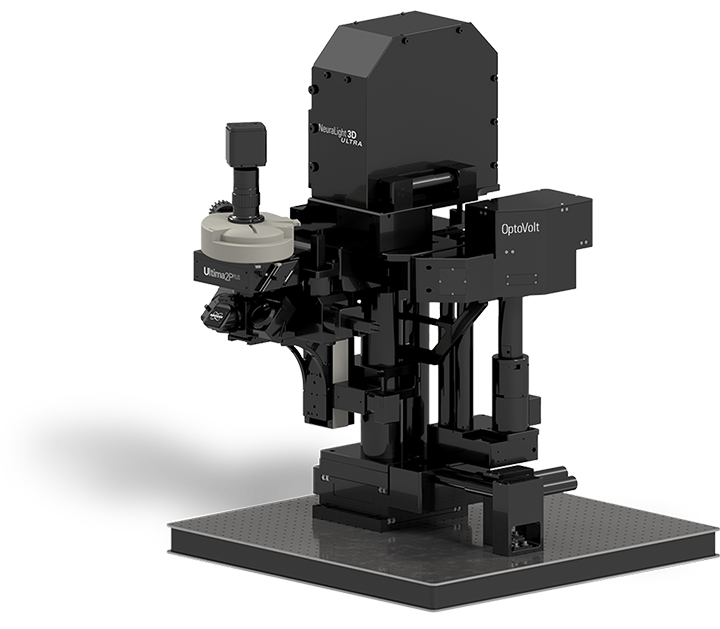

OptoVolt Module

Bruker's OptoVolt™ Module for Ultima 2Pplus multiphoton microscopes delivers unprecedented kilohertz imaging rates to enable voltage imaging neural research. It provides a significant improvement over standard imaging techniques by capturing electrical dynamics at up to 1,000 frames per second and providing software-selectable multiplication modes. These accelerated imaging speeds allow neuroscientists to capture millisecond dynamics of cell-to-cell neural communication, and with the emergence of fluorescent voltage indicators, it is even possible to measure neural activity with higher temporal resolution than fluorescent calcium indicators have allowed.

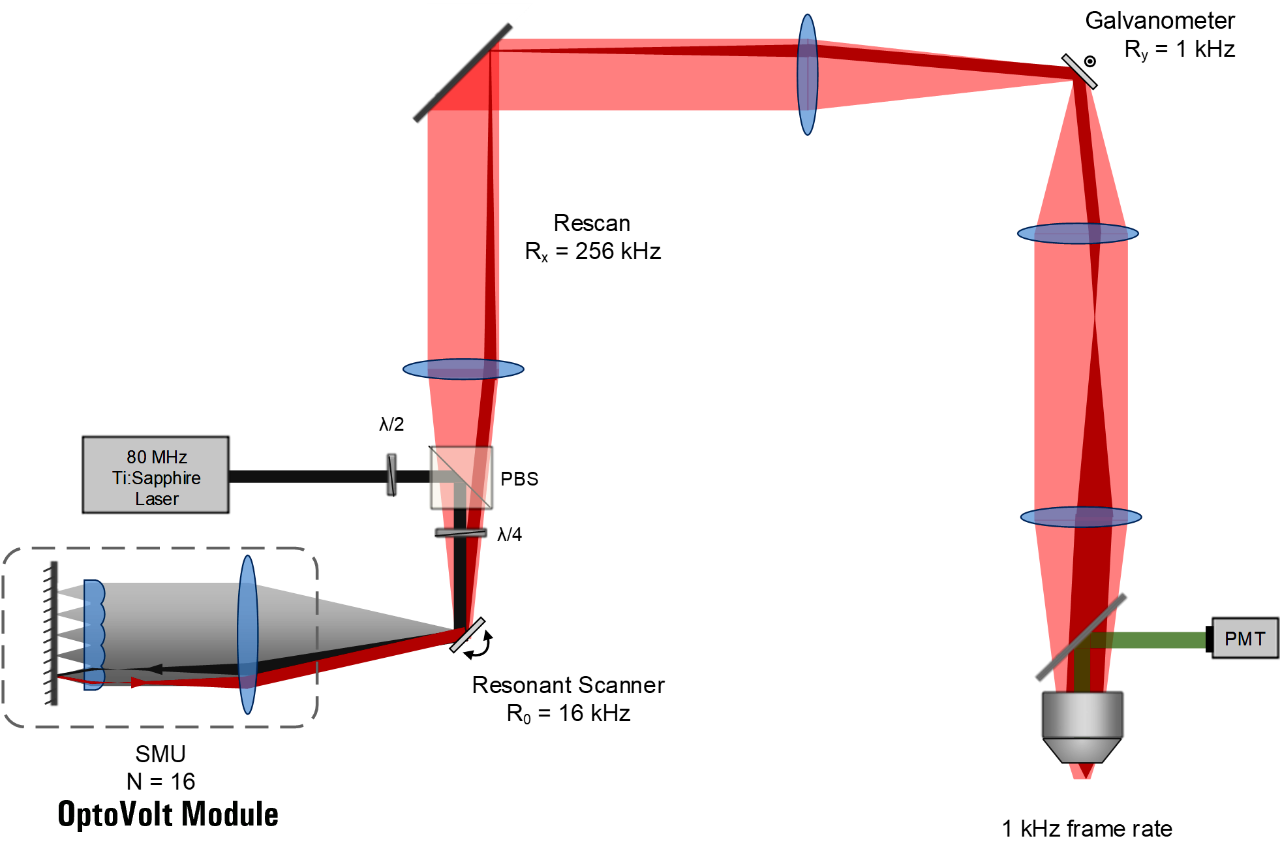

OptoVolt contains multiplication optics that re-route the resonant scanning beam for customized aspheric microlens arrays. It also leverages large detection optics for collecting scarce photons, in vivo and deep into tissue.

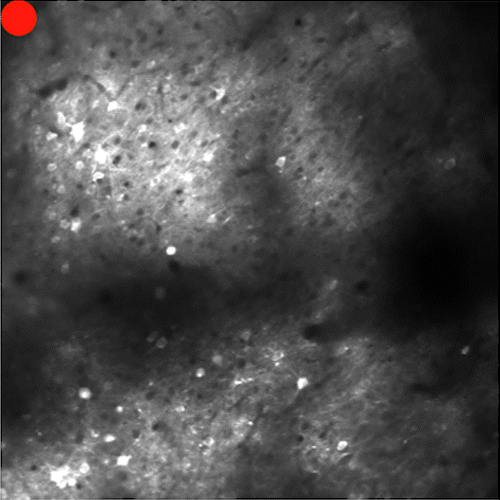

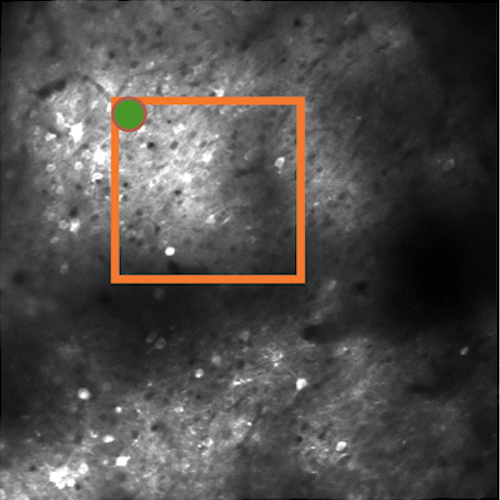

This module multiplies up the scan speed with the microlens array and the resulting multiplication factor is based on the number of microlenses scanned across. It is seamlessly integrated with the 2Pplus, and is selectable as a scanning mode for ease-of-use. This gives researchers fast and flexible imaging for a range of novel experiments, including single-cell electrophysiology and wide-field calcium imaging. Researchers can build upon their existing microscope system as their research develops.

The module leverages advanced voltage indicators, such as ASAP4 from Stanford University and JEDI-2P from Baylor College of Medicine, and retains the depth and resolution of traditional two-photon imaging while enabling flexible adjustments between speed and signal intensity. Its design provides fast, efficient software switching between traditional Galvo, resonant, and OptoVolt modes for flexible control over any experiment.

OptoVolt can be integrated with the NeuraLight 3D Ultra SLM for simultaneous 3D optogenetic manipulation and voltage imaging, facilitating comprehensive all-optical functional mapping of neural circuits. This capability allows researchers to visualize action potentials and sub-threshold membrane potentials across large neural networks, bridging the gap between single-cell electrophysiology and wide-field calcium imaging.

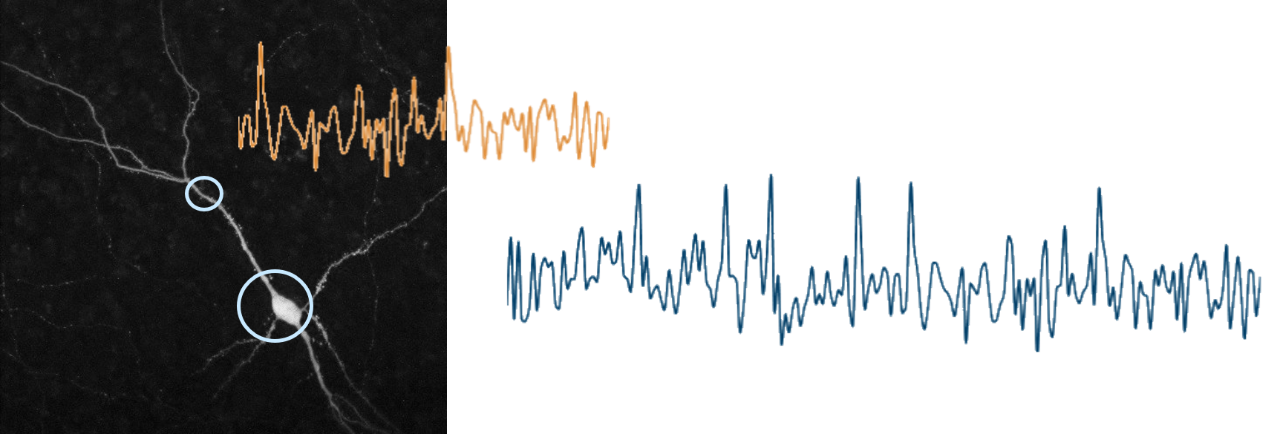

OptoVolt is optimized for voltage imaging but is also compatible with calcium, vascular, and neurotransmitter imaging. The resulting Tiff movies are suitable for motion correction, trace extraction, and filtering.
