Patented optical system with AAC
Incoming material inspection made easy

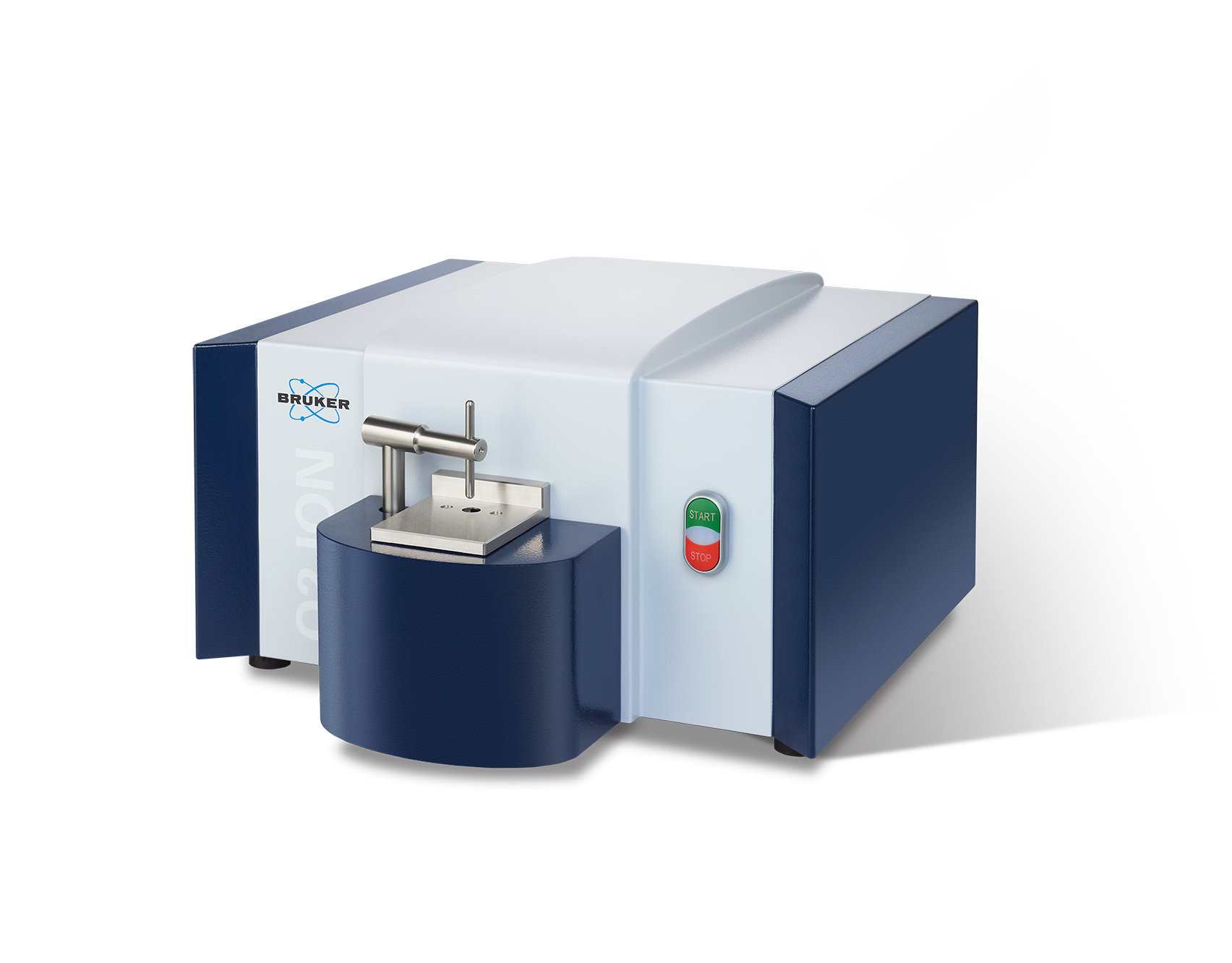

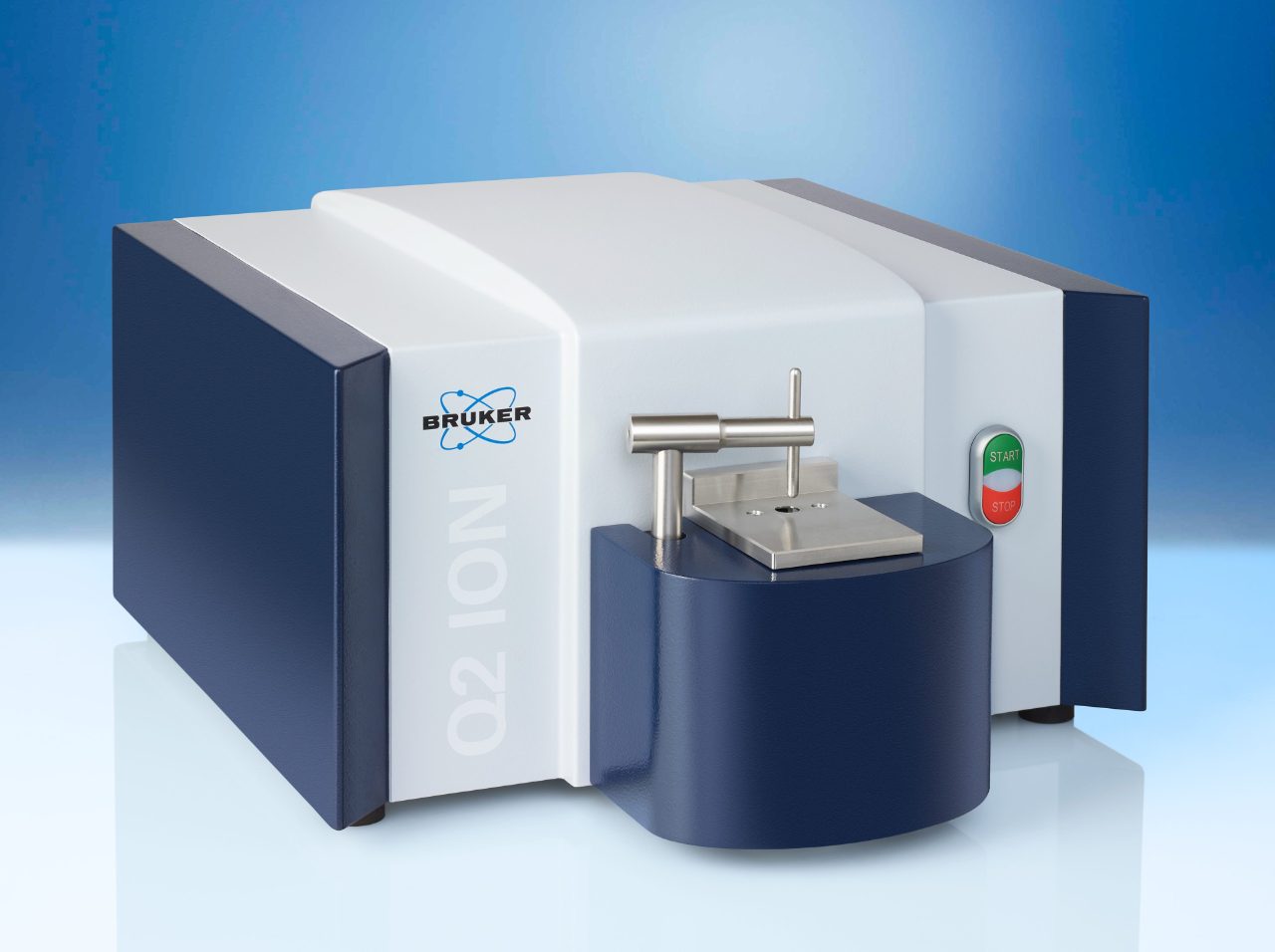

The new generation of spark spectrometer Q2 ION elevates metal analysis into new levels of simplicity and ease-of-use. Today it is one of the smallest and lightest ultra-compact spark emission spectrometer for metal analysis available. It is a versatile multi-matrix system for comprehensive incoming material inspection and quality assurance of metal alloys. Its primary applications and metal matrices include copper, aluminum and iron at smaller foundries, inspection companies, metal recycling and metal fabricators. An affordable price and exceptional low operational costs make this spectrometer the ideal tool for smaller and medium-size businesses.
OES is the work horse in metal analysis par excellence. It gives you fast analysis of your solid metal samples including positive material identification, alloy grades and material sorting. The Q2 ION perfectly fits the requirements of foundries, fabricators, metal recyclers, warehouses and metal processing plants by combining ease-of-use with easy portability and low operation costs.

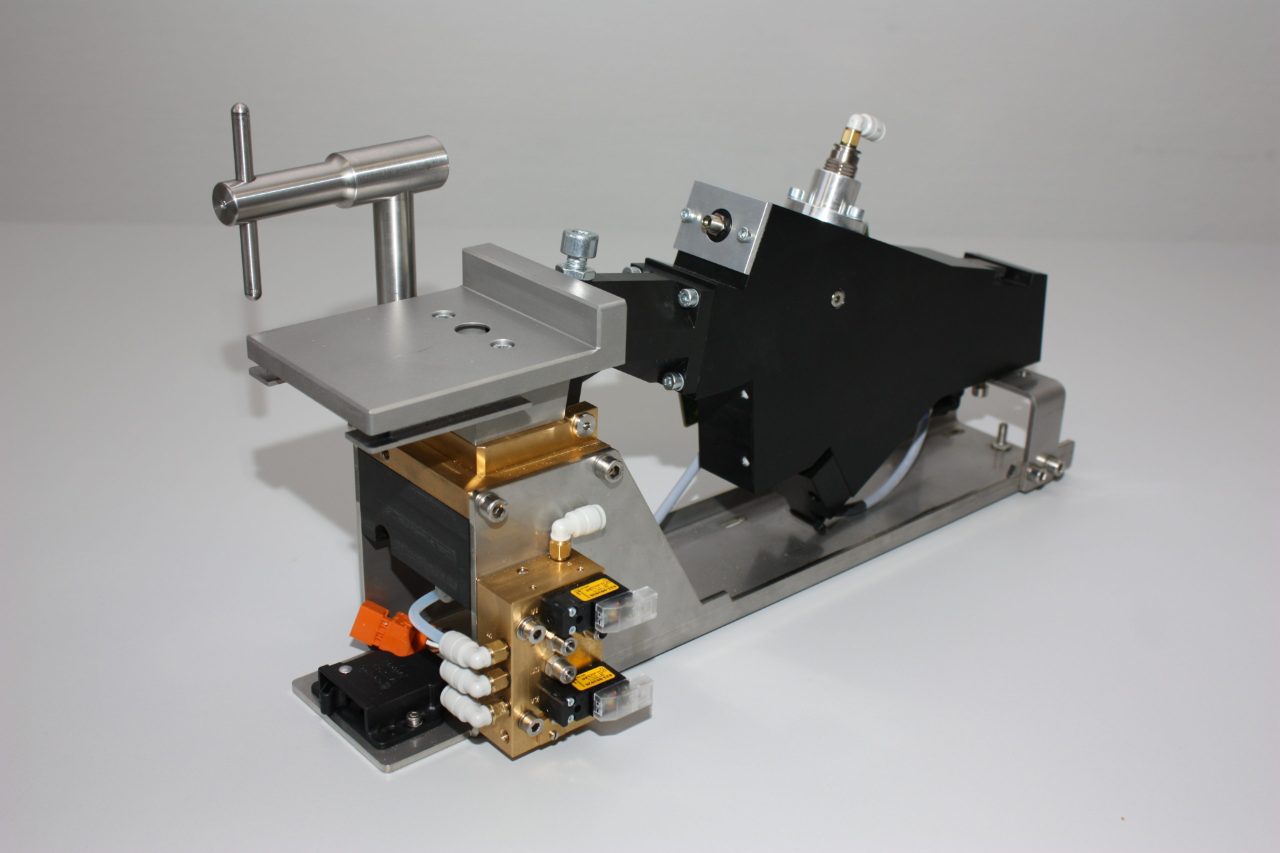

Optical System |

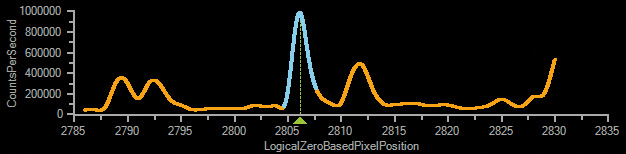

Un-coated CCD detector with lowest dark current Flat field grating Argon purged for best transparency ClearSpectrum technology for advanced spectra deconvolution Automatic Ambient Compensation (AAC) for operation between 10 and 45 °C (50 and 113 °F) |
|
Source Generator |
Maintenance-free, two phase PWM generator Frequency 50 to 1000 Hz Spark and arc-like discharges from 10 μs to 2 ms |
|

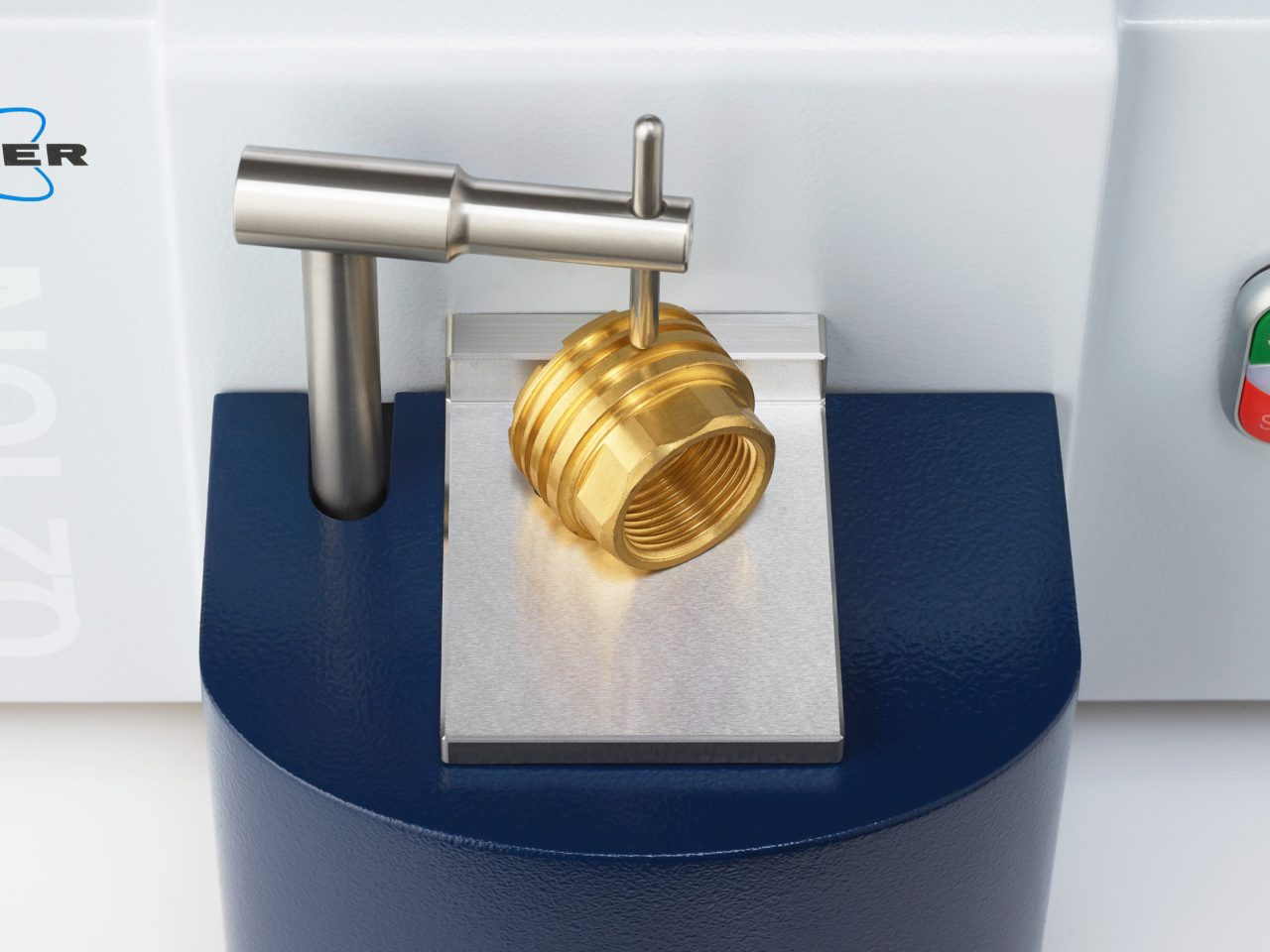

Sparkstand |
Nearly maintenance-free Low Argon consumption during measurement Argon quality 4.8 specified for spectrometry or better |
|
ELEMENTAL.SUITE |
Intuitive Windows® based software for simple routine operation Various user levels for secure and task-specific operations ELEMENTAL.SUITE software including analysis database and interfaces to MS Office Grade Library functions |
|
Analytical Solution Packages (ASPs) |
Different matrix calibration packages available ASPs cover all major elements and alloy groups Upgradable for future expansion |
|
Electrical Data |
100 to 240 V (50/60 Hz) 200 W during measurement, 50 W during standby 16 A (240 V) or 25 A (100 V) slow blow fuse |
|
Dimensions & Weight |
Width 440 mm (17 inch) Height 220 mm (9 inch) Depth 390 mm (15 inch) Weight ~ 19 kg (~ 42 lbs) |
|
Environmental conditions (operation) |
Temperature 10 - 45 °C (50 - 113 °F) Humidity 10 - 90 %, no condensation |
|
Available accessories | Wire adapter, tube adapter Sample preparation Carrying case Notebook or desktop PC |
