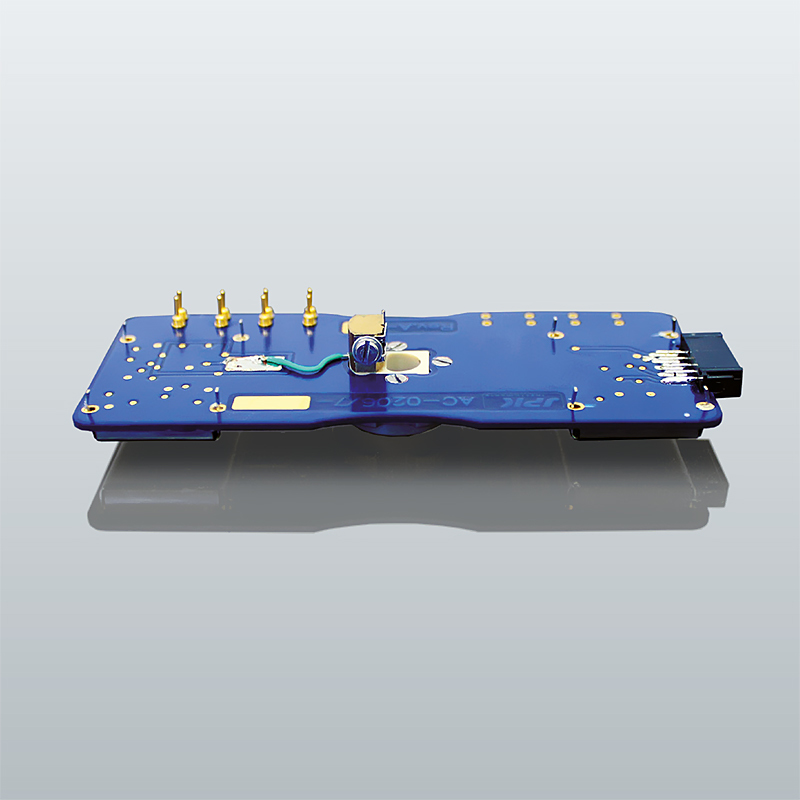

Scanning Tunneling Microscopy (STM) Module
Tip-bias wire holder with integrated current amplifier circuit and automatic sample grounding.
- Tip holder for 0.25 mm or 0.5 mm wire probes sample holder for conductive samples
- (optional transparent sample holder) Optimized cantilever exchange tool
- Bias Voltage +/-10 V
- Current Range: +/-100 nA, +/-10 nA
- Gain: 100 V/µA
- Software interface
- Compatible with all stages except Cryo- and StretchingStage
